Product Name
LiFePO4 battery 48V 20AH with alloy case for electric bike scooter motorcycle tuk tuk
48V 20Ah consists of many 26650 cells mounted together in a honeycomb structure and spot welded together and shrink wrapped with 1 layer of PVC wrap and Plug-and-play design of portable metal case for extra padding.
Specification
-
High Power LiFePO4 48V 20AH battery pack for 1600W 2000W system
-
48 volt 20Ah = 960 watt hours
-
35amp continuous 110amp burst BMS
-
Configuration: high quality 26650 battery frame with Retardant and Fireproof
-
Case: 1 layer of PVC wrap and Plug-and-play design of portable metal case
-
Standard connectors with customized 40A fuse for discharging
-
Cannon connector for charging
-
Light Weight: 10kg
-
Battery Dimensions: 296*188*110mm

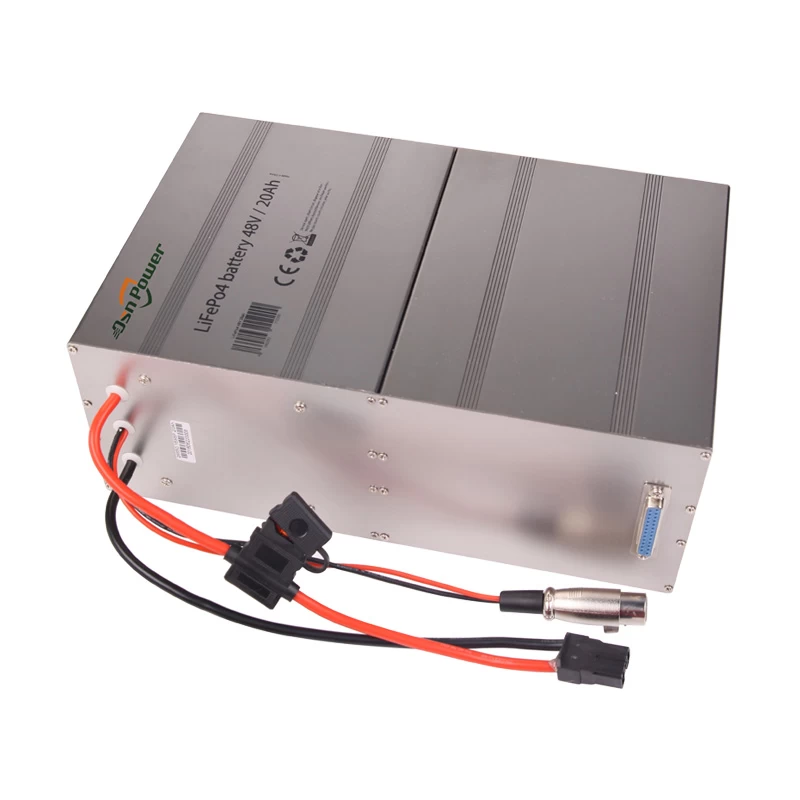

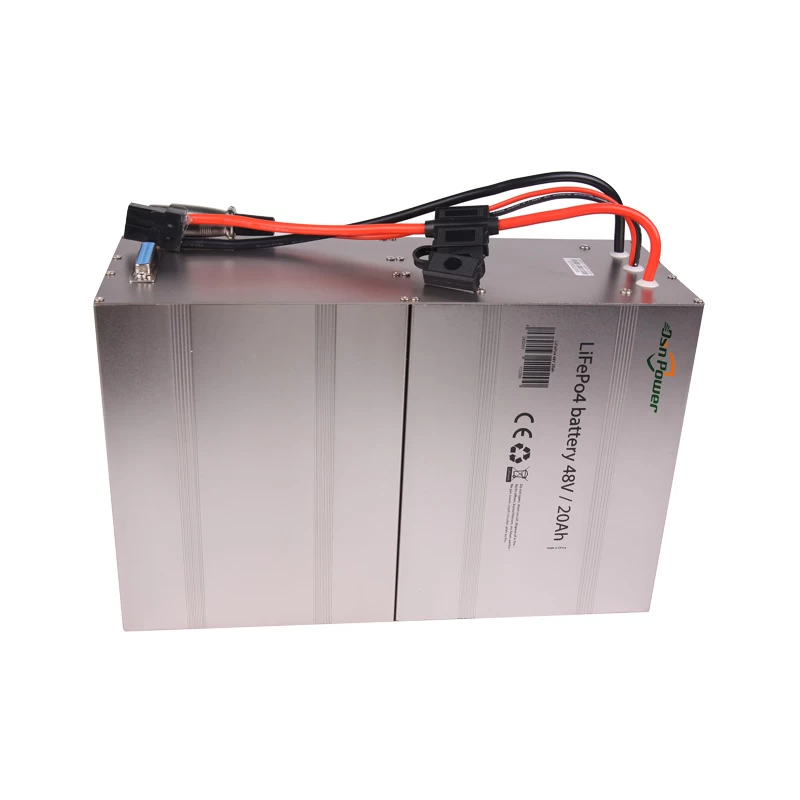

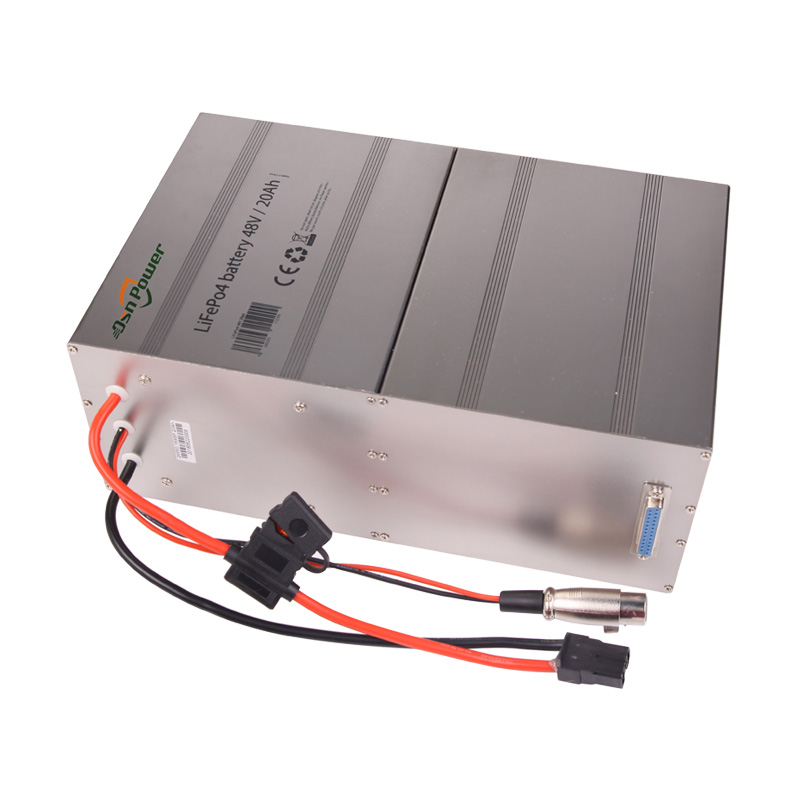

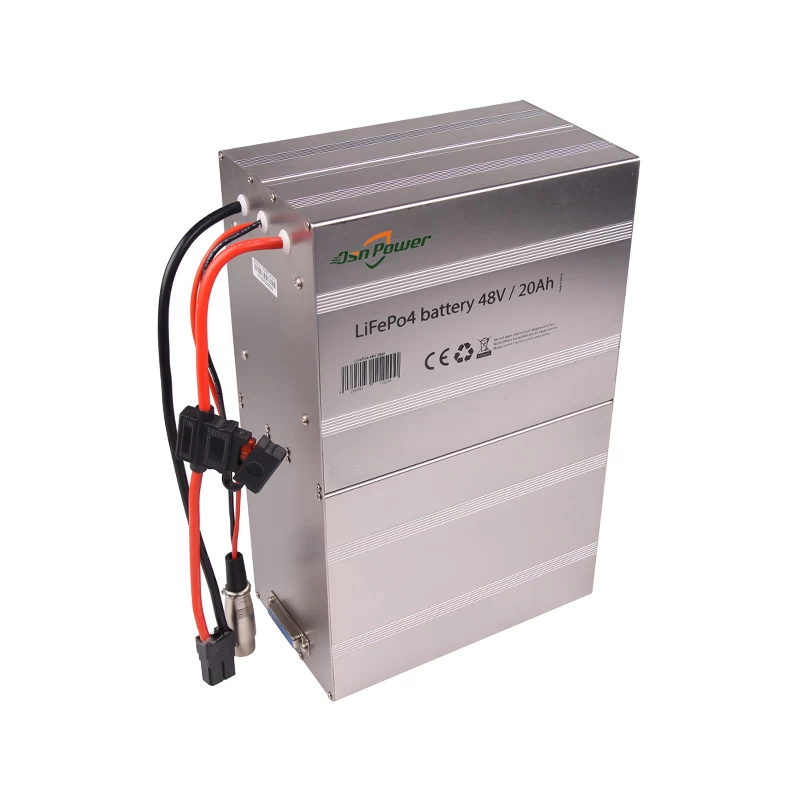

Photo of LiFePO4 battery 48V 20AH with alloy case for electric bike scooter motorcycle
tuk tuk
More Features
Cell INSIDE:
OSN power Lithium iron phosphate 3.2V 26650 battery cell with 3C constant discharge rate
BMS: 35Amps
This pack comes with a very advanced BMS (battery management system) with Texas Instruments IC inside which protects the pack from damage during charge and discharge. This BMS also has temperature protection to keep the pack from getting too hot.
It is a high power BMS which will allow the pack to put out 35amps continuous and 70amp bursts ( although running this much power will drastically reduce packs life expectancy. so we recommend to not run your battery too hard if you expect it to last over a couple hundred charges.
TECHNIQUES:
Automatic spot-welding techniques;
Exquisite workmanship
QC (Quality Control):
Automatic testing for performances of battery packs before delivery;
Each battery pack with unique series number and barcode for traceablity

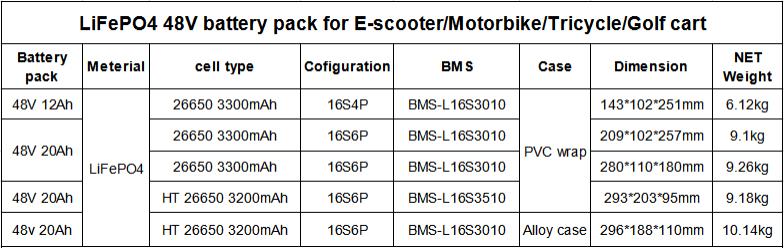

Related scooter battery list
More info:
OSN Power is known for our scooter Battery packs made for 18650 cells at affordable
price.
Most of our packs are made up of authentic Grade A 18650 battery cells made in Korea or
Japan. Meanwhile we use top quality Chinese cells made with the best BMS and the best
ingredients too.We use state of the art BMS with temp control to keep your battery as
safe as possible.
More info.please see all products and contact Jenny:service@osnpower.com
