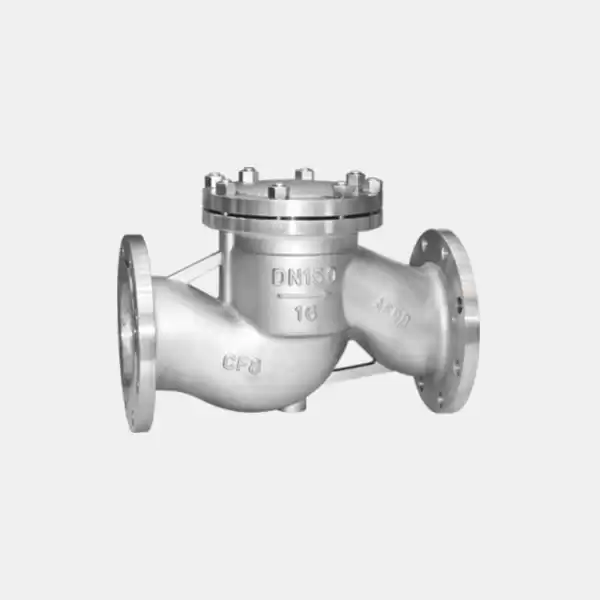

Lift Check Valve DN150 PN16 CF8

DIN3356 Lift Check Valve

DN150, PN16, CF8, F304+STL

Manufacture STAVAL Factory Offers.

BoreFull Bore
End ConnectionBW, Flange
ConstructionBolt / Weld Bonnet,Full Open,Internal/External Hinge
Material RangeCarbon Steel,Stainless Steel,Alloy Steel,Bronze,Cast Iron
Pressure Range150LB ~ 2500LB (PN16 ~ PN420)
Size Range2Inch ~ 60Inch (DN50 ~ DN1000)
Working Temp. -196°C to +600°C

Facebook Twitter Pinterest LinkedIn 分享

Description

Key Specification

Type	Lift Check Valve
Size	DN150
Pressure	PN16
Construction	Bolt Bonnet, Full Bore
Connection	RF End
Body Material	A351 CF8+STL
Disc Material	A182 F304
Spring	SS304
Cover Material	A182 F304
Bolt/Nut	B8/8
Design Standard	DIN 3356
Face to Face Dimension	DIN3202-F2
End Connection	DIN 2534
Inspection & Test Std.	EN12266-1/2
Temperature Range	-29℃~+450℃
Medium	Oil, Water, Gas

EN10204 3.1 Certificate Issued By STAVAL

Inspection Report Issued By STAVAL
