Model
|
XC-MTB65024
|
XC-MTB27.0
|
XC-MTB2930
|
|

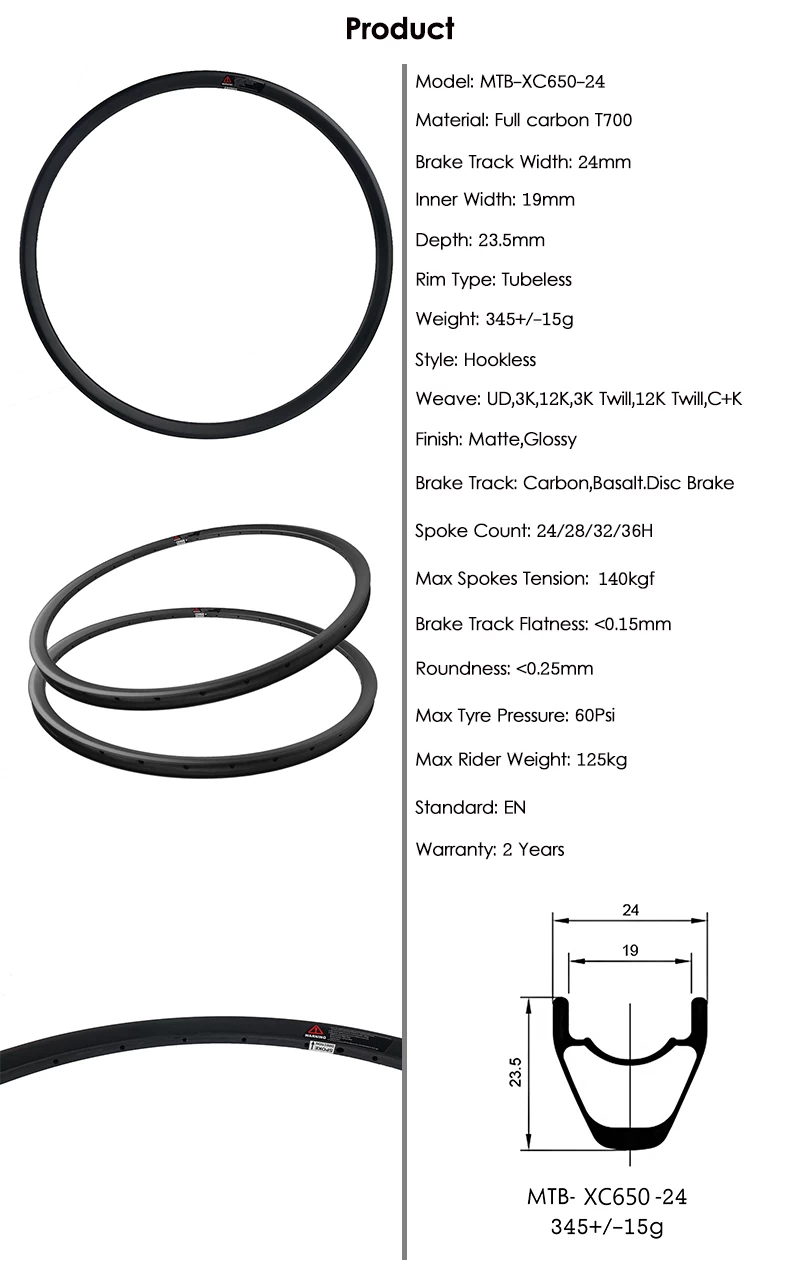

Sectional Drawing
|
|
|
|
|
Material
|
650
|
650
|
650
|
|
Inner/Out Width
|
19mm/24mm
|
22mm/27mm
|
24.5mm/30mm
|
|
Depth
|
23.5mm
|
23mm
|
23.5mm
|
|
Rim Type
|
Tubeless
|
Tubeless
|
Tubeless
|
|
Brake System
|
Disc Brake
|
Disc Brake
|
Disc Brake
|
|
Weight
|
345+/-15g
|
340+/-15g
|
410+/-15g
|
|
ERD
|
525
|
551.4
|
589
|
|
Weave
|
UD/3K/12K/Twill
|
UD/3K/12K/Twill
|
UD/3K/12K/Twill
|
|
Finish
|
Matte/Glossy
|
Matte/Glossy
|
Matte/Glossy
|
|
Spoke Hole
|
16/18/20/21/24H
|
16/18/20/21/24H
|
16/18/20/21/24H
|
|
Max Spokes Tension
|
130 kgf
|
130 kgf
|
130 kgf
|
|
Max Tyre Pressure
|
120 Psi/8.5 Bars
|
120 Psi/8.5 Bars
|
120 Psi/8.5 Bars
|
|
Max Rider Weight
|
125 Kg
|
125 Kg
|
125 Kg
|
|
Warranty
|
2 Years
|
2 Years
|
2 Years
|
FAQ
1.Should I run different tyre pressures on your rims?
Different wider rim need different size tyre,please confirm with our sales before your order.
2.Which of your rims are suitable for clincher/tubeless tyres?
RC24C to RC88C,WC38C to WC88C,and TWC series carbon rims suitable for clincher tubeless ready.
3. How much spoke tension should I use?
Although the maximum spoke tension of our rims is 150kgf, we do not recommend to lace your
wheelset so intense. Generally, 3 of charging tension are involved in wheel building.
Riding comfortability and performance are supposed to be considered while choosing charging
tension.
A. Tension for "transportation riders" (Comfortability)80-90kgf are ideal for regular transportation riders or exercise on a regular basis.
B. Tension for "enthusiast riders" (Balance)100-110kgf are good for people with enjoyful and training purpose.
C. Tension for "professional riders" (Performance)120-130kgf are charged for riders who are expertized in riding or competition.
