2 Types of carbon climbing wheels details,as below:
|
Model
|
CL24T-BR9
|
CL30T-BR9
|
CL24T-BB301-SP
|
CL30T-BB301-SP
|
|
Material
|
Toray T700
|
Toray T700
|
Toray T700
|
Toray T700
|
|
Hubs
|
Bitex J-Bend Hubs (2:1)
|
Bitex J-Bend Hubs (2:1)
|
Bitex Straight Pull Hubs (2:1)
|
Bitex Straight Pull Hubs (2:1)
|
|
Hub Weight
|
66/192g
|
66/192g
|
79/228g
|
79/228g
|
Rim Model
|
RV24T
|
WU30T
|
RV24T
|
WU30T
|
|
Inner/Out Width
|
23mm
|
25mm
|
23mm
|
25mm
|
|
Depth
|
24mm
|
30mm
|
24mm
|
30mm
|
|
Rim Type
|
Tubular
|
Tubular
|
Tubular
|
Tubular
|
|
Brake System
|
Rim Brake
|
Rim Brake
|
Rim Brake
|
Rim Brake
|
|
Rim Weight
|
290+/-15g
|
330+/-15g
|
290+/-15g
|
330+/-15g
|
|
ERD
|
596
|
590
|
596
|
590
|
|
Weave
|
UD/3K/12K/Twill
|
UD/3K/12K/Twill
|
UD/3K/12K/Twill
|
UD/3K/12K/Twill
|
|
Finish
|
Matte/Glossy
|
Matte/Glossy
|
Matte/Glossy
|
Matte/Glossy
|
|
Spokes And Nipples
|
Pillar 1420 spokes With Nipple
|
Pillar 1420 Spokes With Nipple
|
Pillar 1420 Spokes With Nipple
|
Pillar 1420 Spokes With Nipple
|
|
Spoke Hole
|
16-21H / 18-21H / 20-24H
|
16-21H / 18-21H / 20-24H
|
18-21H / 18-24H / 20-24H
|
18-21H / 18-24H / 20-24H
|
|
Wheelset Weight
|
1030+/-20g
|
1110+/-20g
|
1080+/-20g
|
1160+/-20g
|
|
Max Spokes Tension
|
130 kgf
|
130 kgf
|
130 kgf
|
130 kgf
|
|
Max Tyre Pressure
|
80 Psi
|
80 Psi
|
80 Psi
|
80 Psi
|
|
Max Rider Weight
|
100 Kg
|
110 Kg
|
100 Kg
|
110 Kg
|
|
Warranty
|
2 Years
|
2 Years
|
2 Years
|
2 Years
|

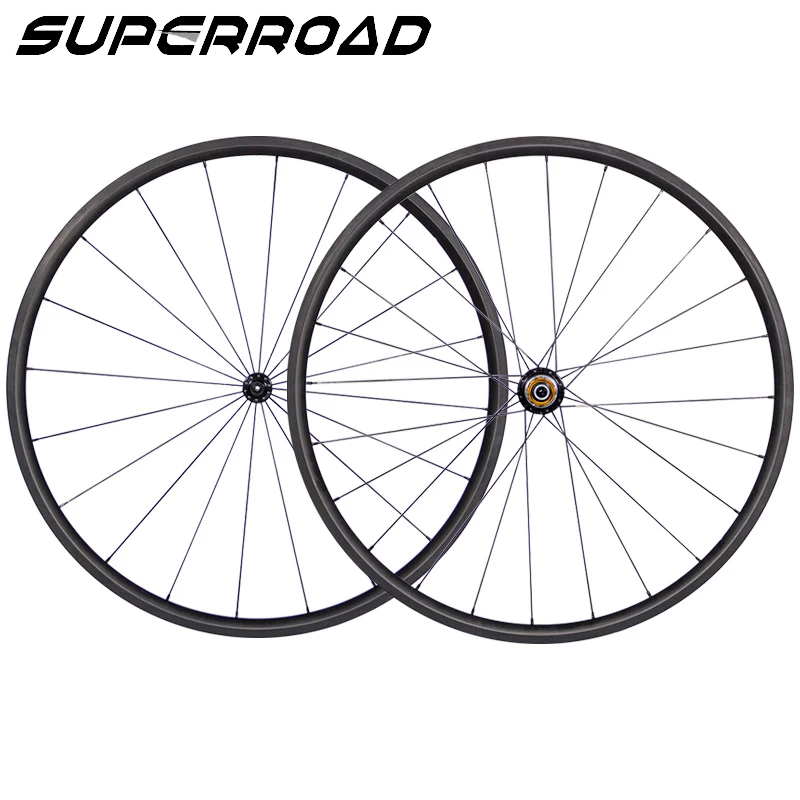

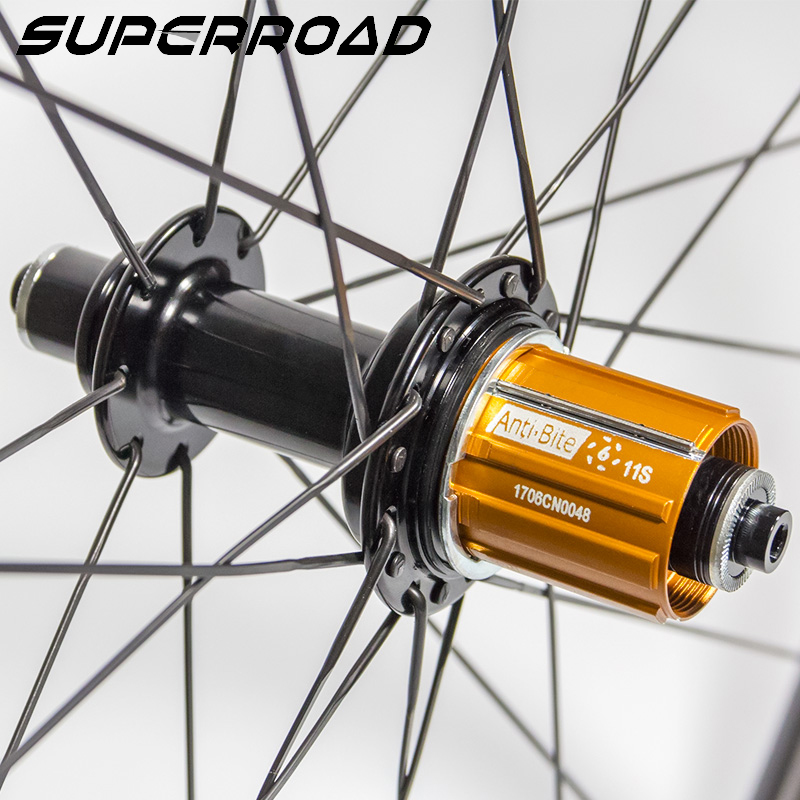

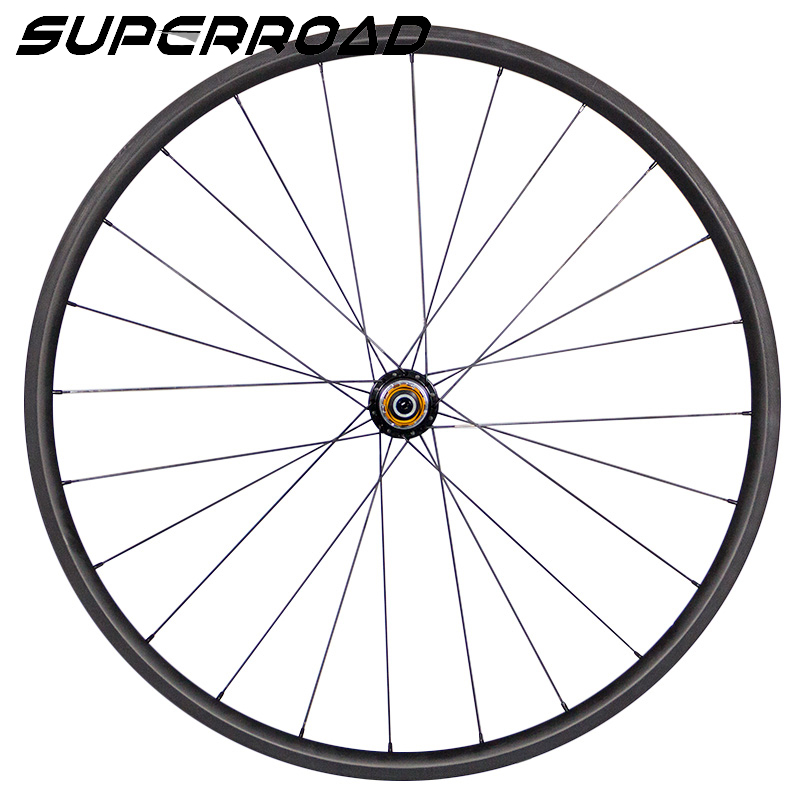

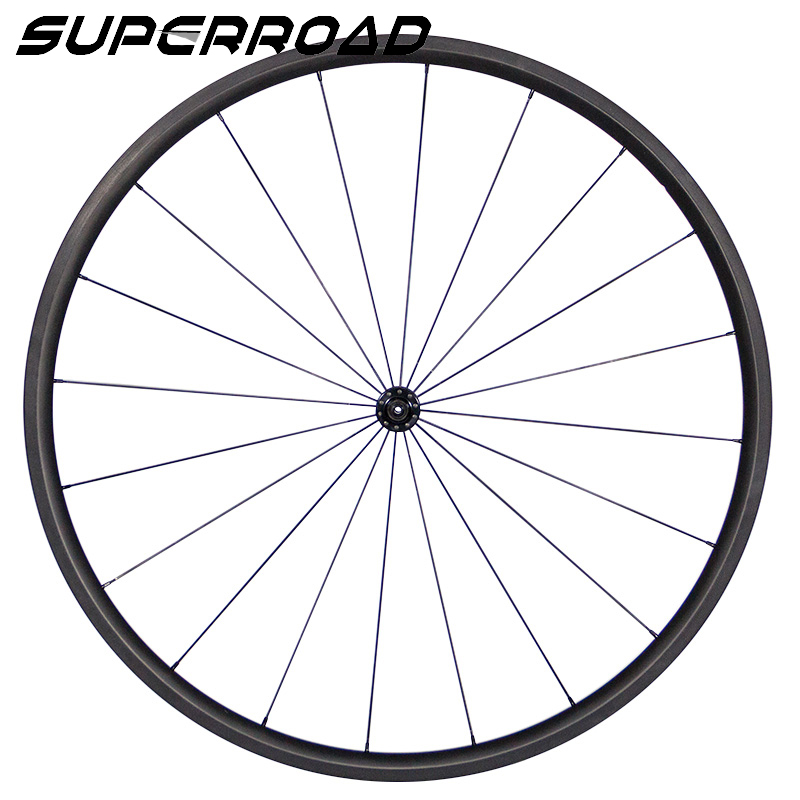

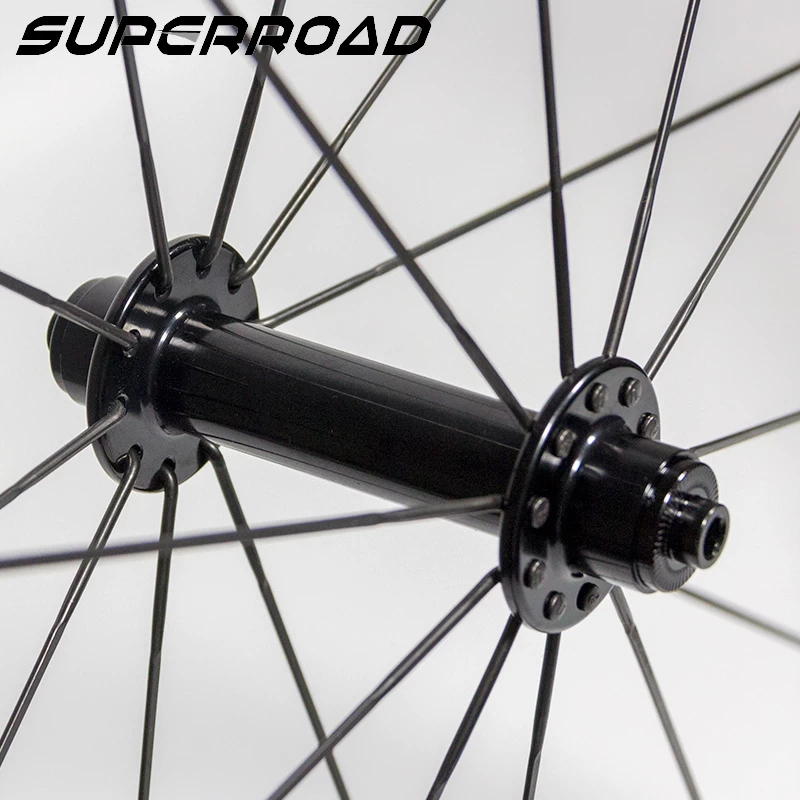

SUPERROAD carbon climbing wheels with bitex hubs, model of bitex RAR9/RAF10 J-bend superlight bicycle wheels hub and bitex BX301R/BX301F straight pull light weight hub,both 2:1 design.With Anti-Bite system,one of the most common problem about freehub bodies is how easily they can be gouged by cassettes, leaving ugly notches that make removing the cassette difficult,here is a solution to freehub gouging, and we have just did it. Bitex hubs Anti-Bite system combine with bitex patented 6 pawls free hub body is a perfect combination.

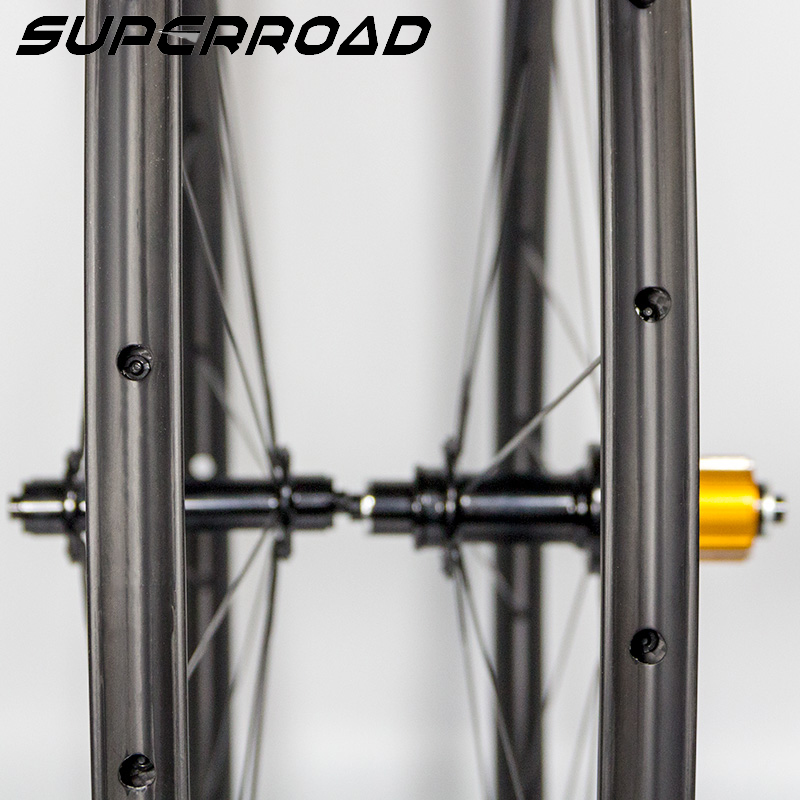

Lightest climbing wheels is popular in climbing stage.24mm carbon tubular rims (RV24T) built 24mm light carbon wheels for climbing rider.But if you need wider wheels for your bike, 25mm wide U shape 30mm deep carbon rims (WU30T) would be your choose.
