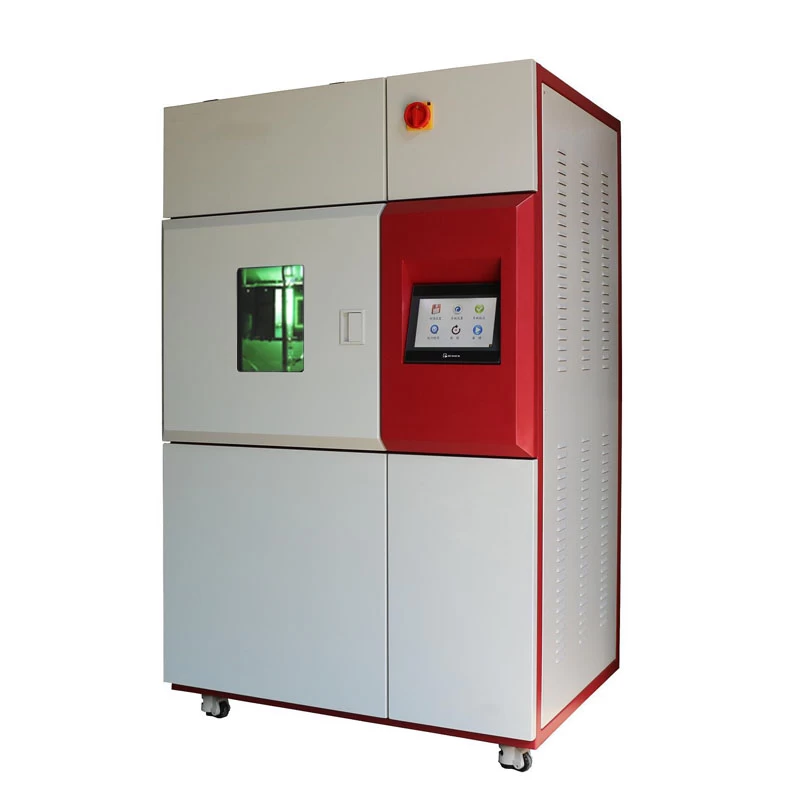

AC02- Light Fastness Tester
(water-cool)
Application Of Light Fastness Tester (water-cool)
Light Fastness Tester (water-cool), is used for testing experiments on simulated Light Color fastness, Photo-sweat Composite Colour fastness and Light Aging by Solar radiation of rubber, plastics, paints, paints, petrochemical, automotive, textile and other industries.
By simulating the climatic conditions such as light, rain, spray, alternating light and dark, temperature and humidity, etc., to determine the fading, aging, fading, transmissivity, peeling, hardness and softening of material products.
Features Of Light Fastness Tester (water-cool)
1. Using 6000W water cooled long arc xenon lamp, point light source with high efficiency electric energy and light conversion technology. Matching with high transmittance filtering system, Irradiation energy xenon lamp power is lower, energy saving and environmental protection are being realized.
2. Irradiance digital setting, real-time monitoring, automatic adjustment, in order to meet the different requirements of the standard for testing optical stability.
3. Irradiancy using optical fiber technology to guide light, 16 bit sampling ad, 32 bit CPU processing, digital setting, AC variable-frequency stepless regulation of xenon lamp, complete realization of Closed-loop Stability automatic compensation.
4. Using standard lamp to correct patent technology, can completely eliminate the attenuation of aging of irradiance acquisition system due to long term test.
5. BPT and BST same station ( equidistant ) detection test with the sample, truly reflect the test state of the sample.
6. Intelligent cycle regulating system, ultrasonic and ptc humidification, circulation wind speed servo motor control, so that the temperature , humidity and blackboard temperature in test chamber can close-cycle control, ensure long - term stable output of test parameters.
7. Cooling water use mixing of internal circulation and high energy efficient heat exchange system, saving water to reduce operating costs.
8. 10.4 inch touch screen display control, Chinese and English operation interface, multiple test monitoring modes (animation, numbers, charts), multistage running mode programming, support online programming without downtime, easy to be operated and controlled.
9. All sample clips achieve separate timing, can test samples of different time in the same machine.
Standards Of Light Fastness Tester (water-cool)
|
Textile
|
AATCC 169, GB/T 8430, GB/T 14576, GB/T 8427, ISO
105-B02/B04/B06, M&S C09 / C09A, JIS L0843
|
|
Rubber
& Plastics
|
GB/T 16422.1, GB/T 12831, GB/T9344, ASTM D2565, ISO 4892
|
|
Paint coating
|
GB/T1865, ASTM D6695, ISO
11341, NES M0135
|
|
Non-metallic Material
|
AATCC TM16, ASTM G26, ASTM
D4459, ASTM G155, GB/T 2423.24, GB/T 15102, GB/T 15104
Car: SAE J2527, SAE J1885,
SAE J2212, SAE J1960, SAE J2412, ISO3917, PV 1303, PV 3929, PV 3930, DVM
0067- MA
HES D6601, TSL 0601G, GMW3414, EDS-T-7415, D47 1431
|
Key Specification Of Light Fastness Tester (water-cool)
|
Model
|
AC02 Light
Fastness Tester (water-cool)
|
|
Irradiation source
|
4500W
|
|
Exposure area
|
2660cm²
|
|
Temperature range
|
20～93℃, ±0.1℃
|
|
Humidity range
|
Light cycle: 10～85RH%, ±0.1RH%
Dark cycle: 0～100RH%, ±0.1RH%
|
|
Test time range
|
≤10000h
|
|
Irradiance control range
|
0.6～3.08W/m²@420nm,
Option: 340nm, 300-400nm or 280-800nm
Digital setting, automatic compensation
|
|
Standard blackboard thermometer
|
35～120℃, ±0.1℃
|
|
Xenon arc lamp rated power
|
6kW
|
|
Rotation speed of the sample
frame
|
1-7rpm, can be set
|
|
Distribution diameter of sample
clamp
|
Φ550mm
|
|
Sample holder
|
ISO: 145×45mm 33pcs
AATCC: 145×70mm 20pcs, option
|
|
Dimension
|
120×90×180cm
|
|
Weight
|
350kg
|
Accessories Of Light Fastness Tester (water-cool)
|
Standard
Accessories
|
Sample clamp
for ISO and GB standard
|
30pcs
|
|
ISO/GB Cover
plate
(1/2, 30pcs;
1/3, 30pcs)
|
60pcs
|
|
Sample clamp
for AATCC standard
|
21pcs
|
|
AATCC Cover
plate
(1/2, 21pcs;
1/3, 21pcs)
|
12pcs
|
|
Sample carton
board
(ISO/GB, 60pcs;
AATCC, 42pcs)
|
102pcs
|
|
Illuminometer
(installed on
equipment)
|
1set
|
|
Xenon arc
lamp
(1set in main
machine, 1set spare)
|
2sests
|
|
Standard
blackboard thermometer
|
1pc
|
|
Blue wool
standard sample
|
1set
|
|
Grey scale
|
1set
|
|
PP cotton
|
2pc
|
|
Drainage
intake pipe
|
|
