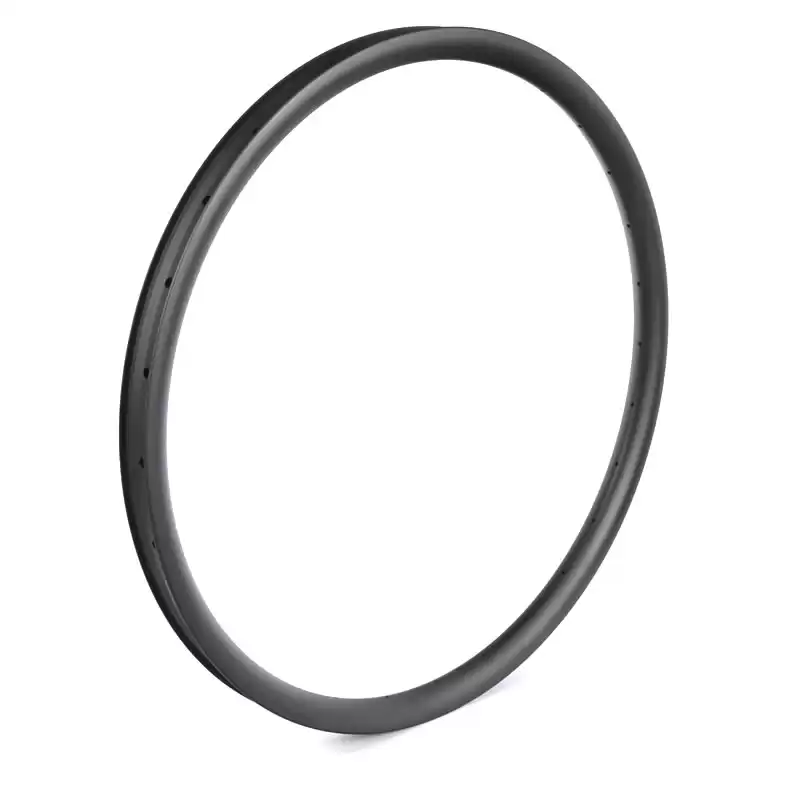

Product Model:29er MTB bicycle hookless carbon rims
This 28mm Deep MTB rims made of Full carbon fiber T700&T800,get more stiffer and stonger for wheels.
32mm&37mm wide XC Rim has new design,it is hookless and tubeless ready,perfect for your 29er XC/AM/DH MTB wheels.
29inch carbon MTB Rims with high profile design,contains more air volume,is able to absorb more impact power,which makes rims stronger.
Ultra smooth inner wall,for even wall thickness and strength.
Optimized bead seat angle design,to prevent air leaking in big turns.Directed towards professional all mountain bike rider.
UD or 3K appearance to choose.also have matte or glossy to finish.
Wholesale MTB bicycle carbon rims,with competitive price and fast delivery.
Features:
1.28mm Deep MTB rims made of Full carbon fiber T700,get more stiffer and stonger for wheels.
2.37mm wider carbon MTB rims offers improved aerodynamics and strength,better for XC cross country MTB bike,better handing in crosswinds conditions and faster riding.
3.The new style MTB 29er rims are made in one piece molding,each rim is made by one piece long carbon fiber,no wrinkles,to make the stength of rim is the stongest .
4.29er MTB carbon rims have ultra smooth inner wall,for even wall thickness and strength,better for cross-country MTB Wheels.
5.29" MTB carbon rims with new optimized bead seat angle design,make it easy for tubeless inflation,and prevent air leaking in big turns.
6.We offer decal and painting service for OEM your brands.
7.We can customized Different appearance carbon rims.
8.Fast delivery,strong technical force and good service.
9.Best quality carbon wheels manufacturer.
10.5 years warranty
Specification:
|
Model
|
D28-W32-29"
|
D28-W37-29"
|
|
Size
|
29er
|
29er
|
|
Sectional Drawing
|

|
|
|
Material
|
Toray T700
|
Toray T700
|
|
Depth
|
20mm
|
24mm
|
|
Wide
|
30mm
|
36mm
|
|
Weight
|
430+/-15g
|
430+/-15g
|
|
Appearance
|
3K/UD or Customized
|
3K/UD or Customized
|
|
Spokes holes
|
18-36#Customized
|
18-36#Customized
|
|
ERD
|
584mm
|
584mm
|
|
Assembly Hole Dia.
|
7.6mm
|
7.6mm
|
|
Spokes hole Dia
|
4.2mm
|
4.2mm
|
|
Valve hole Dia.
|
6.6mm
|
6.6mm
|
|
Flatness
|
<0.25mm
|
<0.25mm
|
|
Roundness
|
<0.5mm
|
<0.5mm
|
|
Max Spoke Tension
|
>300kg
|
>300kg
|
|
Ultimate Strength
|
>85kg
|
>85kg
|
|
Torsion Strength
|
>50kg
|
>50kg
|

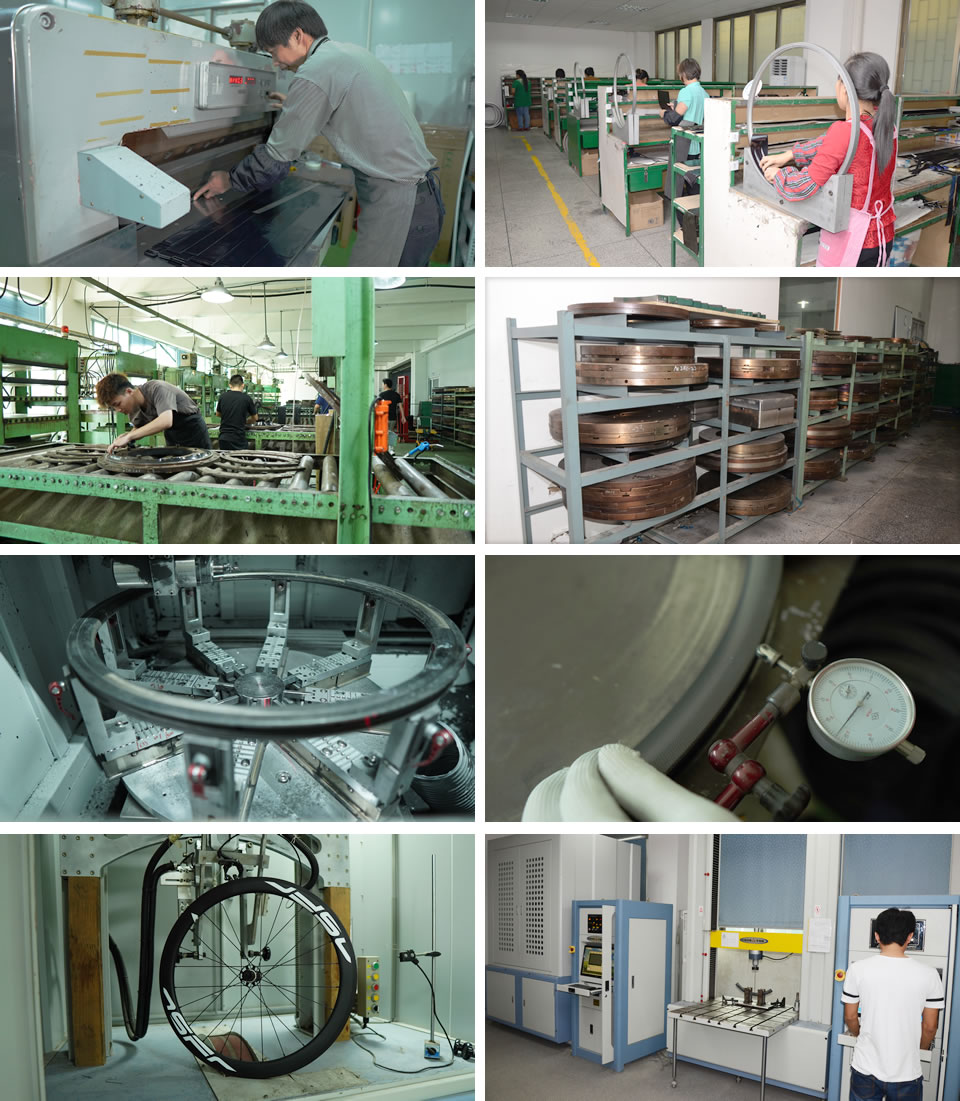

Factory production manufacture
100% Quality Inspection:
Our rims are made of 100% Full carbon fiber material to ensure the high quality of the goods. Each carbon rim by us has its unique serial ID number, which follow every step of the product. And confirm every rim to ensure the best after-sale service.
5 years warranty:
The warranty covers five years form the initial pruchase of the product.
The warranty applies to the original purchaser and the assignmnet is invalid.
The warranty requires proof of pruchase,product serial number and defect picture.
Please keep your proof of purchase for any future warranty problems.
This warranty does not cover:
1. Normal wear and tear and depreciation.
2. Any man-made damage caused by accident,misuse,etc.
3. Improper installation,maintenance or other conduct by an unauthorized technician.
