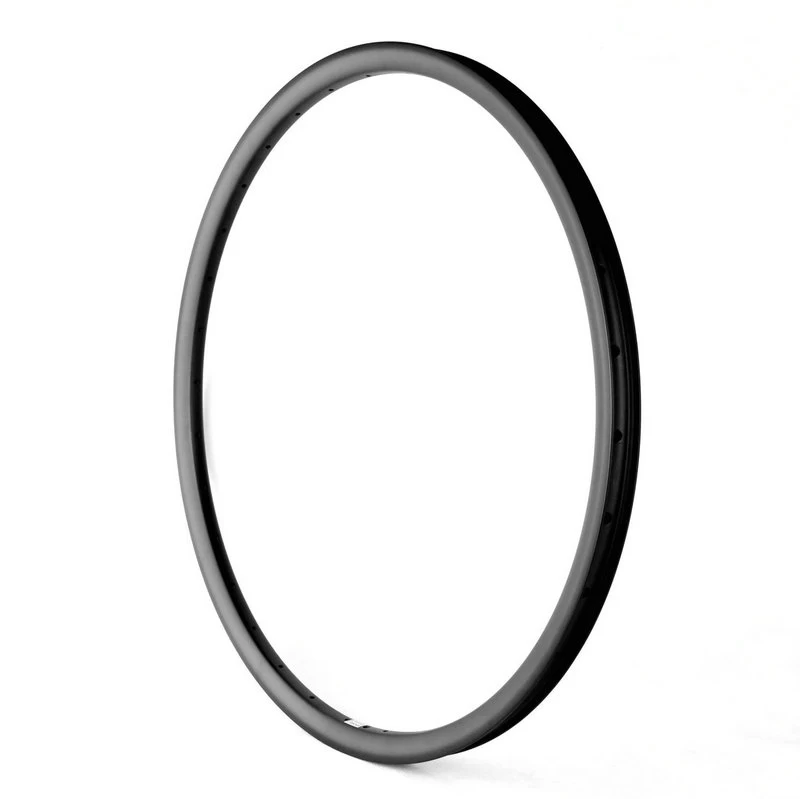

Product Item: Light mountain bike cross country 29er hookless rim tubeless compatible
This new cross country rim is our lightest 29er mtb rim, the best choice
for lightweight 29 inch carbon wheel. It's hookless and tubeless ready,
perfect for your 29er hardtail mountain bike.
Rim Specs:
Item:
|
MX930XC
|
Use:
|
XC - cross country
|
Rim type:
|
29" hookless
|
Material:
|
Toray T700 & T800 carbon fiber
|
Tubeless ready:
|
Yes
|
Weight:
|
320g±15
|

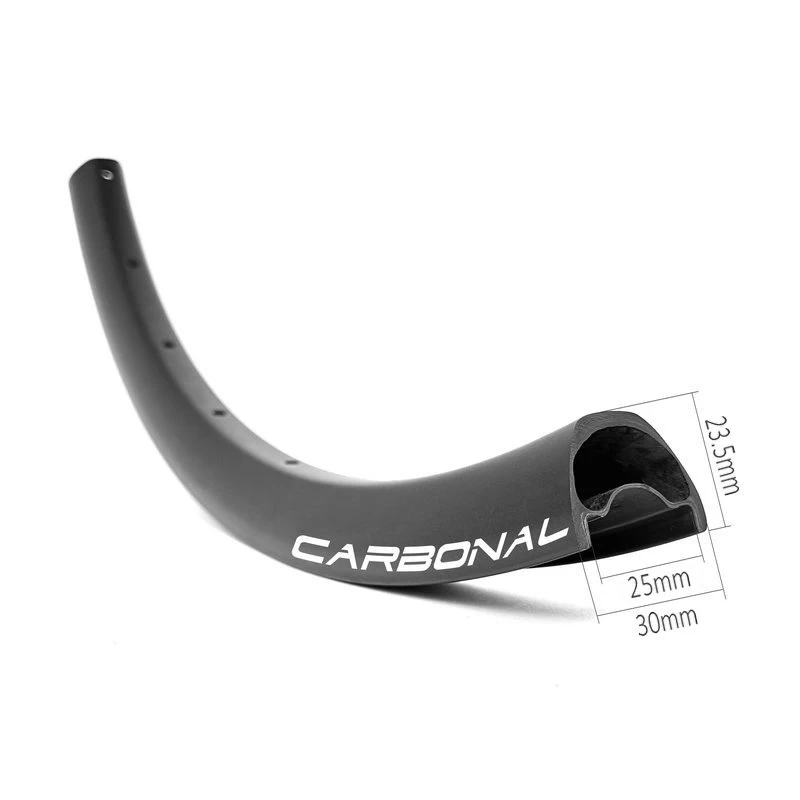

External/Internal width:
|
30mm / 25mm
|
ERD*:
|
598mm
|
Depth:
|
23.5mm
|
Finish:
|
Matte, glossy
|
Weight limit:
|
100kgs
|
Weave:
|
UD, 3k, 6k, 3k twill, marble
|
Spoke hole count:
|
16 - 36
|
Assemble hole diameter:
|
8.5mm
|
Spoke hole diameter:
|
4.5mm / 2.5mm or customized
|
Valve hole diameter:
|
6.5mm
|
Max spoke tension:
|
140kgf (recommended 110 ~ 130kgf)
|
Max tire pressure:
|
60psi / 4.1bar
|
Tire size:
|
2.0" ~ 2.4" (recommended)
|
Min tire pressure:
|
25psi / 1.75bar - read more
|
Decal:
|
Customized
|
Standard:
|
EN standard
|
* ERD: we calculate effective rim diameter from the top point of the nipple, learn more here.
Features:
-
This 29er mtb rim has a 24.5mm internal width, giving a good and square profile to tires without being overly draggy.
-
Super
lightweight, rim constructed with premium Toray T700 & T800 carbon
fiber, best strength to weight ratio with no expense spared.
-
Impact Resistant Construction. Carbon rims
feature a layer of composite material that increases the impact strength
and helps distribute energy and shock from impacts to the rim.
-
Smooth Wall Tec. No folded prepreg during curing, smooth both inside and outside rim wall to reduce potential quality issues.
-
Carbon Strip Reinforcement. Use unique
carbon strip to strengthen the spoke tension and stabilize rim structure
and reduce the rim weight.
-
Hookless Rim Bead. Hookless rim bead more
straight and smooth side walls, tire can touch rim walls fully. More
durable and impact resistance compared to the traditional hooks rim.
-
Tubeless Ready. Beadlock design makes the
rims better tubeless tire setup and better sealing, results a more
lightweight carbon wheels.
-

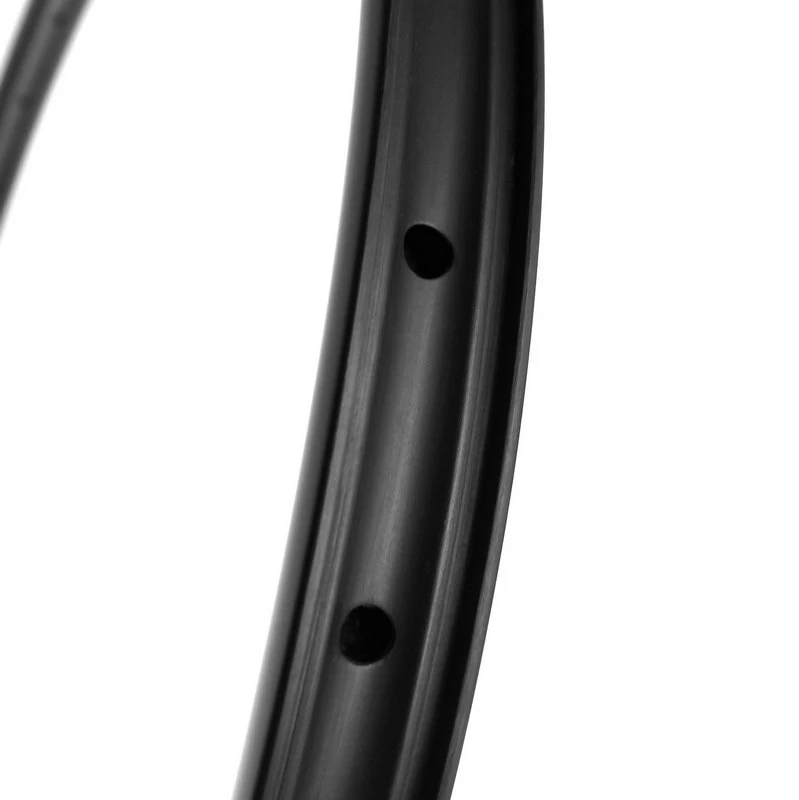

Angled
spoke holes allows the nipple to pull straight in line with the spoke
for reduced stress, this results in fewer broken spokes and nipples.
5 years warranty:
Carbonal warrants its products to be free from manufacturing defects for a period of 5 years after original date of purchase.
This warranty only applies to the original owner and is not transferable.
Valid proof of purchase, pictures of the defect and the product serial number is required for a warranty claim.
Please retain your proof of purchase for any future warranty claims.
This warranty does not cover:
1. Normal wear and tear;
2. Any damage caused by accident, misuse, neglect, abuse, or any other fractious reasons;
3. Improper assembly, maintenance, or maintenance by an unauthorized technician.
1.3 million liability insurance worldwide, included commercial general liability and occurrence basis.
More information about our Warranty Policy.
Manufacturing process:
Our
Engineering team creates a unique fiber orientation which amplifies the
desired riding characteristics for a given rim. And each rim carries
its own layup schedule documents which are followed meticulously by the
layup workers, it ensures the accuracy of each rim in the production
process.
Our
carbon rims are made in one piece molding, each rim is made by one piece
long carbon fiber, no wrinkles, to make the strength of rim is the
strongest. And we use a unique process to remove the air bladder from
the valve hole, so that the rim does not have to be patched like
traditional manufacturers use.
100% Quality Inspection:
Carbonal does 100% quality inspection and record in database, each carbon rim is given a unique ID number, which allow us to deliver the highest quality product possible and track every rim to ensure the best after-sale service.
Read more about Carbonal carbon rim Quality Control.
