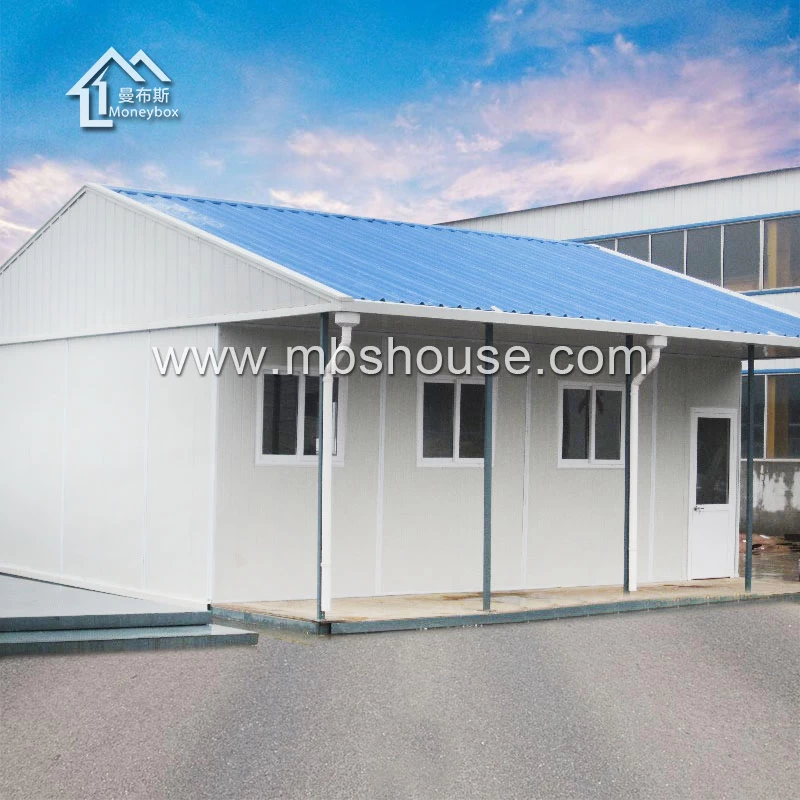

Light Steel and Fast Construction Prefab T house for Sale
Product Features:
1.Compared with the civil building, easy construction, low cost, time-saving and labor saving.
2.The steel structures make the house resisting heavy wind of 120km/h and 7 grade earthquake .
3.It has a good proof, noise insulation, and heat insulation performance.
4.Anti worn ant. All the steel structure is painted and anti-rust which can be normally used more than 15 years.
5.Environmental-friendly materials, the house can be assemble and disassemble and six times.
6.300mm high flat level can meet the foundation of the house.
7.6 people one team, one day can install more than 100 square meters.
|
Item no.
|
Component
|
Specification
|
|
1
|
Wall panel
|
50Double Color-coated Steel EPS Sandwich Board
(steel:0.286mm,EPS density :10kg)
|
|
2
|
Roof title
|
50Double Color-coated Steel EPS Sandwich Board
(steel:0.286mm,EPS density :10kg)
|
|
3
|
Partition wall
|
50Double Color-coated Steel EPS Sandwich Board
(steel:0.286mm,EPS density :10kg)
with aluminum Slot and accessories
|
|
4
|
Column
|
Double C-shaped Steel Size80*40*1.8mm
|
|
5
|
Roof beam
|
C-Shaped Steel Size:80*40*1.8mm & 50*40*1.8mm
|
|
6
|
Tie rod
|
φ8
|
|
7
|
Ground Beam
|
Double C-shaped Steel Size:80*40*1.6mm
|
|
8
|
Round Beam
|
Double C-shaped Steel Size:80*40*1.6mm
|
|
9
|
Roof Purlin
|
Galvanized Angel Steel:1.5mm
|
|
10
|
Door
|
50mm Double Colored-coated steel EPS Sandwich Door Size:800*2000mm
|
|
11
|
Window
|
Plastic steel window:1740*925mm
|
