Light Steel Ceiling Channel Batten Roll forming Machine

This Steel Construction Used Light Steel Keel Hat Roll forming machine is manufactured by Xiamen Bogong Machinery, for processing galvanized sheet, but it is also available for pre-painted steel and aluminum zinc coil.


  • Shaft Diameter65mm
  • Driving Motor4Kw
  • Forming Station11 stations
  • Covered Width40mm
  • Material Width156mm
  • Material Thickness0.3-0.8mm

Kinds of steel keel, hat profile roll forming machines are accepted for custom manufacture


Product name: Light Steel Ceiling Channel Batten Roll forming Machine


Machine Details

Light Steel Ceiling Channel Batten Roll forming Machine also called Light Steel keel Equipment , this small roll forming machine  is used for producing light steel keel, we design 11 stations roll forming. Light steel keel is popular used in construction area for ceiling decoration support and steel construction for wall or roof, such as hotel, train station, factory and office building, it is light but strong, easy for installation.

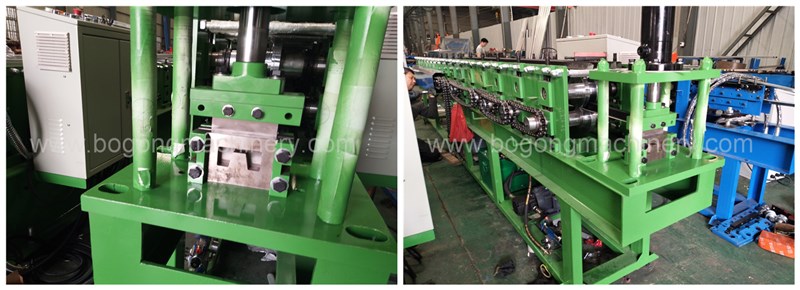

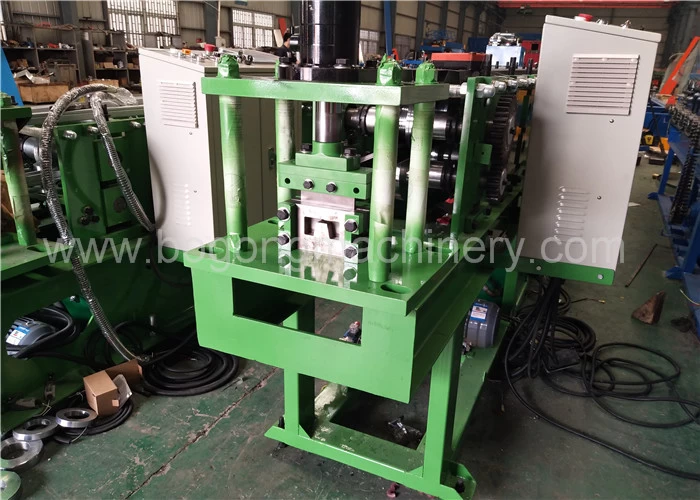

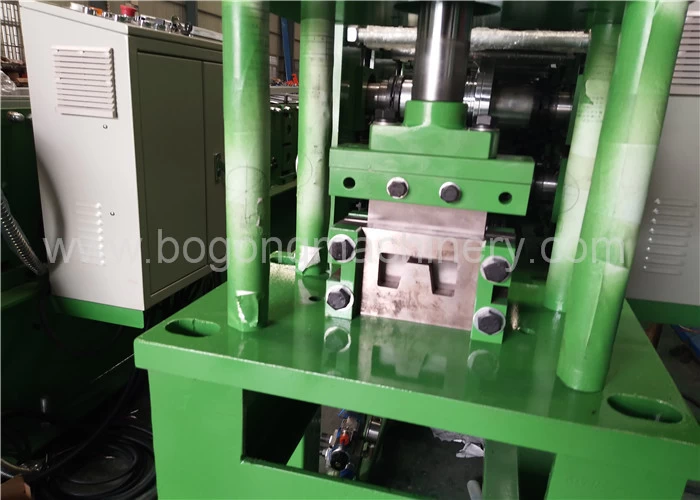

Whole line choose hydraulic cutting off the steel channel battens, sprocket chains and gears to transport each station power.

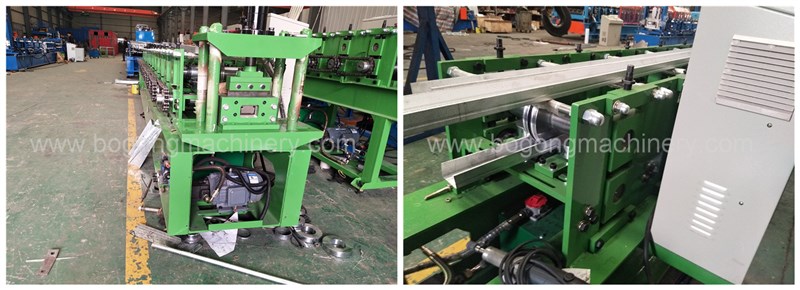

steel keel hat roll forming machine

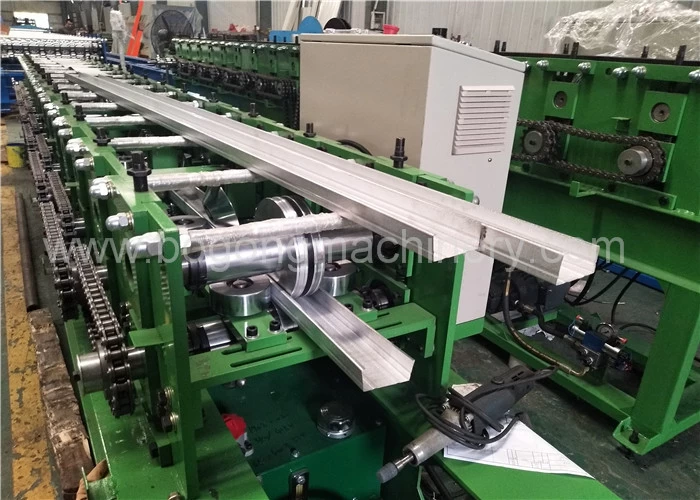

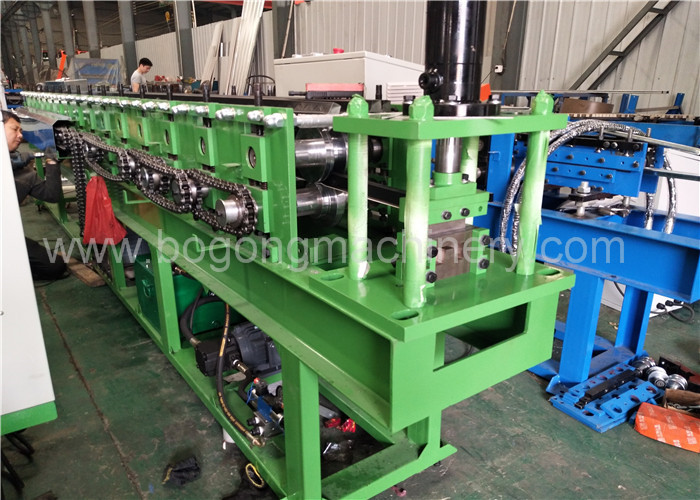

This  Light Steel Ceiling Channel Batten Roll forming Machine  is small, about 5.8 meters long, so we design portable type PLC control box, welded on roll forming machine frame aside. Below picture is the small C channel steel keel, also used for ceiling batten. whole producing line is still adjusting and installing at our site.

steel keel batten roll forming machine


Channel samples produced by Light Steel Ceiling Channel Batten Roll forming Machine, there is dot embossing at the channel's bottom position. For the c channel, there is also strengthening rib design both at bottom and waist. After all parts are finished, all roll forming section was covered with grids type of safety cover, the operator can see the working rollers well and avoid people's hand go inside.galvanized steel batten making machine



Technical Parameters

Parameters

Specification

Voltage

380V/50HZ/3PH or customized

Driving Motor

4KW

Forming Steps

 11 steps

Working Speed

10-15m/min

Thickness for Steel

0.3-0.8mm

Shaft Diameter

65mm

Shaft Material

High grade 45# forged steel

Roller Material

G45# steel, CNC lathe,polished and chrome plated

PLC Cabinet

Schneider, Delta

Encoder

Omron

Sprocket Wheel

45 steel high-frequencies quench

Cut-off System

Post cutting, no waste cutting

Cutting Blade Material

Cr12 steel

Machine Frame Material

Fine welded structural steel;

Raw Material

Galvanized steel

Painted Color

Blue+Orange Or Customization

Overall Size

5800*950*1050mm

Weight

2500KGS
