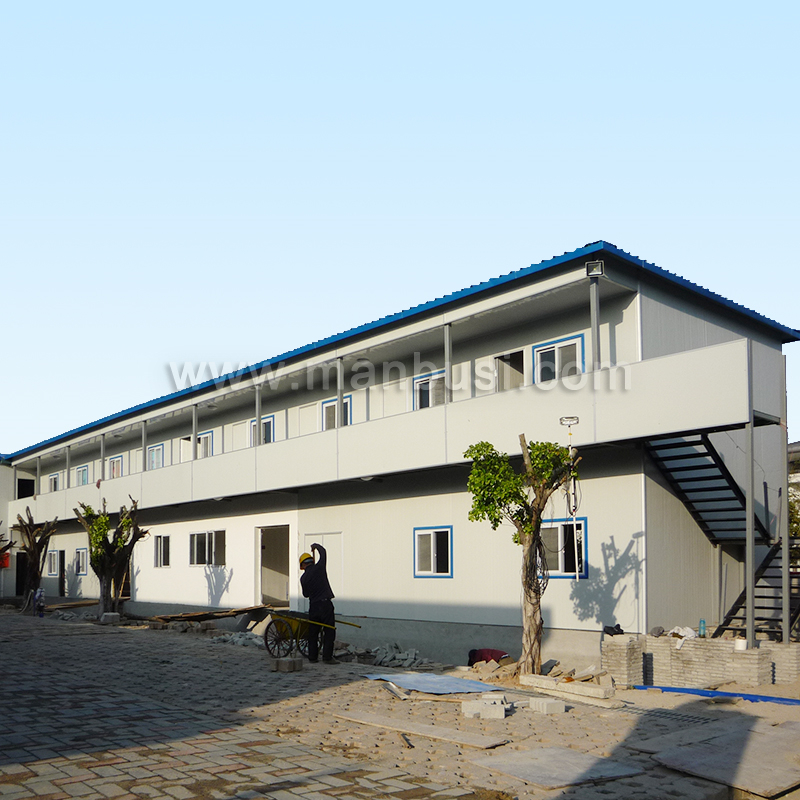

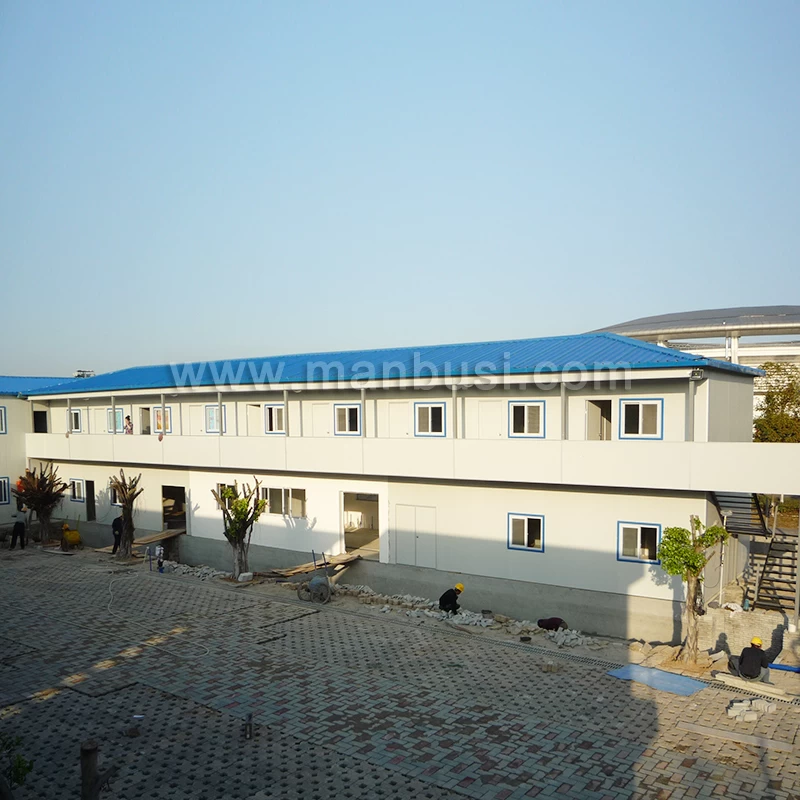

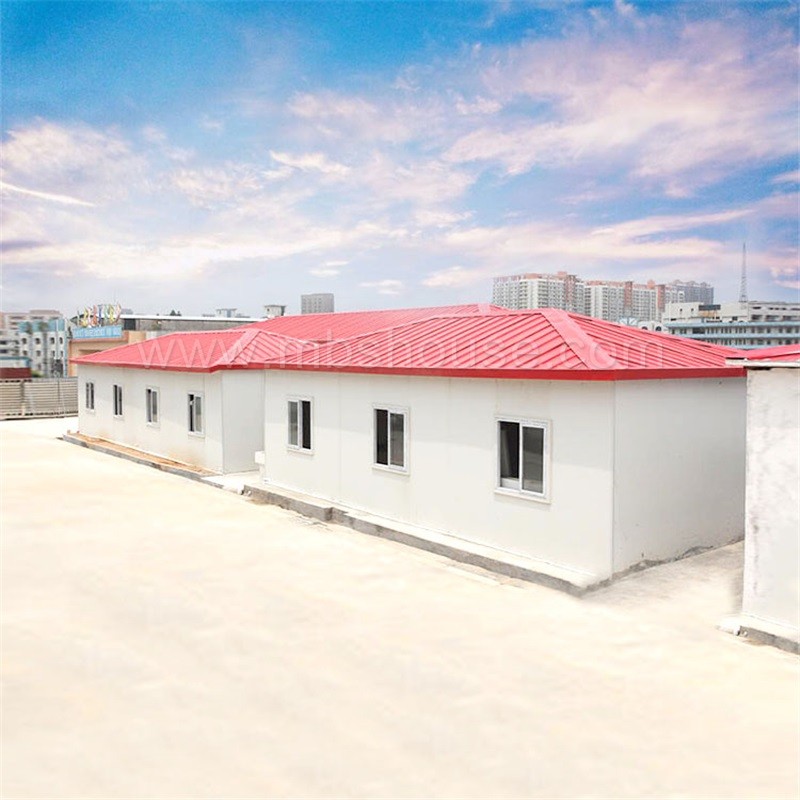

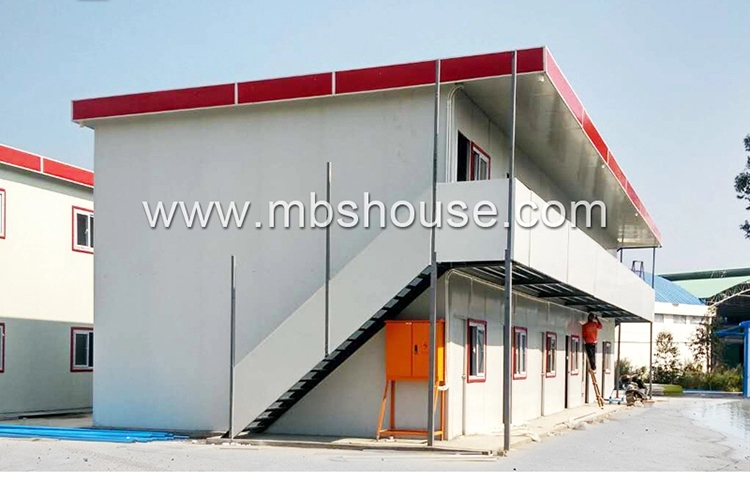

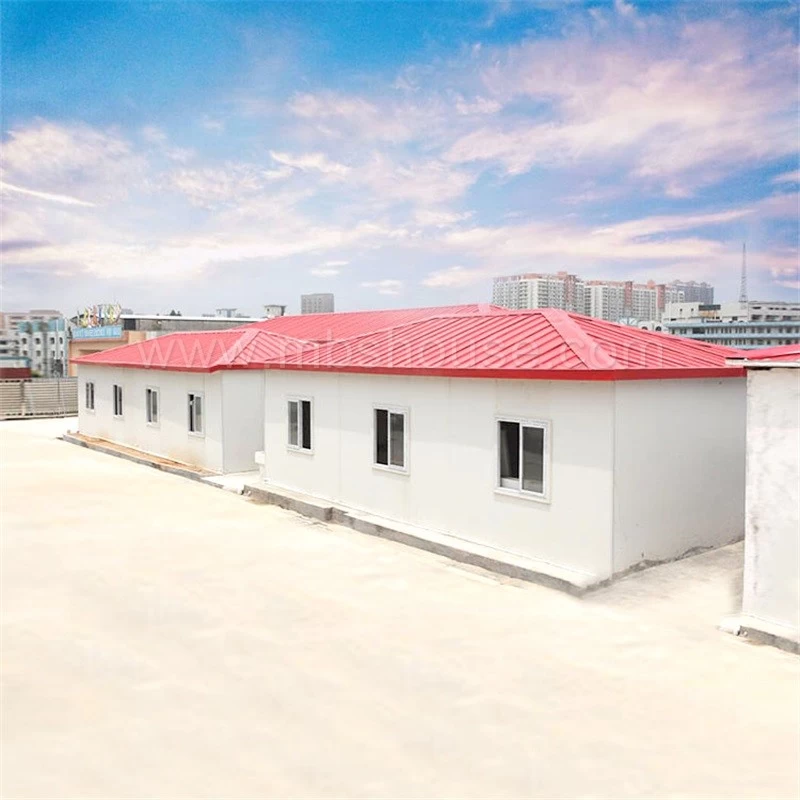

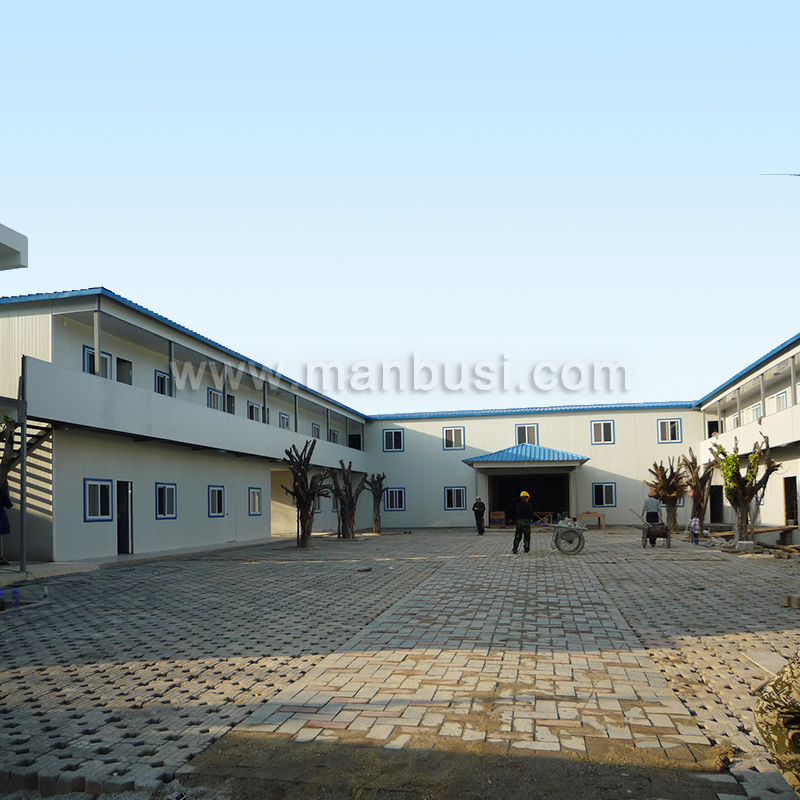

Light Steel Structure Prefab Home Prefabricated Camp House
Specification
1) Unit figure for T house dimension is T. 1T=1150mm.
2) T House can be done as 1 floor(3H), 2 floors(6H).1H=1000 mm.
3) Cheap Prefab Houses.Cost saving & Comfortable.
4) Fast construction & Easy installation.
5) Long life span & Many times used.
6) Waterproof,Fireproof & Heat insulation.
7) Eco-friendly material ,no construction garbage caused.
8) Flexible layout to satisfy different requirements.
|
Item no.
|
Component
|
Specification
|
|
1
|
Wall panel
|
50Double Color-coated Steel EPS Sandwich Board
(steel:0.286mm,EPS density :10kg)
|
|
2
|
Roof title
|
50Double Color-coated Steel EPS Sandwich Board
(steel:0.286mm,EPS density :10kg)
|
|
3
|
Partition wall
|
50Double Color-coated Steel EPS Sandwich Board
(steel:0.286mm,EPS density :10kg)
with aluminum Slot and accessories
|
|
4
|
Column
|
Double C-shaped Steel Size80*40*1.8mm
|
|
5
|
Roof beam
|
C-Shaped Steel Size:80*40*1.8mm & 50*40*1.8mm
|
|
6
|
Tie rod
|
φ8
|
|
7
|
Ground Beam
|
Double C-shaped Steel Size:80*40*1.6mm
|
|
8
|
Round Beam
|
Double C-shaped Steel Size:80*40*1.6mm
|
|
9
|
Roof Purlin
|
Galvanized Angel Steel:1.5mm
|
|
10
|
Door
|
50mm Double Colored-coated steel EPS Sandwich Door Size:800*2000mm
|
|
11
|
Window
|
plastic steel window:1740*925mm
|
