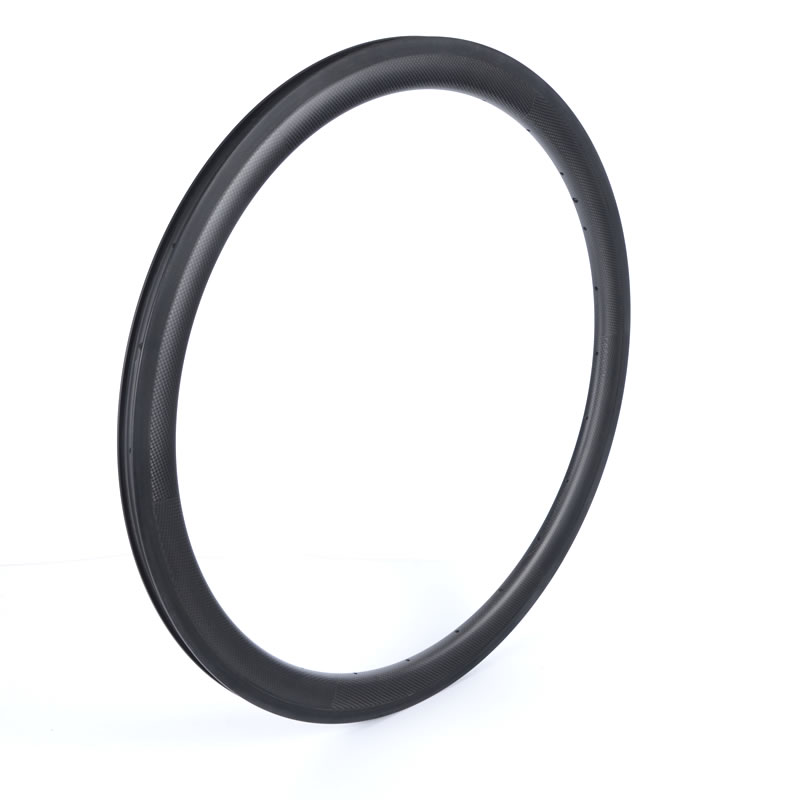

Product Model：45mm Deep T700 Clincher bike rims
Made of Full carbon Toray T700, new style 25mm/27mm wide U shape,45mm Deep rims profile makes this clincher rims pretty stiff.better aerodyamic performance,durable and strength.
250°C High TG temperature resin carbon rim for road bike wheels.This wheels better for road racing and cyclocross riding.
High quality carbon clincher rim with stable quality clincher rim with stable quality and excellent performance.
Offer high quality carbon clincher rims with competitive price,specially designed and fast delivery.
Features:
1.High TG resin temperature with 250°C brake track from braking in road bicycle clincher wheels.
2.Full Toray T700 & T800 carbon fiber, Super lightweight rims,best strength to weight ratio with no expense spared.
3.The new style of 45mm Deep clincher rims have faster braking heat elimination.
4.25mm and 27mm wide U sahpe design.
5.We offer decal and painting service for OEM your brands.
6.We can customized Different patterns of brake surface .
7.High quality carbon wheels manufacturer,strong technical force,good service and fast delivery.
8.5 years warranty
Specification:
|
Model
|
R45C-25
|
R45C-27
|
|
Size
|
700C
|
700C
|
|
Sectional Drawing
|
|
|
|
Material
|
Toray T700 & T800
|
Toray T700 & T800
|
|
Depth
|
45mm
|
45mm
|
|
Wide
|
25mm
|
27mm
|
|
Weight
|
490+/-15g
|
495+/-15g
|
|
Appearance
|
3K/UD OrCustomized
|
3K/UD OrCustomized
|
|
Spokes holes
|
18-36#Customized
|
18-36#Customized
|
|
ERD
|
550mm
|
550mm
|
|
Assembly Hole Dia.
|
7.6mm
|
7.6mm
|
|
Spokes hole Dia
|
4.2mm
|
4.2mm
|
|
Valve hole Dia.
|
6.6mm
|
6.6mm
|
|
Flatness
|
<0.25mm
|
<0.25mm
|
|
Roundness
|
<0.5mm
|
<0.5mm
|
|
Max Spoke Tension
|
>280kg
|
>300kg
|
|
Ultimate Strength
|
>200kg
|
>300kg
|
|
Torsion Strength
|
>50kg
|
>50kg
|
|
Tire Size Recommended
|
700*25-25c
|
700*25-28c
|
|
Max Tire Pressure
|
125psi/8.6bar
|
125psi/8.6bar
|
Factory production manufacture
100% Quality Inspection:
Our rims are made of 100% Full carbon fiber material to ensure the high quality of the goods. Each carbon rim by us has its unique serial ID number, which follow every step of the product. And confirm every rim to ensure the best after-sale service.
5 years warranty:
The warranty covers five years form the initial pruchase of the product.
The warranty applies to the original purchaser and the assignmnet is invalid.
The warranty requires proof of pruchase,product serial number and defect picture.
Please keep your proof of purchase for any future warranty problems.
This warranty does not cover:
1. Normal wear and tear and depreciation.
2. Any man-made damage caused by accident,misuse,etc.
3. Improper installation,maintenance or other conduct by an unauthorized technician.
