Lightweight EPS sandwich panels for roof system
The EPS sandwich panel has high surface finish and excellent light retention. It has the characteristics of non discoloration, abrasion resistance, anti sunlight and anti-aging. It has strong stability in the face of chemicals such as water, light, salt and acid. It has good thermal insulation, stable thermal conductivity, excellent compressive performance and seismic performance. It is suitable for coastal areas and areas with high incidence of natural disasters.
Highlights of EPS sandwich panels
1.Various colors
EPS sandwich panels of different colors can be selected according to different styles of buildings.
2.Low price
EPS sandwich panel is the cheapest of all sandwich panels.
3.Lightweight
Because of its variety of core materials, the weight of EPS sandwich board is relatively light.
4.Waterproof and thermal insulation
EPS sandwich panel can be very good at waterproof, thermal insulation and fire prevention.
5.Long service life
Because the coating of color steel claddingworks, the service life of EPS sandwich panel can reach more than 20 years.
6.Easy installation
The installation of EPS sandwich panel is very simple, which can save a lot of construction time.
Product Specification
Panel effective width
|
950-1150mm
|
Cladding thickness
|
0.35--0.75mm
|
Material of cladding
|
PPGL/PPGI sheet&Aluminum sheet
|
Coating
|
PE,SMP,HDP,PVDF
|
|
Core
|
Polystyrene foam
|
EPS density
|
8--20kg/m3
|
Panel thickness
|
25mm---200mm
|
Fire resistant level
|
A2
|
Color
|
Customized
|
Panel length
|
20FT,5.95m/40FT,11.95m
|
Application
Walls of large-span structures and walls of thermal insulation (or fire protection) plants, purification plants, composite houses and container houses.

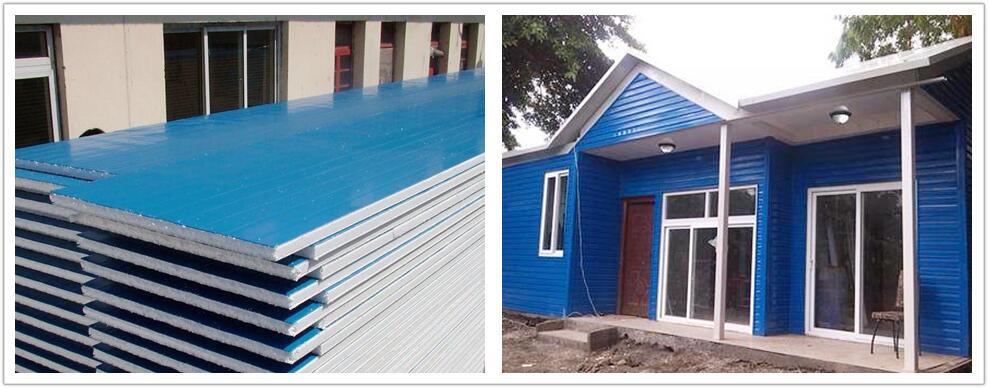

Product display
Packing & Delivery
◆Packing:
Seaworthy packing standards:
PVC on both sides to protect the roof panel ends;
Packed with paper to protect the panel ends;
Put EPS foam on the each space to keep the panel from squeezing each other.
If you have special requirements,please feel free to discuss with us.
This is to make us improved and protect your goods well.
◆Delivery:
Delivery time for regular colors,coating types and thickness:7-10 days;
Delivery time for special colors,coating types and thickness:20-30 days;
Delivery terms:FOB/CIF/CFR/DDP is available;
We can find good forwarder for customer or accept appointed forwarder from customers.

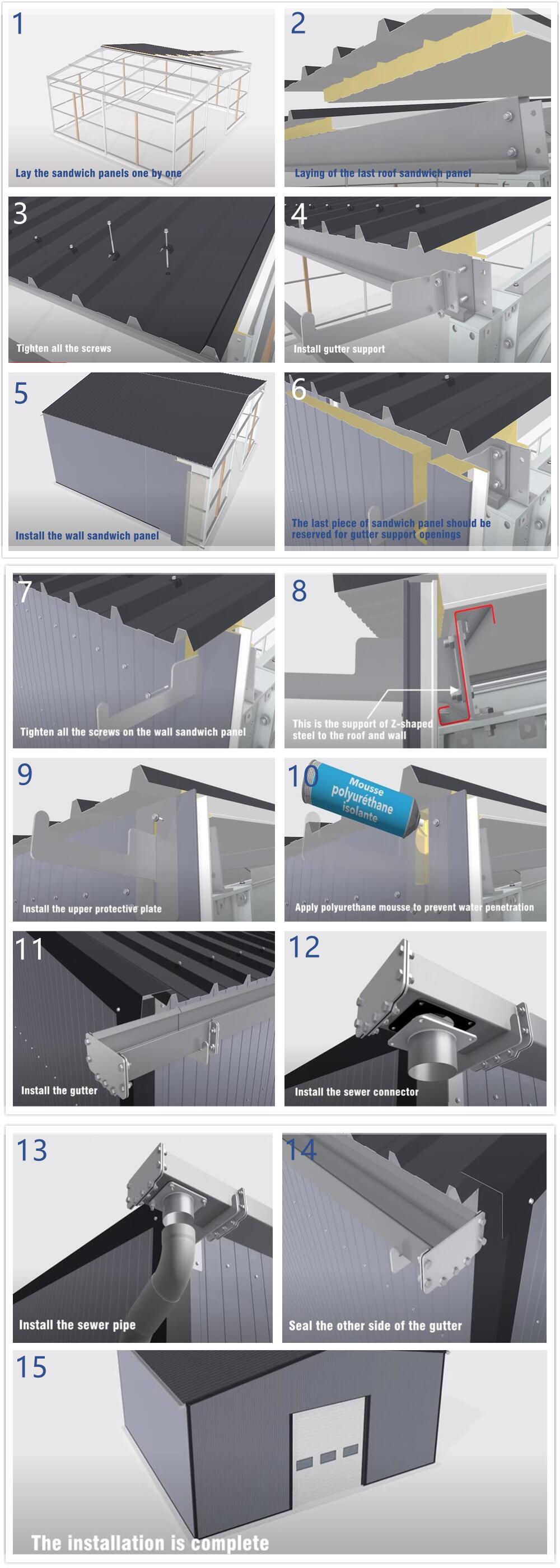

Installation guide
The installation of sandwich panels is relatively simple. Let's take a small house as an example to show you how to install sandwich panels.
If you have any questions about the installation of this product, please contact us and we will send you a detailed installation instruction.We can also tell you how to easily solve the installation problem in the email : syinhuan@chinayinhuan.com
