Lightweight insulated EPS purification panels

EPS purification boards are mostly used in hospitals, scientific research rooms and other clean environments. It can be insulated and waterproof.

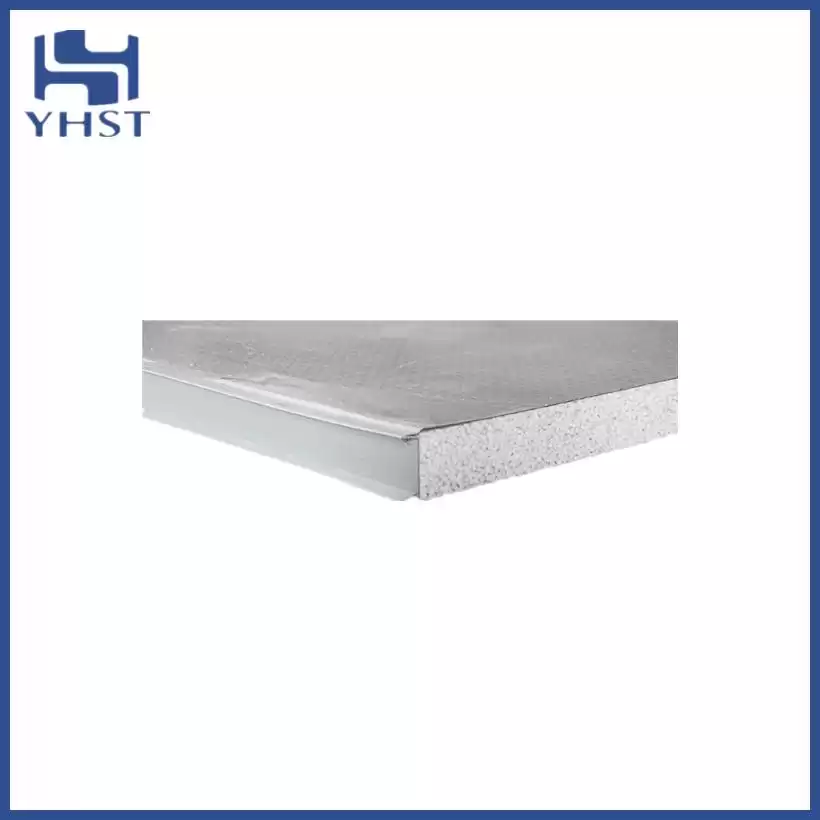

EPS purification panels

The EPS purification panel has high surface finish and excellent light retention. It has the characteristics of non discoloration, abrasion resistance, anti sunlight and anti-aging. It has strong stability in the face of chemicals such as water, light, salt and acid. It has good thermal insulation, stable thermal conductivity, excellent compressive performance and seismic performance. It is suitable for coastal areas and areas with high incidence of natural disasters.It can be used as roof panel and wall panel.The EPS purification panel is a super light building board made of color coated rigid plate and self quenched polystyrene as core material, heated and compounded in a continuous molding machine with heat curing glue.

Product Specification

Product Name

EPS purification panels

Core

Extrusion Polystyrene

Cladding thickness

0.2--1.0mm

Effective width

950mm、1000mm、1150mm、1200mm

Panel length

2500 to 15000mm

Core thickness

50---300mm(Common 50, 75, 100)

Panel weight

MAX 24 kg/m2

Fire rating

B3

Moisture absorption rate

3.9 %

MOQ

500m2 per color&size

Delivery time

10--20days

Features

light weight, which can fully reduce the structural cost. Fast installation, fire prevention, fire resistance, beauty, thermal insulation, environmental protection, noise prevention, strong plasticity and high strength.The most cost-effective sandwich panel products.

Application

Workshop, office cabinet wall, external wall of steel structure room, workers' temporary dormitory, supermarket, cold storage, movable board room, building storey addition and purification workshop.

When you order this product, You can specify the parametersthe including color, material and thickness of the steel plate, the thickness of the core material, and the width and length of the sandwich panel, so that we can quote you more accurately and serve you better.

Product display

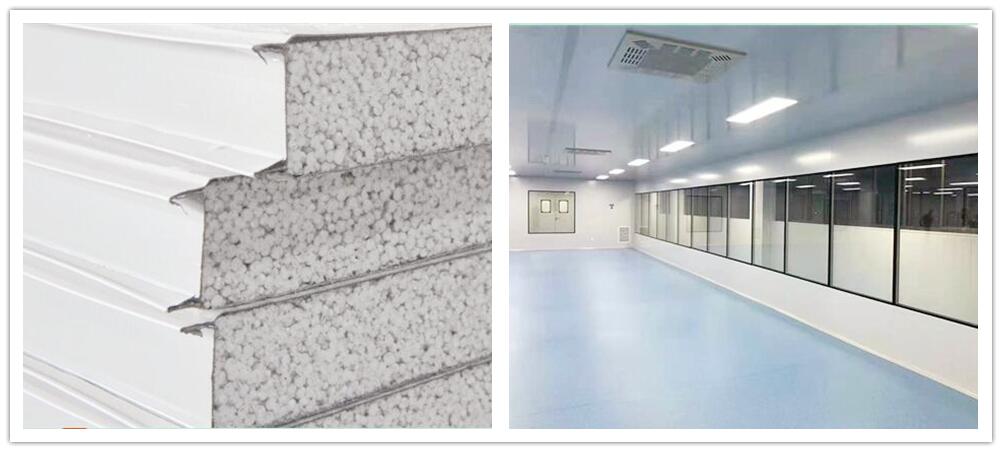

EPS purification panel

Packing & Delivery

◆Packing:

Seaworthy packing standards:

PVC on both sides to protect the roof panel ends;

Packed with paper to protect the panel ends;

Put EPS foam on the each space to keep the panel from squeezing each other.

If you have special requirements,please feel free to discuss with us.

This is to make us improved and protect your goods well.

Delivery:

Delivery time for regular colors,coating types and thickness:7-10 days;

Delivery time for special colors,coating types and thickness:20-30 days;

Delivery terms:FOB/CIF/CFR/DDP is available;

We can find good forwarder for customer or accept appointed forwarder from customers.
