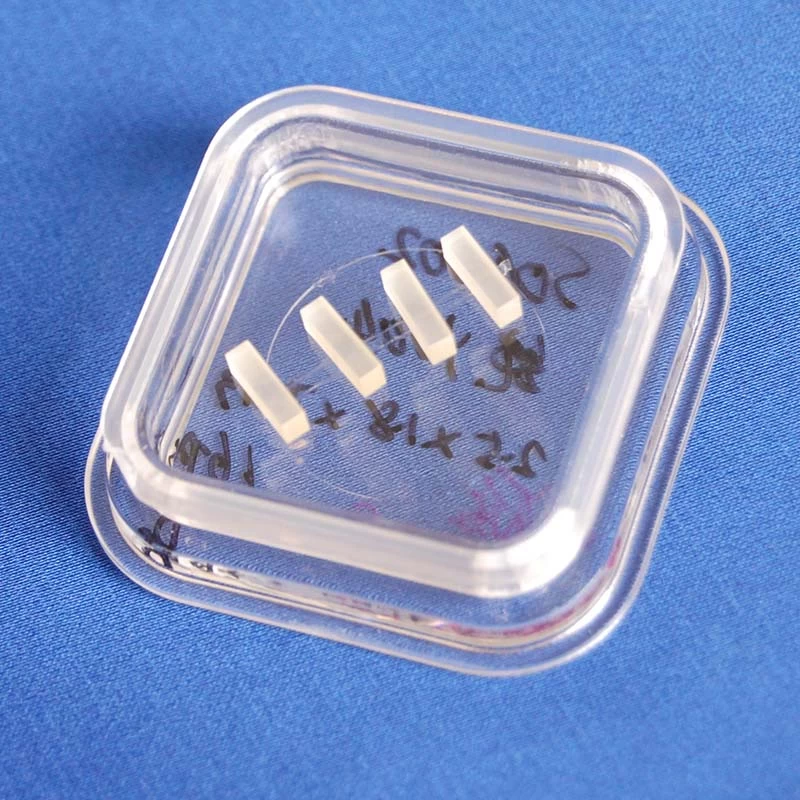

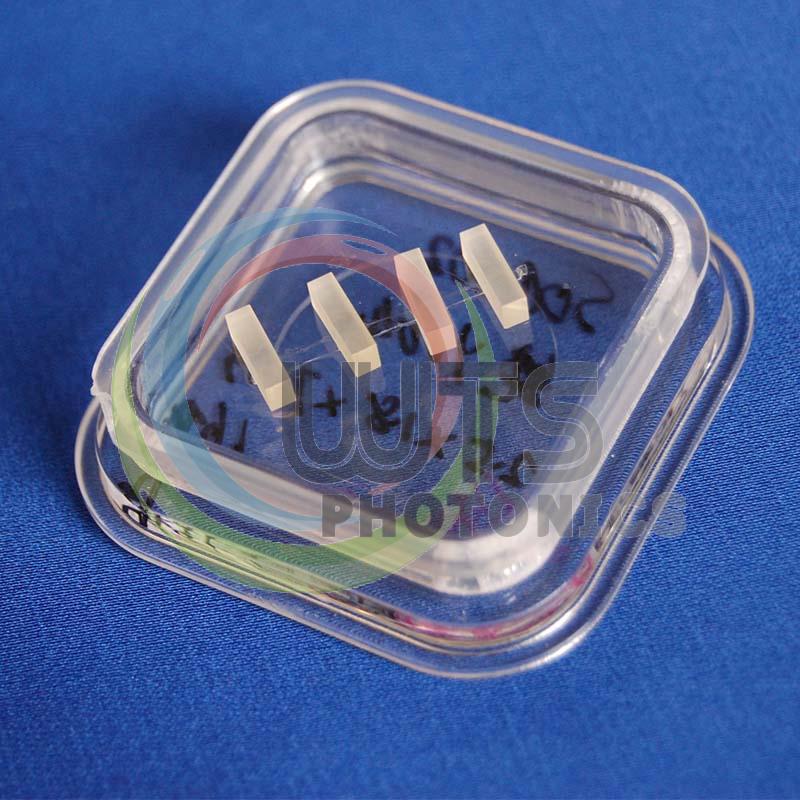

LiNbO3 and MgO-LiNbO3 Nonlinear Crystal
LiNbO3 (Lithium Niobate) crystal is widely used as frequency doublers for wavelength > 1mm and optical parametric oscillators (OPOs) pumped at 1064 nm. Due to its large electro-optic and acousto-optic coefficients.
MgO:LiNbO3 (Magnesium Oxide Doped Lithium Niobate) crystal has similar effective nonlinear coefficients to pure LiNbO3 and exhibits higher optical damage threshold.
LiNbO3 Crystal Advantages:
1. Large Nonlinear Optical (NLO) Coefficients
2. High mechanical and chemical stability
3. Large electro-optic and acousto-optic coefficients
4. Wide transparency range
5. High optical homogeneity
LiNbO3 Crystal Applications:
1. Pockels Cells
2. Q-switches
3. Phase modulators
4. Surface acoustic wave(SAW) wafers
LiNbO3 and MgO-LiNbO3 Crystal SPECIFICATION:
|
Aperture:
|
1-15 x 2-15mm
|
|
Lenght:
|
2 - 50mm
|
|
Cutting Angle q and f:
|
Determined by different kinds of homonic generartion
|
|
Phase matching type:
|
Type I or Type II
|
|
Angle tolerance:
|
Δθ< ± 0.5°; Δφ< ±0.5°
|
|
Dimensional Tolerance:
|
(W ± 0.1mm) x (H ± 0.1mm) x (L + 0.2mm/-0.1mm)
|
|
Flatness:
|
<λ/8 at 633nm
|
|
Surface Quality:
|
20/10 Scracth/Dig
|
|
Parallelism:
|
< 30 arc seconds
|
|
Perpendicularity:
|
< 10 arc minutes
|
|
Wavefront Distortion:
|
<λ/8 at 633nm
|
|
Clear Aperture:
|
>90%
|
|
Chamfer:
|
0.15x45°
|
|
Coating:
|
AR @ wavelegth specified by customer
|
