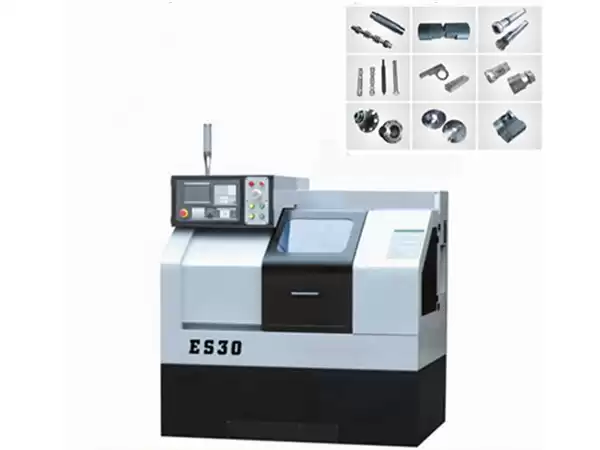

Line Rail CNC Machine Tool
Each machine has to pass the checklist of the machine precision before shipment
1 Adjust levelness of the machine
2 Straightness of rise and fall mechansim in vertical movement
3. Verticality of the operating platform surface to the guide track surface of the column
4. Straigtness of the datum T-slot of the operating platform
5. Plainness of the operating platform surface
6. Oscillation of the spindle end
7. Circular run ou of the spindle bore-hole axis
8. Parallelism of the rotaryaxis of the spindle to the operating platform
9. Verticality of the rotary axis of the spindle to the operating platform
10. Parallelism of the longitudinal movement of the operating platform to the datum”T“-shot
11. Vertically of the transverse movement to the longitudial movement of the operating platform
12. Parallelism between the movement and the surface of the operating platform
|
Beijing KND CNC system
|
s
|
|
AC Servo system
|
s
|
|
Pneumatic spring perch
|
s
|
|

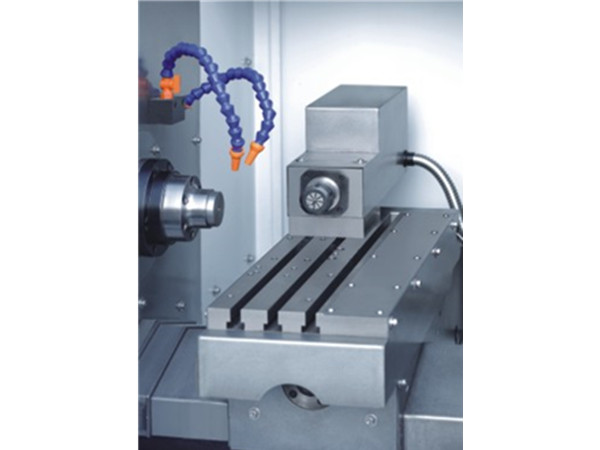

Tool carriage
|
s
|
|
4kw/5.5kw spindle motor
|
s
|
|
Stepless speed regulation spindle
|
s
|
|
Automatic lubrication
|
s
|
|
Thread function of metric /british standard
|
s
|
|
Cooling system
|
o
|
|
Four -workstation automatic tool turret
|
o
|
|
Maximum revolution diameter of bed
|
mm
|
380
|
|
Maximum revolution diameter of excess carriage
|
mm
|
180
|
|
Maximum top margin
|
mm
|
-
|
|
Maximum Z-axle stroke
|
mm
|
360
|
|
Maximum X-axle stroke
|
mm
|
550/600
|
|
Rapid travel speed
|
mm/min
|
x:12 z:18
|
|
Diameter of spindle through hole
|
mm
|
48
|
|
Power of main motor
|
kw
|
4
|
|
Rotation speed of spindle
|
r/min
|
200-3000
|
|
Sectional area of cutter arbor
|
mm
|
20x20
|
|
Stroke of tailatock sleeve
|
mm
|
-
|
|
Taper of sleeve bore
|
mt
|
-
|
|
Chuck specification
|
mm
|
160/200
|
|
Positioning accuracy
|
mm
|
x;0.01 z:0.01
|
|
Pulse equivalent
|
mm
|
x:0.005 z:0.01
|
|
Cooling water pump
|
w
|
90
|
|
Weight of machine tool
|
kg
|
1500
|
|
Contour dimension of machine tool (L*W*H)
|
mm
|
1718x1175x1600
|
Our Serviece:
Before sales
Our professional technical recommend the right machine,and can also customise special machine as customer's requirement and special parts.
Sales following
During machine production, watching the machine quality and testing machine.and take pictures or make video for customer checking.
After Sales
We will send technical go to customer's factory to install and adjust machine.
We have after-sell service to supply all life-time machine maintance and repairment service.
FAQ:
Q: Are we a trading firm or a manufacturer?
A: We are a MANUFACTURER.
Q: What’s our payment mode?
A: L/C, T/T
Q: Can machines be customized?
A: YES.
Q: How long is the warranty period?
A: 12 months.
