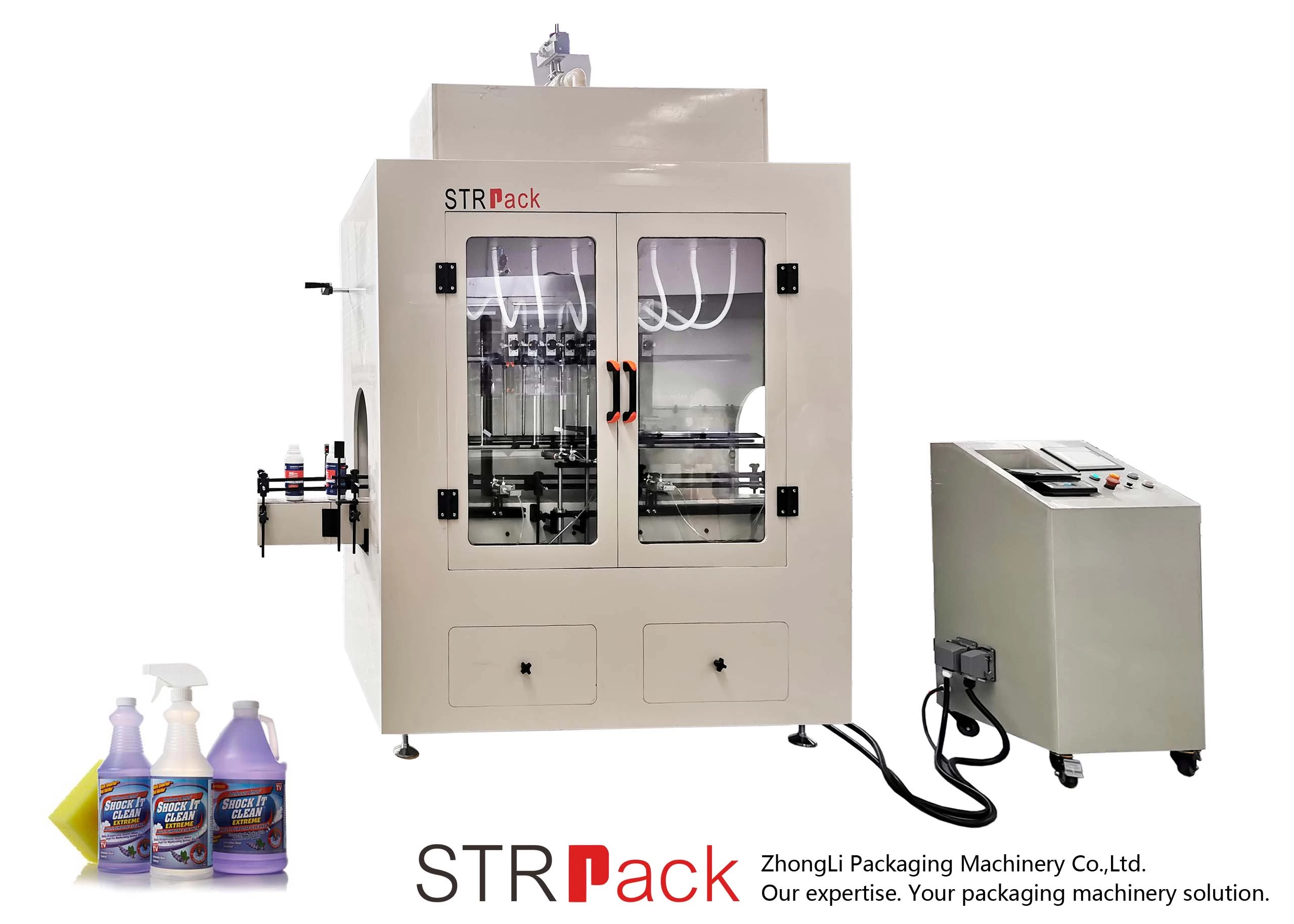

Linear Type Corrosive Liquid Filling
Machine
Brief Introduction
This gravity type filling machine is
special made for filling corrosive liquid such as bleach, sulphuric acid,
84 disinfectant, gel water, toilet cleaner etc.

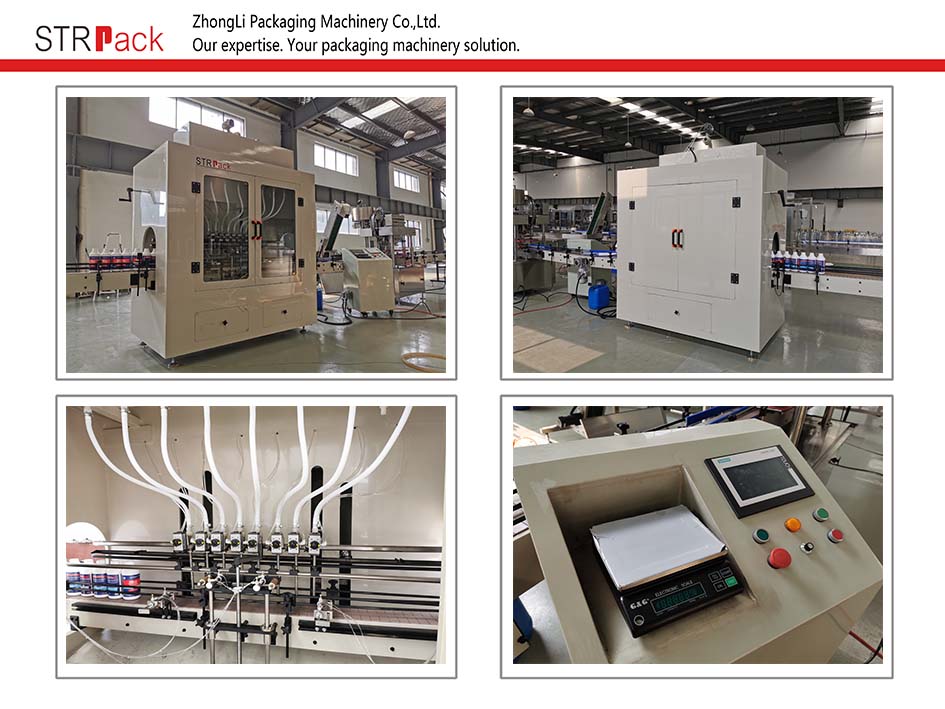

The machine is made by in-line structure ,
filling head quantity can be custom-made according to different production
capacity such as 6/8/10/12/16 /20 heads.
The filling volume is controlled by filling
time, with weight feedback of each filling nozzle to PLC to assure good filling
accuracy.
All product contact parts is made with
strong plastic material to avoid corrosion.
Features:
◎Heavy duty plastic construction for
filling corrosive liquid
◎Filling range from 100-5000ml
◎Separate electric box away from filling
area for better protection
◎Liquid receive tray is available in case
any dripping from filling nozzle.
◎Angled filing nozzle for filling angled
neck bottles(Optional Item)
◎No bottle no fill.
◎Controlled by PLC and operation through touch screen.
◎Easy change over to different size bottles.
◎Quick-install connecting parts , it is easy to disassemble
and clear machine.
Main Parameter:
|
Model
|
Unit
|
STRFGC
|
|
Nozzle Number
|
PCS
|
6
|
8
|
10
|
12
|
|
Filling volume
|
Ml
|
100-5000ml
|
|
Production capacity
|
Bottle/h
|
1000-3000pcs(Depends on filling volume)
|
|
Quantitative error
|
%
|
100-1000ml:≤±2% , 1000-5000ml:≤±1%
|
|
Voltage
|
V
|
AC220V 380V ±10%
|
|
Consumed power
|
KW
|
1.5
|
1.5
|
1.5
|
1.5
|
|
Air pressure
|
MPA
|
0.6-0.8Mpa
|
|
Air consumption
|
M3/min
|
0.8
|
1
|
1.2
|
1.2
|
After-sales Service:
(1) Under stable voltage, the machines' quality that we sold will be guaranteed for 2 year
(2) Long time technology will be supplied.
(3) We can dispatch our engineer to your side for installing and debugging machines. Engineer's round-trip tickets, accommodation, and your side traveling fee will be charged by you. Engineer's salary will be USD100.00/day/person.
We can also supply training process for your engineers who come to china, so you can fit and debug machines by yourself.
