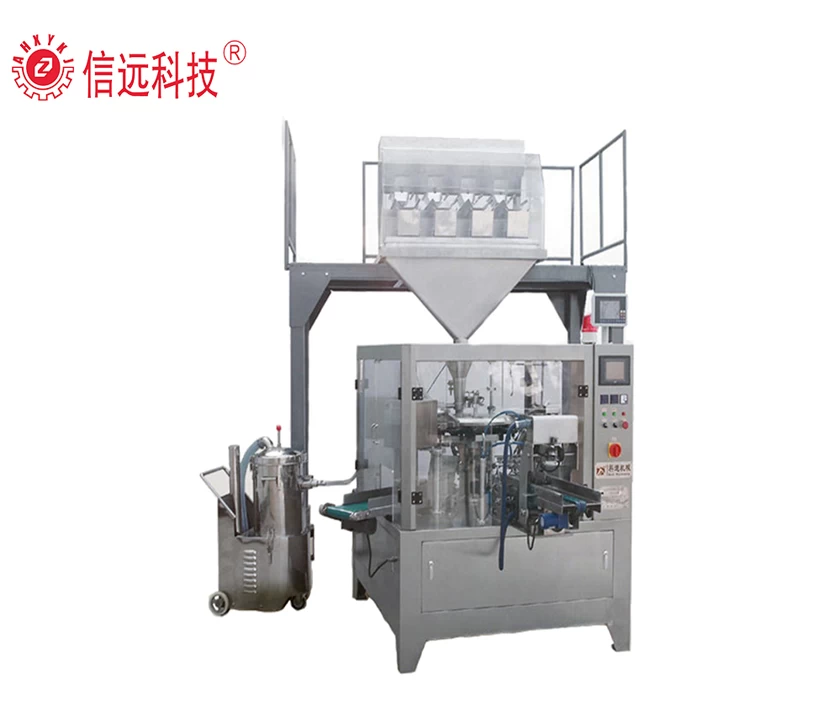

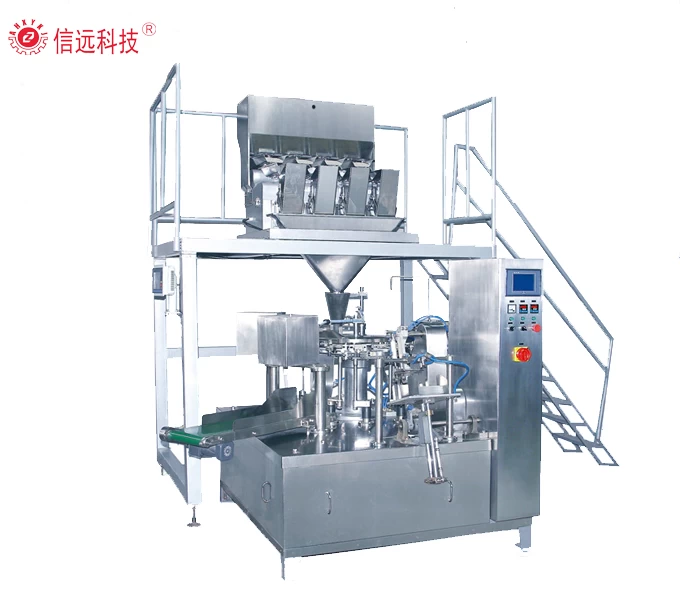

Linear weigher chicken essence food additive washing powder packing machine is used for automatic weighing and packing for granule type material in premade bag. It can achieve bag picking, material weighing, filling, coding and sealing fully automatically under set parameter. This packing machine can suit for various bag size easily by one button press, then the machine will adjust automatically. It is normally matched with linear weigher, output conveyor, weight checker and metal detector to form a whole production system.
-

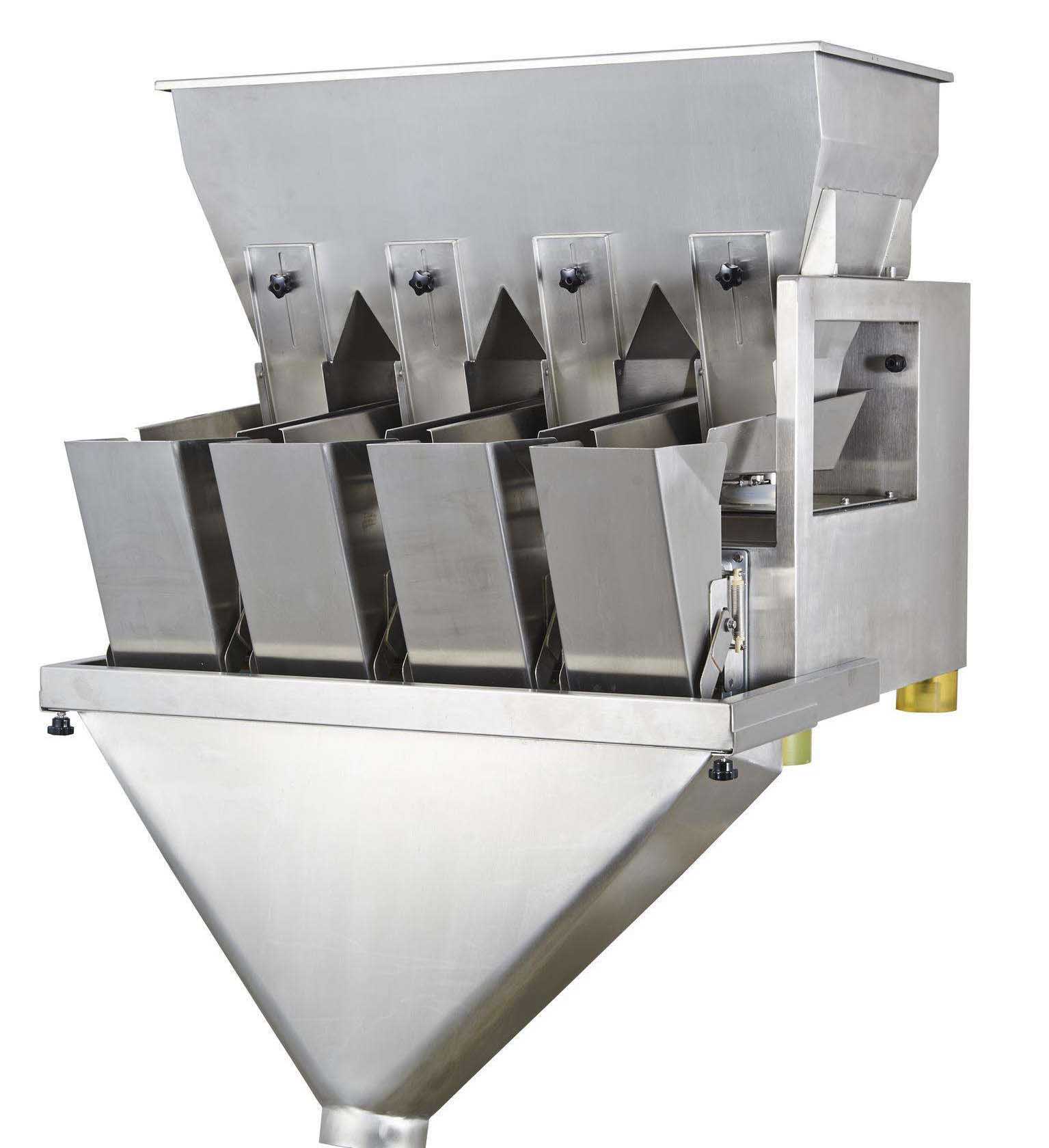

Unit configuration: multi heads weigher, premade bag packing machine, output conveyor
-
Material: contact parts S.S 304 (or S.S 316L if need)
-
Electric parts brand: Siemens/Schneider/Omron/Delta/ABB etc
-
Packing speed: (15-60)bags/min
-
Filling range: 10g--5000g
-
Applied material: washing powder, chicken essence, rice, sesame, seed and other even shape granule material.
Did you find our machine interesting?
We will help you with selecting the machine, and suggest tailor-made solutions.
notice
1. provide customized design for special requirement
2. Provide optional device as per actual need
Technical Parameter:
|
Model
|
XYG6/8-200
|
XYG6/8-250
|
XYG6/8-300
|
|
Configuration
|
Given-bag packing machine
+Auto-filling machine
+Conveyor
|
|
Packing speed(bag/min)
|
25~60
|
20~50
|
|
Measuring range(g/bag)
|
5~1000
|
5~1500
|
100~2500
|
|
Measuring accuracy
|
±1% to ±2%
|
|
Bag style
|
Four-side-sealing bag/Doypack/Handbag
/Zipper bag/Paper bag/others
|
|
Given-bag size(mm)
|
W:100~200
L:100~350
|
W:180~250
L:100~350
|
W:200~300
L:100~450
|
|
Power rate(kw)
|
2.5
|
2.5
|
3
|
|
Optional device
|
Transfer conveyor/Weight sorter/Metal detector/Automatic packaging, sealing,packing,and stacking system for secondary packaging
|
Transportation&After Service
◎All the machine shall be packed in Export wooden box;
◎Engineers are available to do service abroad;
◎Training &Technical instructing lessons shall be provide during installation;
◎Video instruction installation is also available if customer have professional technical engineers;
◎One year warranty is provided for customer.
