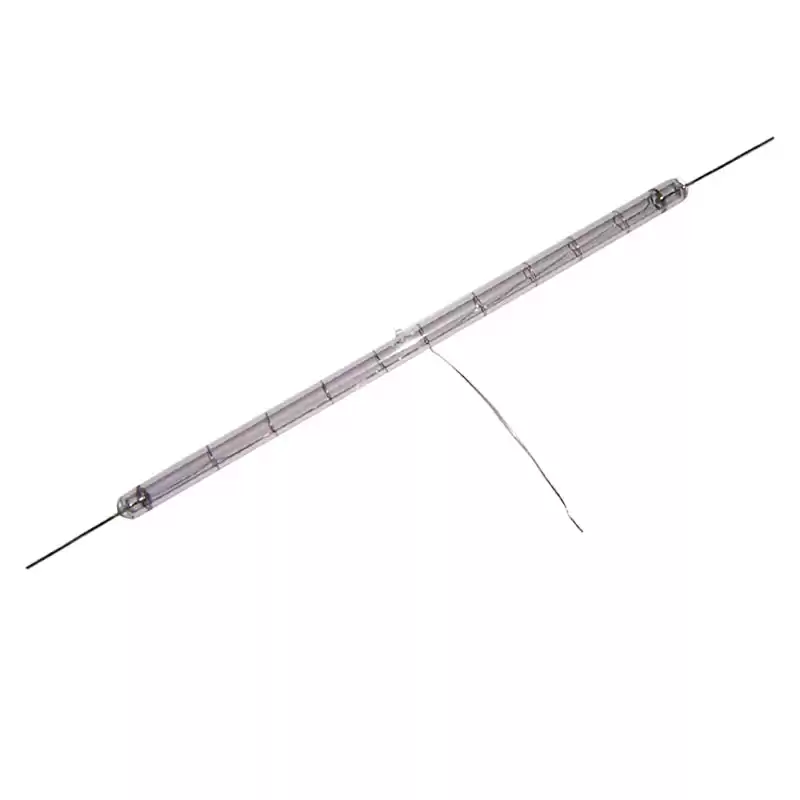

Linear Xenon flash tube for Stage Chapter Engraving machine

World-Class Industrial design & manufacturing the top quality xenon flash tubes: Linear type, U-shape, Spiral Shape, Round(Circle Circular) Shapes for Stroboscopic Applications, Warning  beacons  Light, Traffic Violation Lighting Sensor Camera, professional photography, Mechanical Photography,  Airport Runways, Sterilization and Disinfection of air and water sources,and the IPL for hair remove machine device,the Beauty Apparatus and Freckle Removal Equipment, Medical Devices, laser pumping, colorimetry, high quality Electronic Beauty Laser Pulse Continuous Xenon Lamp, etc.  They  are  also  widely used at Stroboscopic stage flicker light, police car warning light, emergency flashing beacon light, signal light, etc. Our Xenon Flash Tubes are serving thousands of customers around the world, including: Special professional Lighting Manufacturers, Research Institutes, Universities, wholesalers and retail stores with full product series in many shapes and dimensions, signal and timing, warning beacons, as well as complementary components such as Trigger Coils, transformers, capacitors and necessary accessory elements.




The Xenon Flash tube are the most powerful & bright Warning Light, much higher efficiecy than any type of LED warning light, popular for the Police Car Warning Light, Airport Runway, and Skyscraper warning lightsNavigation lighthouse indicator. They have Played huge economic and social benefits in the past decades.


Specification:

1.  6Ws, 10Ws,15Ws 30Ws are popular  option, Max. arrive 100Ws, widely working voltage from Minimum Anode Volate 190V/260Vdc, maximum  anode voltage arrive 500Vdc, nomal working anode voltage around 300V~360V.

2.  Envelope material from Quartz Glass for top quality with over 10,000,000 flashes life span warranty.

3.  Over 25 years of design & manufacturing experience, within one day samples building faster service

4.  Customized any dimensions & parameter for different requirement

5.  Full product series from: Linear type, U- shape, Spiral/helical Shape, Round Circular Shape Xenon Flash Lamp for whole lighting industrial.


MINI Linear CH L3635 For Reference:

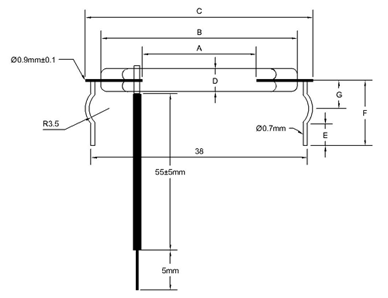

                                                                            DIMENSIONS

Dimensions    A

20±1mm

Dimensions    B

34.5±2mm

Dimensions    C

40±1mm

Dimensions    D

Ø3.6±0.2mm

Dimensions    E

3±0.5mm

Dimensions    F

11±1mm

Dimensions    G

5±0.2mm


                                                                        SPECIFICATIONS

Rating Power

1.2W

Normal flash energy

1.2Ws

Normal working Anode Voltage

330Vdc

Max. Anode Voltage

380Vdc

Min. Anode  Voltage

220Vdc

Min. Trigger Voltage

3KV

Normal working Capacitor

22uF

Frequency

1Hz

Working Temperature

-15℃~ 60℃

Life

> 3,000,000 Flashes


Standard of Functional Test

No.

Criterion of

Testing Meter

Remarks

1

<= 5kohm

Model MF

100% check during processing

2

Min flash voltage <= 220V at the beginning and after the endurance test

Voltage testing machine

100% check during processing

3

Blue means“pass” while green and no color mean“reject”

Violet machine

100% check before packaging



REMARKS:


1.   Material:Bohemian glass
2.   LEAD WIRE:Nickel
3.   Warranty:Free replacement—Leak Xenon, Broken Glass tube before assembling to your device, or not flashing without any damage.
4.   Electrically conductive or Wiring optional
5.   Packing:Tray Packaging, 100pcs/box, 2000pcs/CTN
6.   Deliver y time:3 weeks (20K pcs)
(First order 4 weeks, samples 2 weeks( need to design a new Mold to bend the insert legs 100% exactly as customer demand)
