Product Advantages:
The battery system main using Solar power system for Family house. It also have a with to controller the
battery easily and protect our Household application timely.
Feature:
• Iron phosphate-lithium power battery
• Long warranty period:2 years
• Higher energy density, smaller volumn for household.
• Support connected in parallel mode for expansion
• Photovoltaic system: This battery pack is designed for household photovoltaic systems.
• Battery management system (BMS): The battery packs built-in BMS monitors its
operation and prevents the battery from operating outside design limitations.
• Expandability: This battery pack can be easily expanded by adding expansion battery packs
in parallel connection.
Data Sheet
|
Capacity
|
200AH
|
|
Voltage
|
24V
|
|
Rated Voltage
|
25.6V
|
|
Charge Voltage
|
28.8V
|
|
Discharge Voltage Range
|
24-28.8v
|
|
MAX.Charge&Discharge Current
|
120A
|
|
Rated Charge&Discharge Current
|
60A
|
|
MAX.Output Power
|
2500W
|
|
Rated Output Power
|
1250W
|
|
DOD
|
0.9
|
|
Modules Connection
|
1-6 in parallel
|
|
Communication
|
CAN & RS485
|
|
Ingress Protection
|
IP21
|
|
Cycle Life
|
>3000,@25°C
|
|
Working Temperature Range
|
-10-50°C
|
|
Net Weight(kg)
|
37.3kg
|
|
Gross Weight(kg)
|
39.8kg
|
|
Dimension(MM)
|
485*370*240mm
|
Product Details
INTRODUCTION TO PARALLEL CONNECTION:
Note: One group of LPBT24200 can be stacked up to 4 layers, and up to 6 in parallel connection One group of LPBT48200 can be stacked up to 2 layers, and up to 6 in parallel connection.

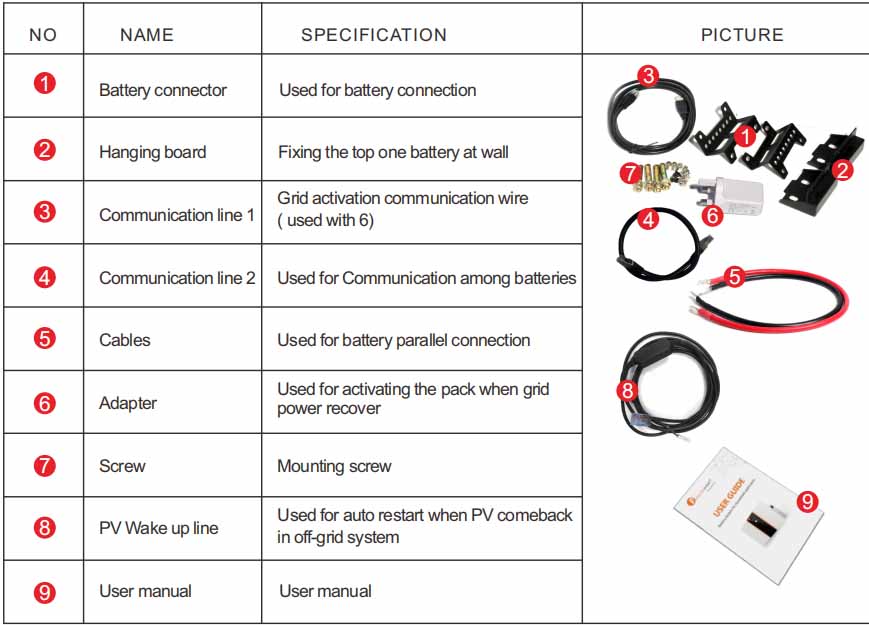

Unpacking and Inspection
Before installation, please inspect the unit. Be sure that nothing inside the package is damaged. You
should have received the following items inside of package.

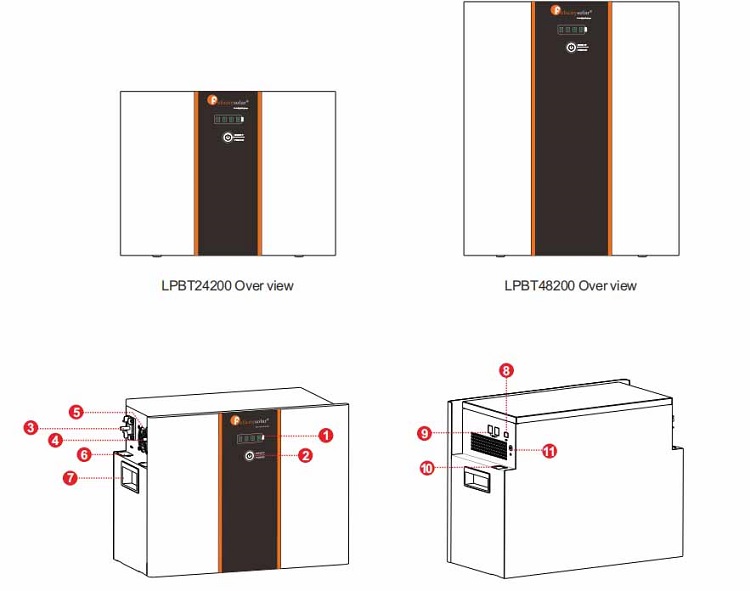

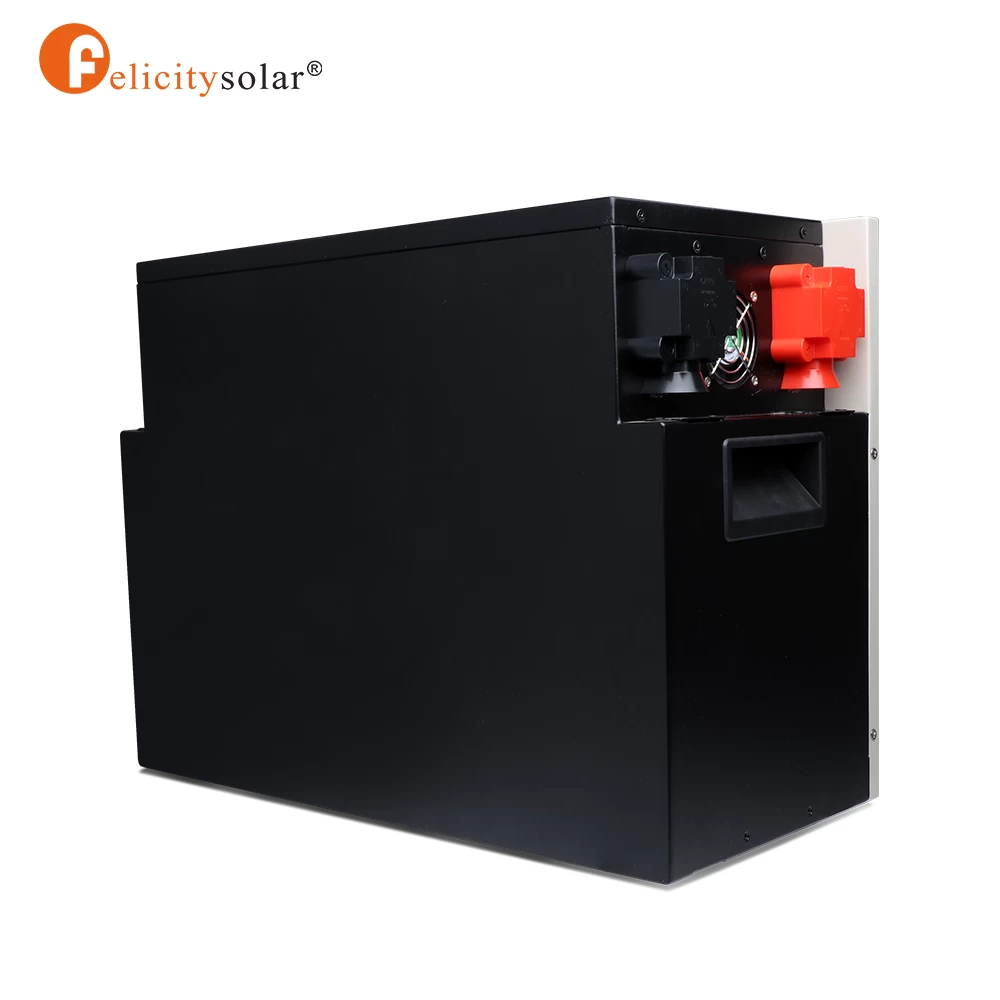

Product Over View
1. LED display 2. Power On/Charging indicator 3.Battery Negative 4. Battery Positive + 5. Fan
6. Parallel threading hole 7.Handle 8. SW 9. RS232 Communication port 10.Outlet 11. Earth wire
