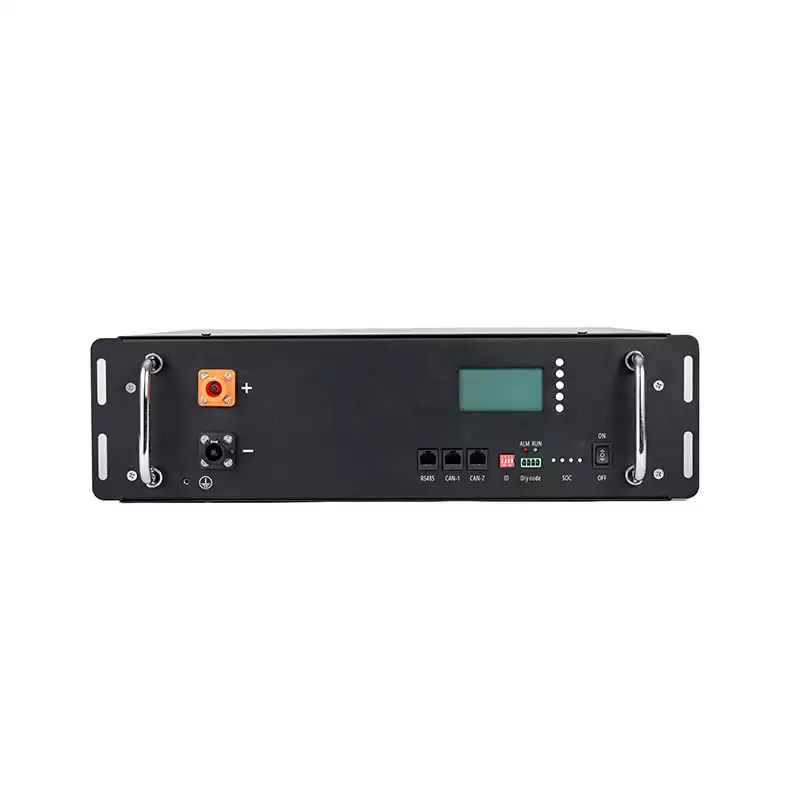

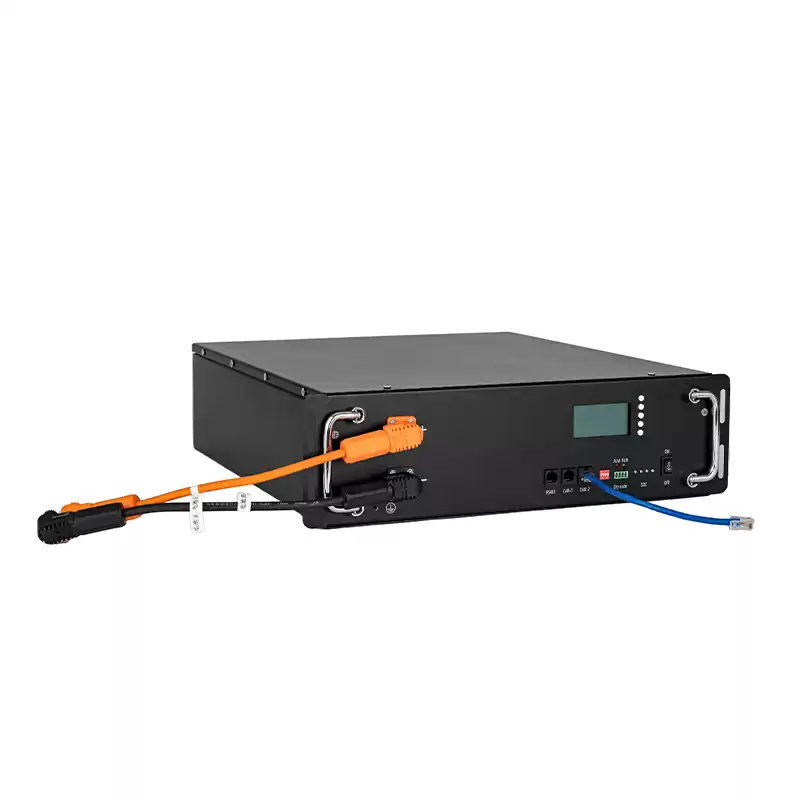

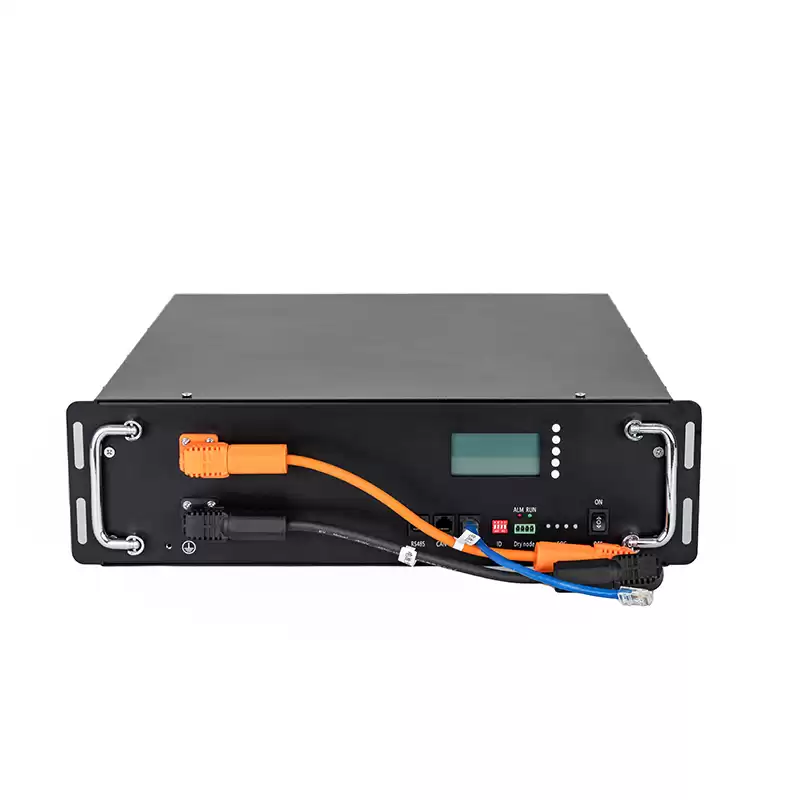

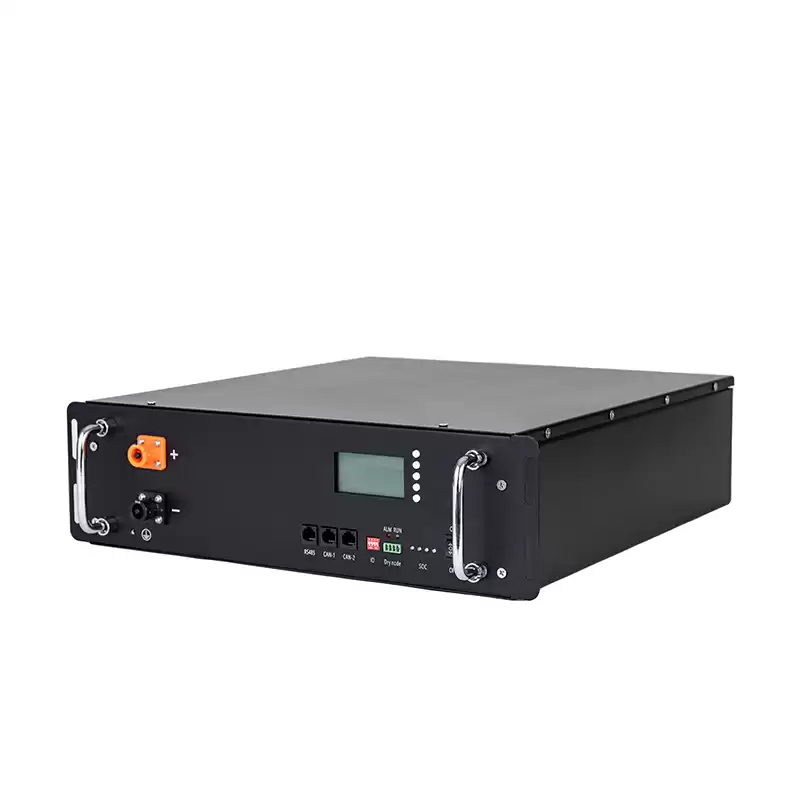

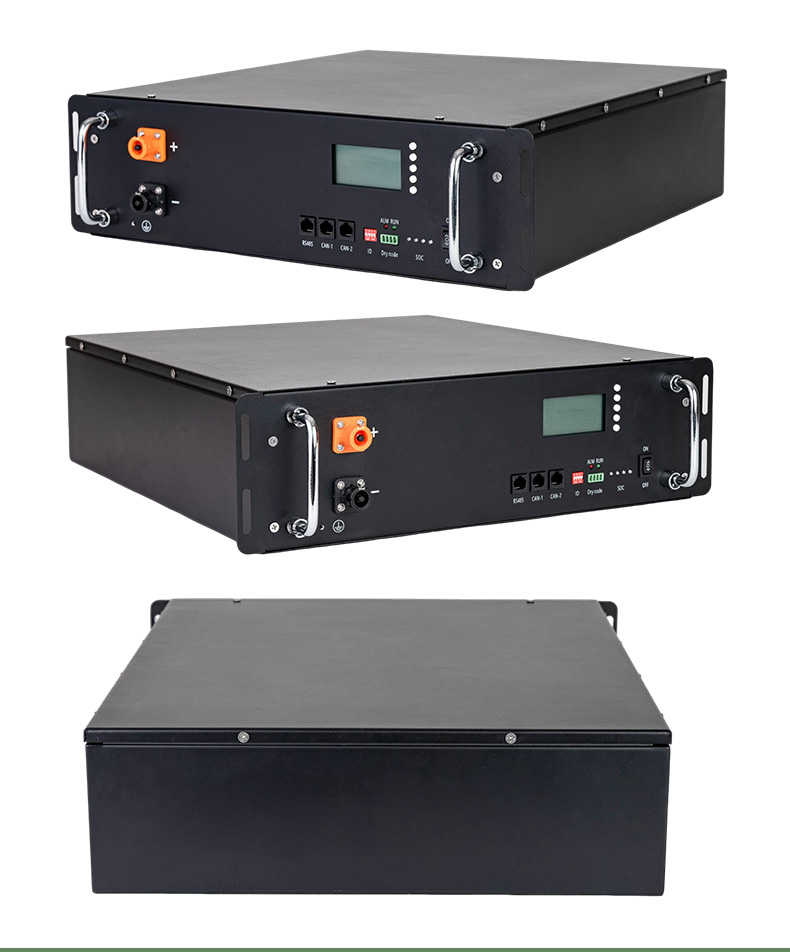

Lithium Battery 5Kwh 48V 51.2V 100Ah Server Rack Battery

This battery pack System, is applicable both for residential and commercial energy storage system, which is assembled with 3.2V 50Ah lithium iron phosphate cell in 16S2P configuration, And intelligent BMS form 51.2V100Ah lithium battery system. Each pack support 16packs in parallel to easily expand capacity. Do not mix parallel the battery packs of different brands or models.

  • CertificateCE FCC ROHS ISO9001
  • Warranty5 years
Facebook Twitter Pinterest LinkedIn 分享
Product Paramenters
Item Highlight
* High safety lifepo4 battery
* Ten year warranty
* Multi-level of protection
* High energy density and low internal resistance
* Support 485 and CAN communication
* Competitive Price (Order large quantity of this 48v lifepo4 battery pack, contact the sales to get the lowest price )





Basic parameters
Product model
FLB-Z13-YH
Type of electric core
Yiwei LFP square electric core
Core specification
3.2V100Ah
Number of battery modules
Support multiple battery boxes in parallel at most
Rated capacity
100Ah
Rated total energy
5.12kWh
Rated voltage
51.2V (48V optional)



Electrical parameters
Voltage range
43.2-58.4V
Standard charging current
0.5C @ continuous
Maximum charging current
1C @ pulse
Standard discharge current
0.5C @ continuous
Maximum discharge current
1C @ pulse








Structural parametersr
Weight
40kg
Size(W*H*D)
482x130x480mm
Protection grade
IP54
Cooling mode
 natural cooling


Ambient temperature
Charging
0℃-55℃
Discharge
- 20℃-60℃
Storage
- 10℃-45℃
Operating humidity
5-95%, relative humidity
Communication mode
CAN,RS485,RS232
Alarm and protection
 with

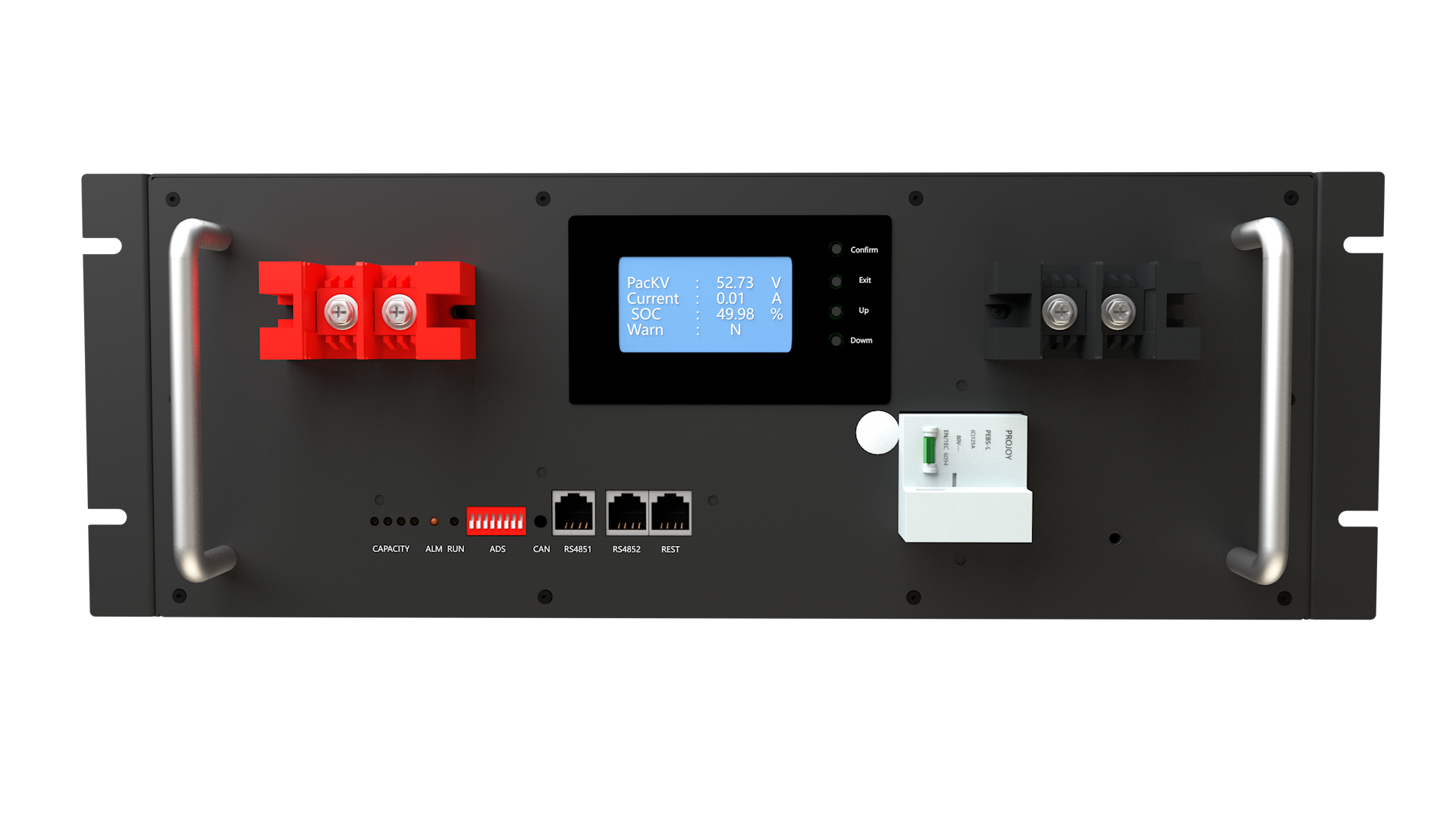

Indicator status
alarm/operation/SOC
Installation mode
rack mounted
Products Description
