Lithium Battery Electrode Slitting Machine (Max.500mm Width) for Electrodes of Cylindrical and Pouch Battery
SPECIFICATIONS
1 TOB-FT-500 Battery electrode slitting machine is a semi-automatic slitting machine for preparing electrode of cylinder batteries and prismatic batteries in R&D laboratories and production line.
2 The slitting machine can slit electrode with width up to 500mm, and with finished slitting width from 20mm to 500mm with different model cutter blade.
3 This equipment is suitable for rechargeable lithium batteries cathode and anode electrode of the longitudinal cutting, the electrode of the base material can be aluminum foil and copper foil, sliced edge tidy, high dimensional accuracy, no burr, it is an important equipment in plate processing.
|
Model
|
Battery Electrode Slitting Machine TOB-FT-500
|
|
Source voltage
|
AC 110V-220V, Customized, 50HZ
|
|
Power
|
800W
|
|
Warranty
|
One year limited warranty and lifetime support
|
|
Slitting mode
|
Single knife hobbing
|
|
Knife type
|
Upper and lower round knife
|
|
Slitting width
|
20-500mm
|
|
Slitting thickness
|
100-300um
|
|
Hob diameter
|
Φ80 mm
|
|
Slitting speed
|
10m/min, Adjustable
|
|
Dimension(L*W*H)
|
610*610*1100mm
|
|
Weight
|
200kg
|

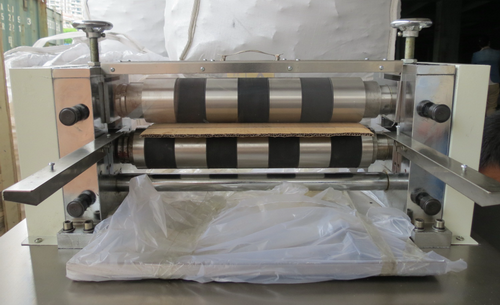

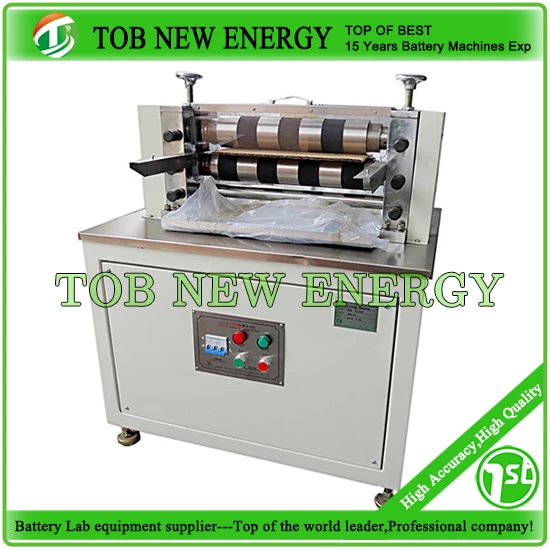

PRODUCT DISPLAY

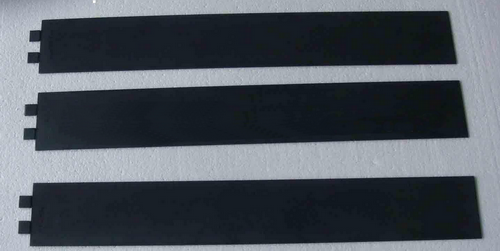

BATTERY ELECTRODE SLITTING PROCESS
PACKAGE
