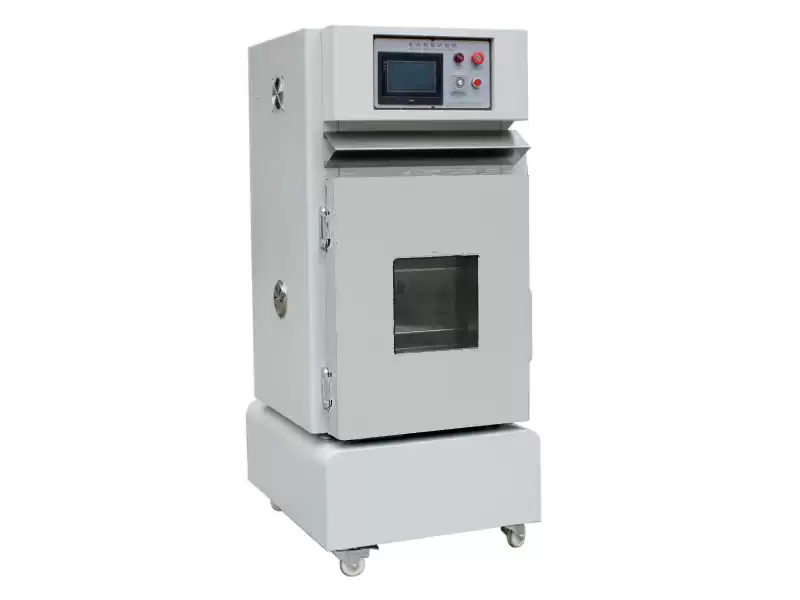

Lithium Battery External Short Circuit Test Equipment
Lithium ion battery cells short circuit tester is utilized to simulate an outside short circuit at specified temperature in the testing chamber for analysis of safety performance.
Cells and batteries satisfy this need If their exterior temperature does not go beyond 170 ℃ as well as there is no disassembly, no rupture as well as no fire during the test and within 6 hrs after the test(based upon UN38.3).
Standards
IEC62133-2017, UN38.3, UL 2054, UL 1642, GB 31241-2014, SAND99-0497, UL 2580-2013, GB/T 18333.2-2015, QC/T 744-2006, QC/T 743-2006, QB/T2947.3-2008, YD/T2344.1-2011, YD∕T 983-2013, QZTT 2217.3-2016, QZTT-2218.3-2016 etc.
Key Parameters
|
Model
|
AT-L5002
|
|
Working voltage
|
AC 220V 50Hz/60Hz
|
|
Impact voltage
|
AC 1kv/1.2-50μs <peak value> 1min
|
|
Operation characteristics
|
Cold state pull-in voltage ≯66％Us
Cold state releasing voltage ≯30％Us,≮5％Us
|
|
Short circuit mode
|
Pneumatic suction
|
|
Maximum measurable battery voltage
|
100V
|
|
HVDC response time
|
≤5μs
|
|
Max. circuit current
|
1000A
|
|
Internal resistance of device
|
80±20mΩ or 5mΩ specified
|
|
Remote control distance
|
7 meter
|
|
Test temperature control range
|
RT+10~100℃
|
|
Current, voltage, temperature acquisition channels
|
Total 6 channels (Standard)
Current 1 channel
Voltage 1channel
Temperature 4 channels
|
|
Actuation time
|
Response time / releasing time ≯30ms
|
|
Mechanical life
|
300,000 times
|
|
Temperature control accuracy
|
0.1℃
|
|
Temperature uniformity
|
±2℃
|
|
Temperature fluctuation
|
±0.5℃
|
|
Interior test chamber size
|
500*500*500mm
|
|
Machine overall dimension
|
950*900*1650mm
|
|
Working environment
|
Temperature: 5℃~35℃ humidity: 20~85%RH
|
|
Short Circuit Mode
|
Room temperature short circuit (20±5℃)
High temperature short circuit (55±5℃)
|
|
Supply power
|
AC220V , 50Hz 3.3KW 15A
|
Amadetech is able to supply various Lithium battery test equipment covering UN38.3 test series.
