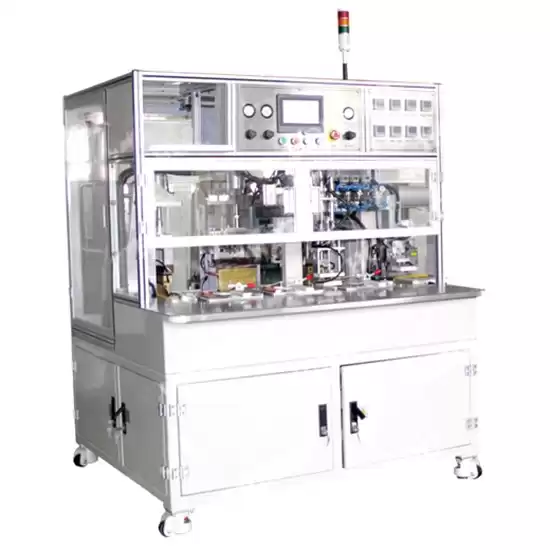

Lithium Battery Heat Sealing Machine Heater for Pouch Cell Production
Functions
● This equipment is suitable for the flexible packaging lithium batteries semi-automatic packaging. Mainly included the top sealing, lateral sealing, Angle sealing, insulation test, fine exactly the side sealing, and other functions.
Features
● Transfer jig, servo drive;
● Under the top sealing, side seal head is fixed, the seal is more stable;
● Insulation test can be adjusted independently;
● Top sealing, lateral sealing head can auto correct;
● Battery secondary positioning, exact edge sealing side;
● Batteries transfer, electric driving.
Technical Parameters(for reference)：
|
ITEM
|
DCF150
|
DCF200
|
|
Measure
|
1300*1650*1580mm(L*W*H)
|
1350*1850*1580mm(L*W*H)
|
|
Weight
|
About 1T
|
About 1T
|
|
Power
|
AC220V/50HZ, 3.5KW
|
AC220V/50HZ, 3.5KW
|
|
Air source
|
≧0.6Mpa,100L/Min
|
≧0.6Mpa,100L/Min
|
|
Applicable range
|
Top seal65-150mm, side seal50-145mm
|
Top seal80-190mm, side seal60-180mm
|
|
Capacity
|
100-300EA/H
|
100-300EA/H
|
|
Action
|
≧99%
|
≧99%
|
