Lithium Battery Roll Press Machine for Bttery Electrode Pressing
Product Specification
1 TOB-GYJ-100C-V Lab Roll Press Machine is a compact precision Hot Roll Press Machine . It has dual rollers of 100mm dia. x 200mm width and dual grade micrometer. This lab roll press machine is an ideal Hot rolling press for adjusting thickness and increasing active material density of the electrode in Li-Ion batteries research after coating and drying.
2 This model Electric Calender is mainly used for small electrodes in the rolling process, suitable for use by universities and enterprises experiment line, make the battery electrode compression molding, increased density.
3 It has a pair of 200mm width steel rollers. Such a roller can be heated up to 80℃.
4 The special customized vertical roller design, suitable for vertical coating process. We can customize the machine according to your design and requirement.
|
Model
|
Φ100*200mm Hot Roll Press Machine TOB-GYJ-100C-V
|
|
Working Voltage
|
AC 110V / 220V,50/60HZ
|
|
Power
|
900W Total
|
|
Warranty
|
One year limited manufacture warranty with lifetime support
|
|
Structure
|
1 Heavy duty steel frame, gears and handle
2 Φ100mm Dia. x 200mm width Rollers made from hardened tool steel (HRC > 62)
with Cr electroplated coating
3 Dual micrometer for accurate thickness adjustment in range 0 - 1.5mm Maximum
|
|
Roller
|
Dimensions: 100mm(Dia.) x 200mm(W)
Material: Made from hardened tool steel (HRC > 62)
with Cr electroplated coating. With finish > 0.8
|
|
Rolling press accuracy
|
≤±0.005
|
|
Roller surface hardening
depth
|
5mm
|
|
Heating Temperature
|
10-80℃
|
|
Temperature Control Accuracy
|
+/-5℃
|
|
Max pressure
|
3T
|
|
Rolling press thickness
|
0-1.5mm adjusted with Dial gauge
|
|
Rolling press width
|
Max 200mm, Customized
|
|
Rolling press speed
|
0-20m/min adjustable
|
|
Weight
|
100kg
|

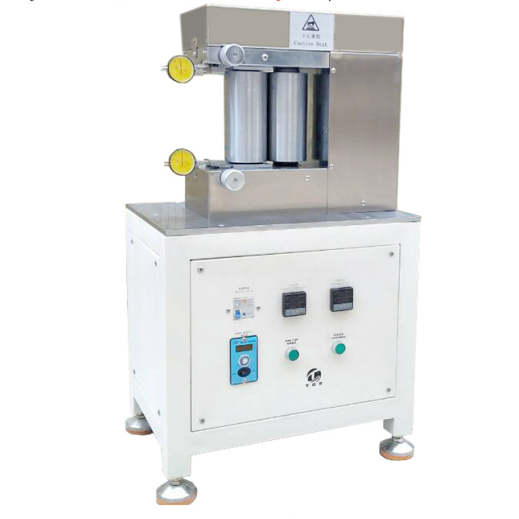

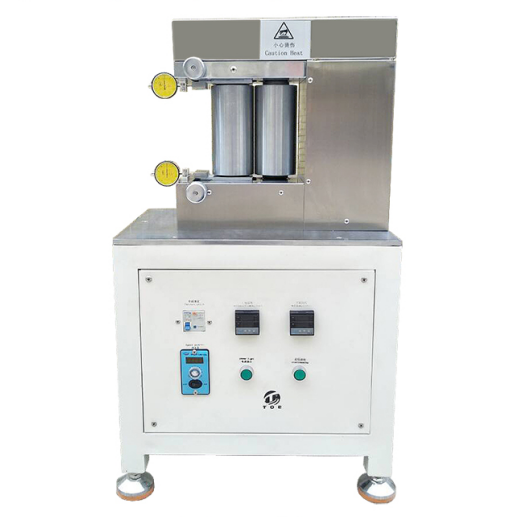

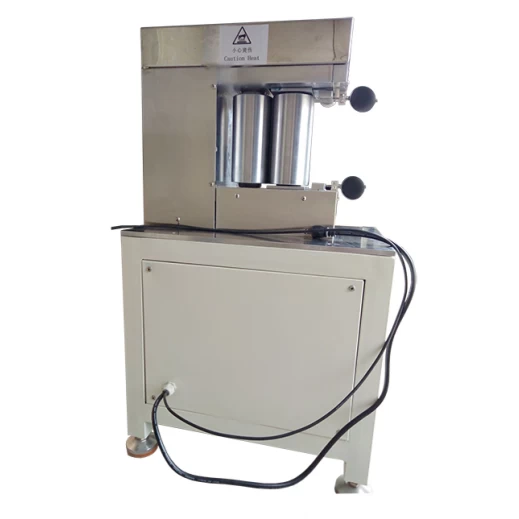

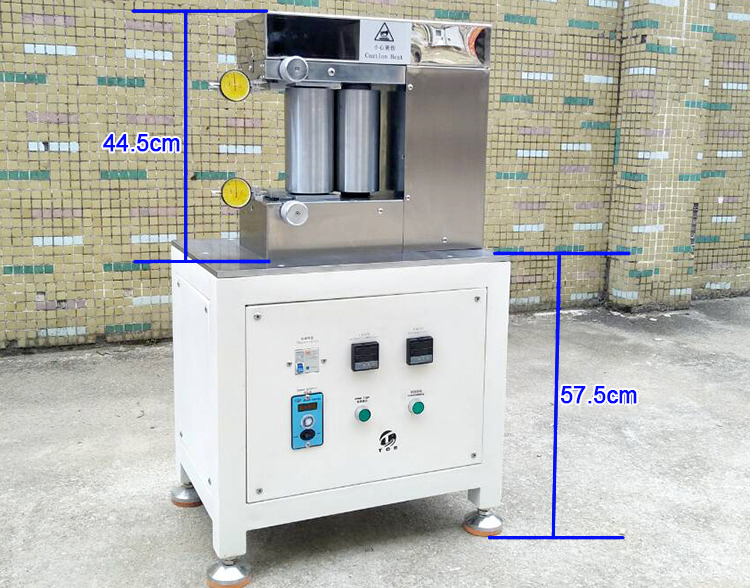

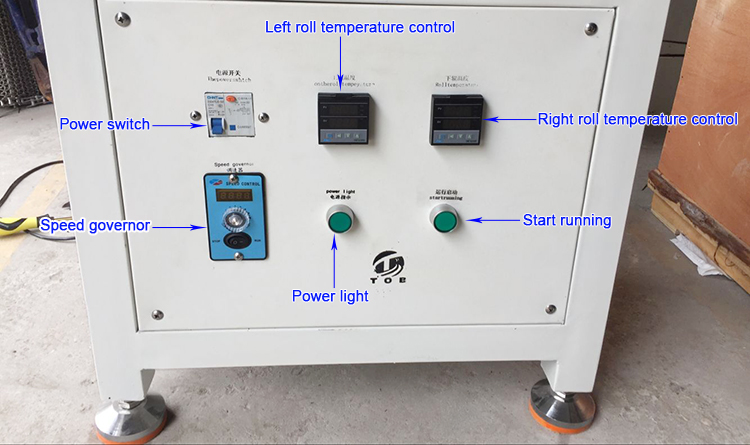

Product Image

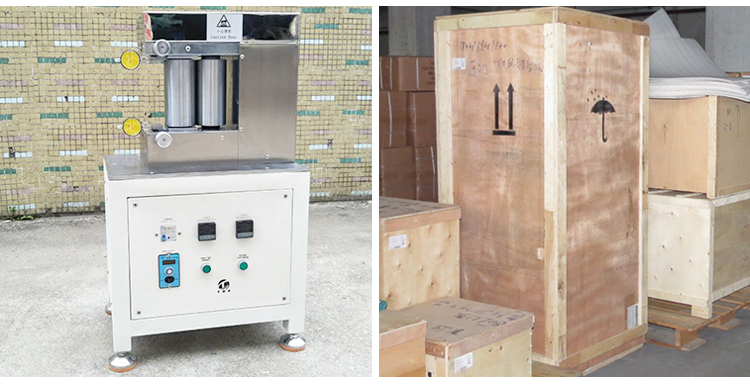

Product Packing
