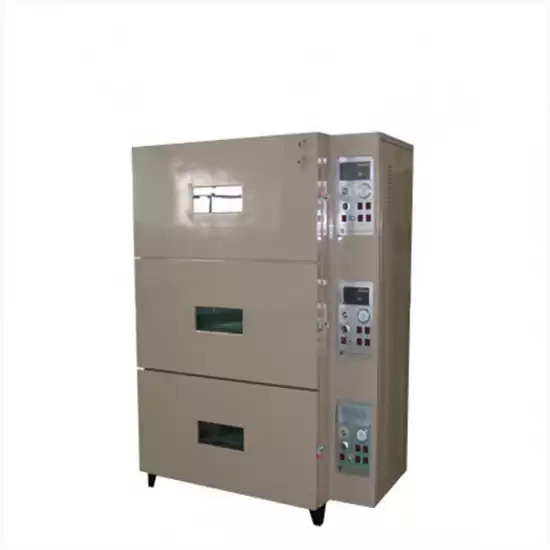

Lithium Battery Three Layer Vacuum Drying Oven
The TMAX-SBVO-03 vacuum oven is specially designed for lithium battery industry production process of vacuum drying equipment, the temperature, vacuum degree, the size of the studio and the barrier height is maximally meet the needs of the lithium battery industry.
This vacuum oven is manual vacuum and air control, it is mainly used for Lithium battery materials and electrode sheet vacuum baking.
|
Model
|
Manual Vacuum Oven For Lithium Battery TMAX-SBVO-03
|
|
Source voltage
|
AC380V, Three phase 4 wires, 50HZ
|
|
Power
|
4.5kw*3, three layers
|
|
Warranty
|
One year limited warranty with lifetime support
|
|
Max current
|
20A
|
|
Working chamber dimension
(H*W*D)
|
300*800*600mm*3layers
|
|
Insulation layer thickness
|
90mm Aluminum silicate fibers
|
|
Working temperature
|
Nichrome wire heated mode, RT+15℃~200℃, With accuracy ±1℃
|
|
Temperature control mode
|
PID adjustment, Intelligent digital display temperature controller
|
|
Vacuum degree
|
≤100pa
|
|
Inner box materials
|
3mm SUS304 Stainless steel
|
|
Outside shell materials
|
1.5mm thickness cold-roll steel sheets
|
|
Structure
|
1 Three working chamber with one vacuum hole, controlled by hand separately
2 Open door mode : Three single door, with square observe window
3 With Air switch, over current protection, Over temperature protection.
|
1 Standard exported package: Internal anticollision protection, external export wooden box packaging.
2 Shipping by express, by air, by sea according to customers' requirements to find the most suitable way.
3 Responsible for the damage during the shipping process, will change the damage part for you for free.
