Product Name

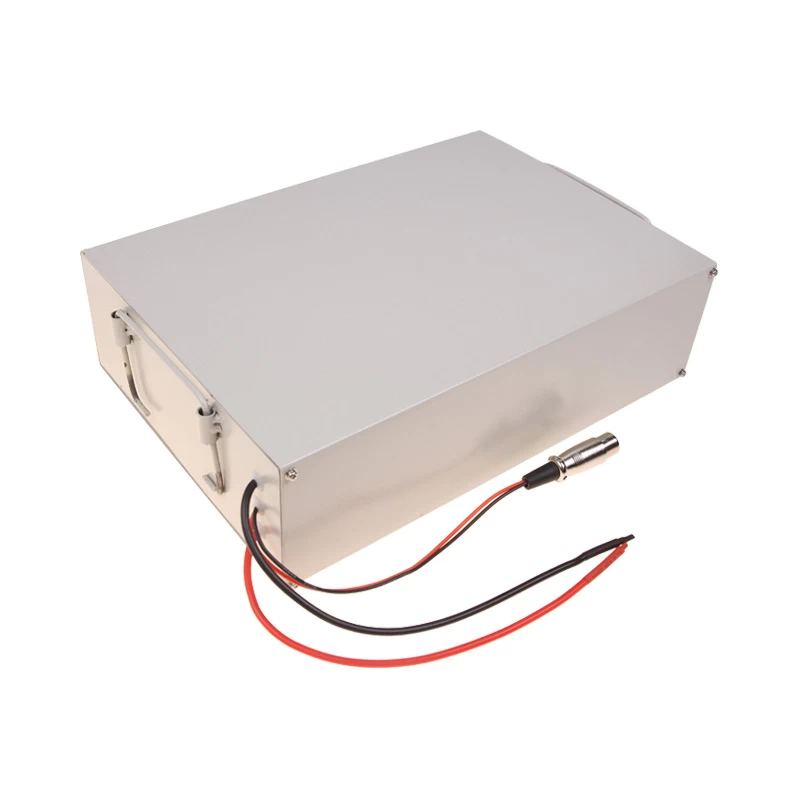

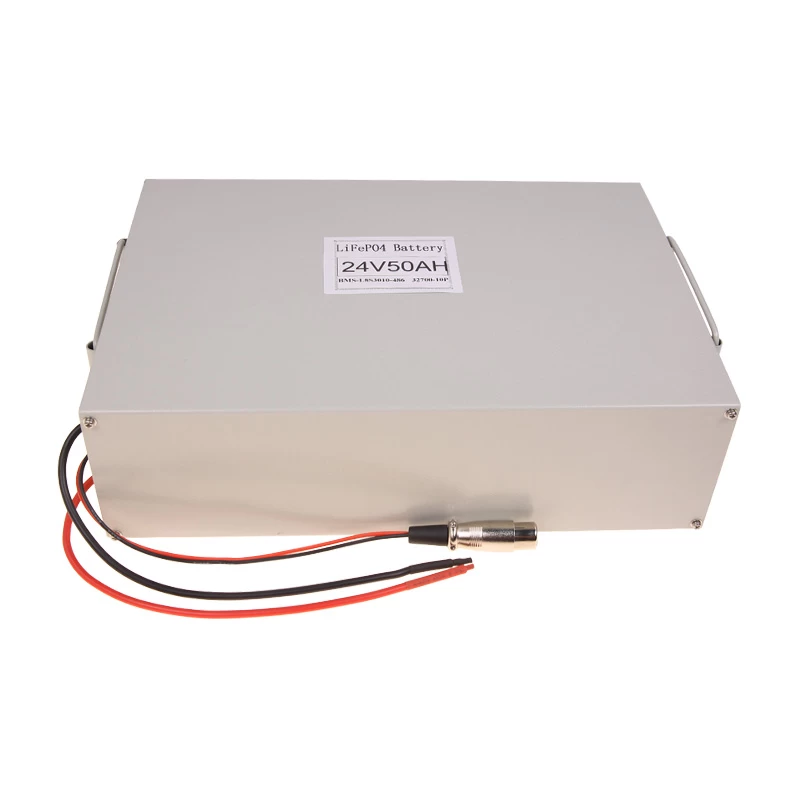

Lithium ion 24V50Ah AGV Battery Pack For 24V Lead Acid Battery Replacement
Highlight:
-
-
3500 times cycle life with 80%DOD
-
Lithium batteries are more efficient than lead acid
-
Energy density of Lithium batteries is three times higher than Lead Acid battery
Specification:
|
No.
|
Items
|
Specifications
|
|
1
|
Nominal Voltage
|
25.6V
|
|
2
|
Nominal Capacity
|
50Ah
|
|
3
|
Cell Inside
|
LiFePO4 3.2V 5Ah
|
|
4
|
Configuration
|
8S10P
|
|
5
|
Standard Charge Current
|
10A-25A (0.2C-0.5C)
|
|
6
|
Max. Charge Current
|
50A
|
|
7
|
Battery management System (BMS)
|
Full functional w/ overcharge, over-discharge, over current, short circuit protection; dynamic balancing;
|
|
8
|
Continuous Discharge Current
|
50A
|
|
9
|
Peak Discharge Current
|
100A
|
|
10
|
Full Charged Voltage
|
29.2V(3.65V per cell)
|
|
11
|
Charge Cut-off Voltage
|
27.5V (3.9V any single cell)
|
|
12
|
Discharge Cut-off Voltage
|
16V (2.0V per cell)
|
|
13
|
Net Weight
|
15.2kg
|
|
14
|
Dimensions
|
360*250*95mm
|
|
15
|
Connector
|
Anderson connector
|
|
16
|
Operating Temperature
|
Charging: 0°C ~ 45°C
Discharging: -20°C ~ 55°C
|
|
17
|
Storage Temperature
|
(Recommended to store 20 ± 5°C for long term storage)
|
|
18
|
Cycle Life
|
3500 times (80% of initial capacity at 0.2C rate, IEC Standard)
|
Application
