Product Name
Lithium ion 60V 12AH long life high power rechargeable scooter battery 800W 1000W 1600W 2000W
60V 12Ah consists of many 18650 cells mounted together in a honeycomb structure and spot welded together and hard epoxy plate with PVC shrink wrapped for extra padding.
Specification
-
HIGH POWER Li-ion PACK
-
60 volt 12Ah = 720 watt hours
-
35amp continuous 110amp burst BMS
-
High quality 18650 battery frame with Retardant and Fireproof
-
Case: Hard epoxy plate and PVC wrap
-
Standard connectors with customized 40A fuse for discharging
White 2P connector with adapter charging wire for charging
-
Light Weight: 5.26kg
-
Battery Dimensions:294mm*244mm*95mm(size can be much smaller )

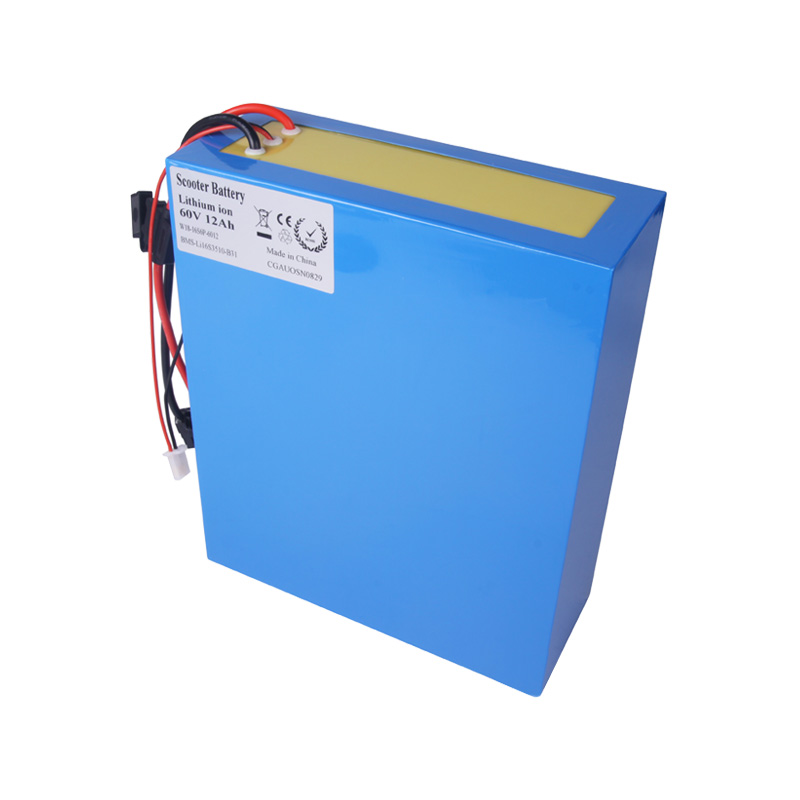

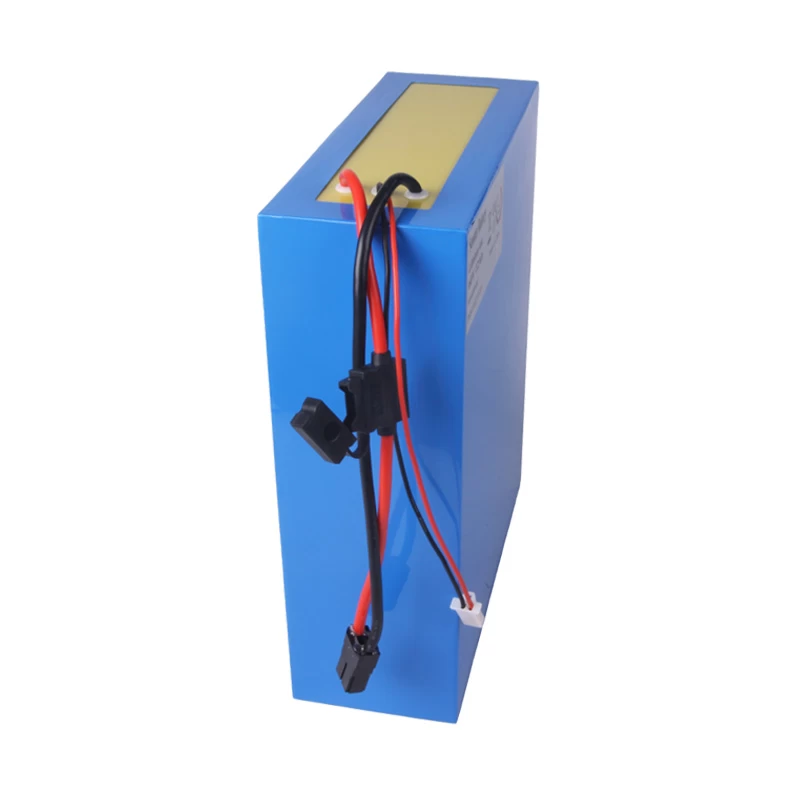

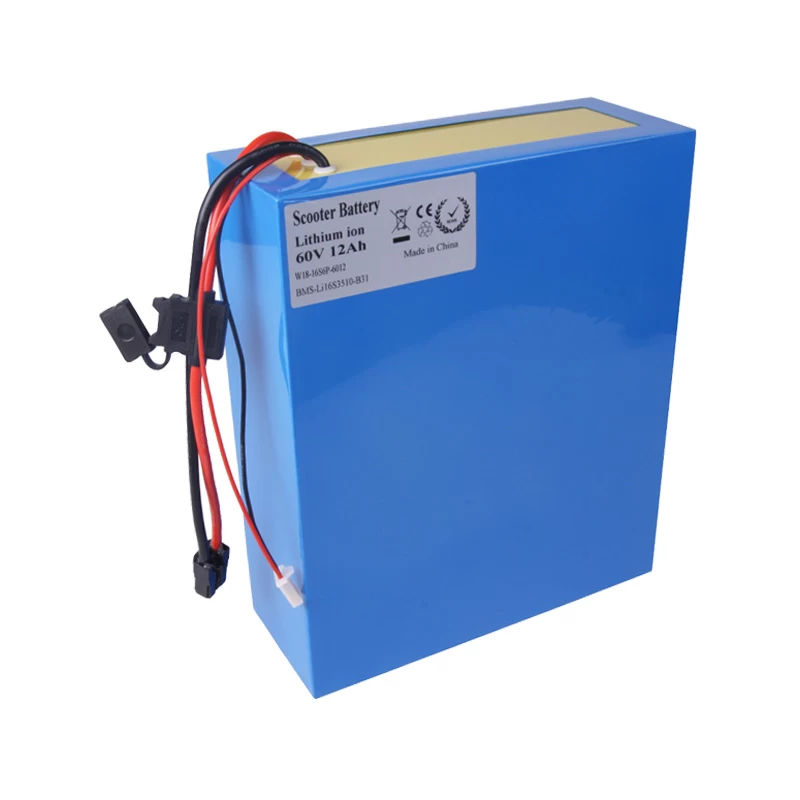

Photo of 60V 12AH battery
More Features
Cell INSIDE: Original M26- 2600mah cell,made in Korea,It offers both energy density and high amperage performance.
BMS: 35Amps
This pack comes with a very advanced BMS (battery management system) with Texas Instruments IC inside which protects the pack from damage during charge and discharge. This BMS also has temperature protection to keep the pack from getting too hot.
It is a high power BMS which will allow the pack to put out 35amps continuous and 70amp bursts ( although running this much power will drastically reduce packs life expectancy. so we recommend to not run your battery too hard if you expect it to last over a couple hundred charges.
TECHNIQUES:
Automatic spot-welding techniques;
Exquisite workmanship
QC (Quality Control):
Automatic testing for performances of battery packs before delivery;
Each battery pack with unique series number and barcode for traceablity

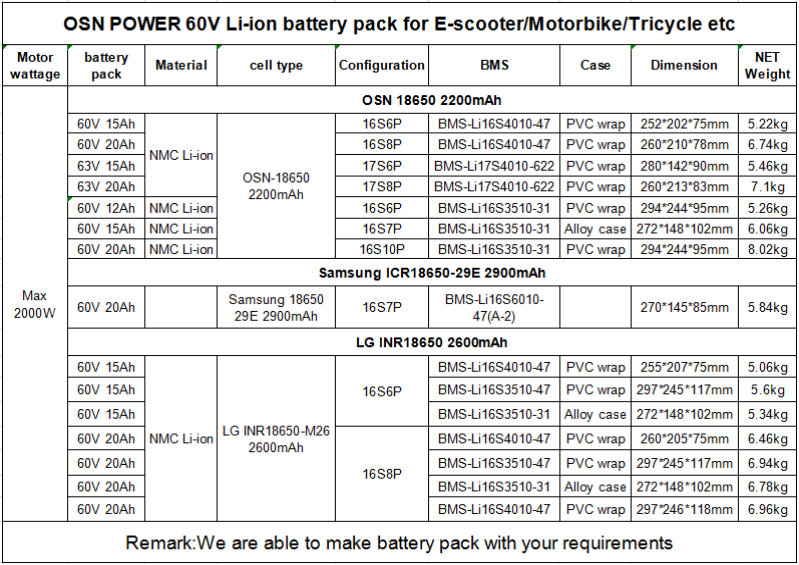

Related scooter battery list
More info
OSN Power is known for our scooter Battery packs made for 18650 cells at affordable price.
Most of our packs are made up of authentic Grade A 18650 battery cells made in Korea or Japan. Meanwhile we use top quality Chinese cells made with the best BMS and the best ingredients too.We use state of the art BMS with temp control to keep your battery as safe as possible.
More info.please see all products and contact Jenny:service@osnpower.com
