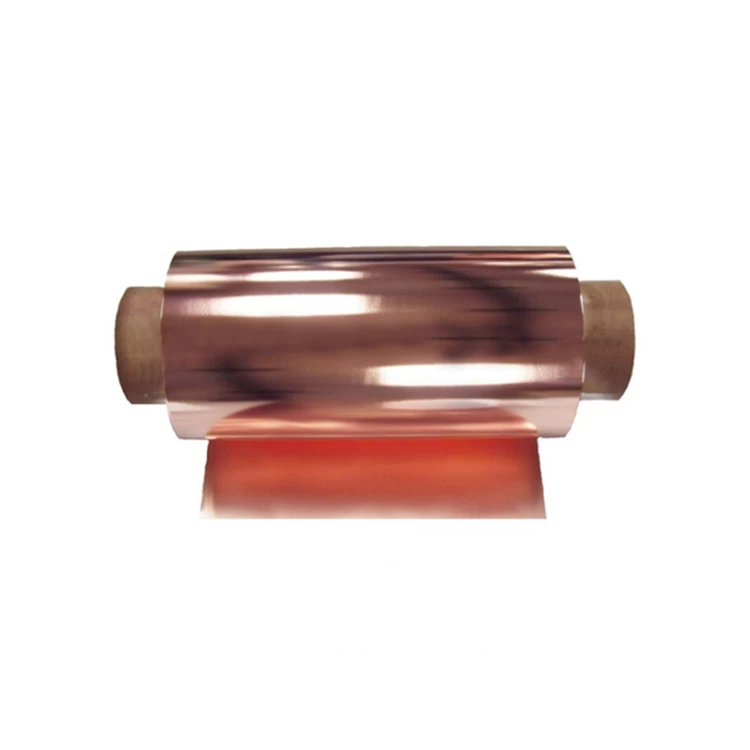

Lithium Ion Battery Cu Foil-Double faced smooth 8um

Lithium Ion Battery Cu Foil-Double faced smooth 8um.



Lithium Ion Battery 8micron Copper Foil


SPECIFICATIONS



Width:300mm  Lenght: 383m Thicness:8um Mode:T-C08-S

Copper foil for battery anode substrate

Item

Data

width (mm)

300mm

Thickness (um)

8

areal density (g/m2)

75~80

Purity(%)   More than 99.9%

Cu ≥99.9%

Fe < 0.0010%

Bi < 0.00020%

Pb < 0.0005%

Tensile strength (MPa)

≥294

Normal elongation(%)

2.5

High temperature Tensile strength180℃(MPa)

≥147

High temperature elongation180℃(%)

2
