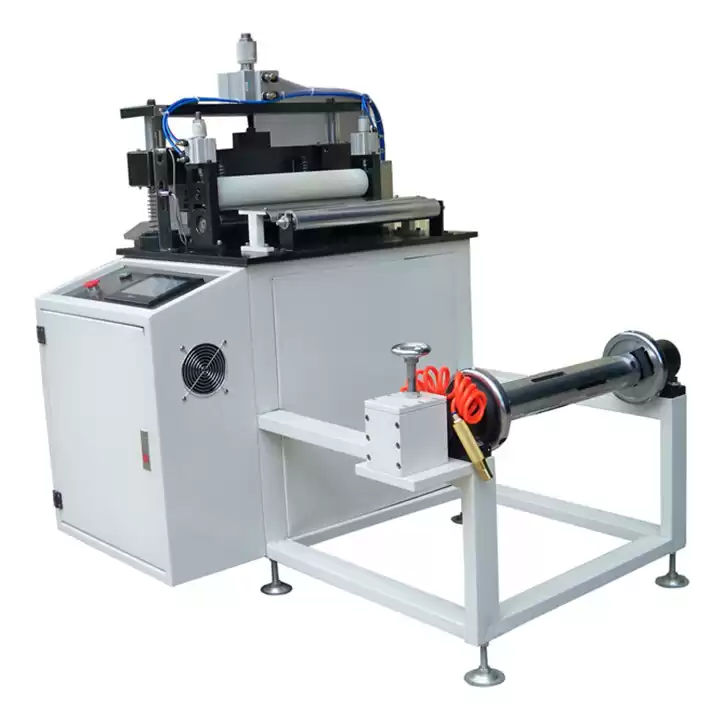

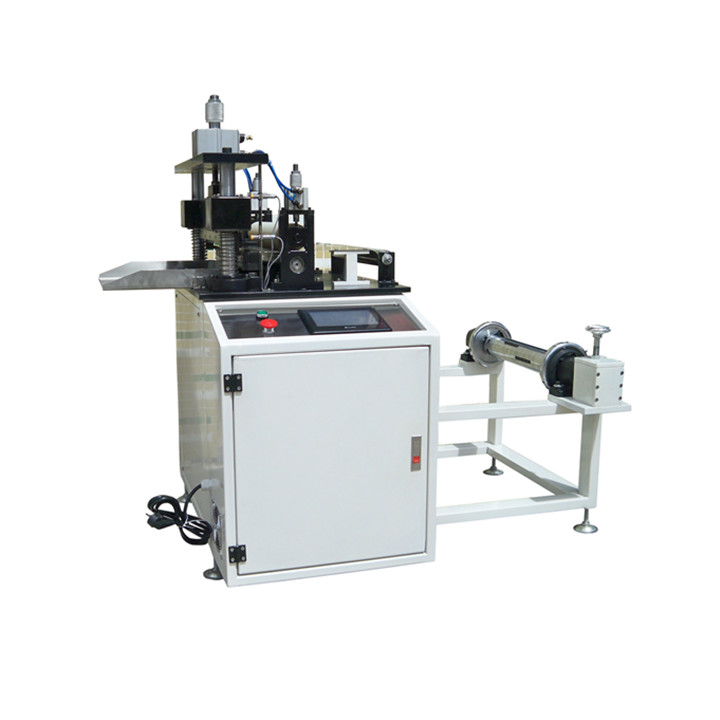

Lithium Ion Battery Electrode Cutting Cutter Machine For Battery Assembly
1. The Automatic shear cutting machine is used for lithium battery big electrode cutting after coating process or after continuous rolling press process. Cut big electrode is more easy for slitting or punching to small pieces for battery making.
2.This cutter machine can also used for aluminum laminated film cutting.
3. TMAX-EC-CM model battery electrode cutting machine has a 500mm cutting width with set cutting length, it can be used for lithium battery lab research and production line.
|
Model
|
TMAX-EC-CM
|
|
Source voltage
|
AC 220V/110V, 50HZ/60HZ
|
|
Power
|
1500W
|
|
Warranty
|
One Year limited warranty with lifetime support
|
|
Max electrode width
|
500mm(The cutting length can be arbitrarily set)
|
|
Cutting length
|
0.25-10m(adjustable)
|
|
Cutting thickness
|
80-300um
|
|
Cutting quantity
|
1-99999 free settings
|
|
Cutting material
|
Battery continuous or clearance cathode and anode electrode
Aluminum laminated film
|
|
Cutting speed
|
1-8m/min,adjustable
|
|
Cutting accuracy
|
± 0.25mm
|
|
Setting accuracy
|
± 0.5mm
|
|
Trimming precision
|
+ 0.5mm
|
|
Dimension(L*W*H)
|
1200*1000*1100mm
|
|
Weight
|
About 400kg
|
