Lithium ion Battery Separator Film
Product Specification
Product Name: lithium-ion battery separator
Appearance: Milky white porous films
Function: Used in separating lithium ion battery cathode and anode,to prevent short circuit
Product characteristics:
1.Uniform pore size distribution
2.Low obturator temperature
3.High film rupture temperature
Application: Communications products battery,Tool Battery.
|
NO
|
Items
|
Criteria
|
Remarks
|
|
1
|
A (Thickness)
|
16
|
±1(um)
|
|
2
|
B (Width)
|
By request
|
±0.5(mm)
|
|
3
|
Length
|
400m or by request
|
±1(m)
|
|
Project
|
Unit
|
Measuring Instruments
|
Technical data
|
|
Model No.
|
SD225101
|
|
Material
|
/
|
DSC(Diamond N5360022)
|
PP
|
|
Porosity
|
%
|
Analytical balance(FA2004N)
|
37±3
|
|
Thickness
|
um
|
Mahr Thickness tester(C1216)
|
25±2
|
|
Width
|
mm
|
Straight steel ruler
|
60 mm
|
|
Areal density
|
g/m2
|
Analytical balance(FA2004N)
|
14.3±1.2
|
|
Air Permeability
|
s/100ml
|
Analytical balance(FA2004N)
|
480±120
|
|
Puncture Strength
|
g
|
Puncture instrument (CMT6202)
|
≥380
|
|
Tensile Strength
|
MD
|
Kgf/cm2
|
Electronic tension machine (CMT8102)
|
≥1000
|
|
TD
|
≥100
|
|
Thermal contraction (
90℃*2h)
|
MD
|
%
|
Drying oven(DHG-9023), Straight steel ruler
|
≤3.0
|
|
TD
|
≤0.5
|
|
Thermal contraction (
105℃*1h)
|
MD
|
%
|
Drying oven(DHG-9023), Straight steel ruler
|
≤6.0
|
|
TD
|
≤0.5
|

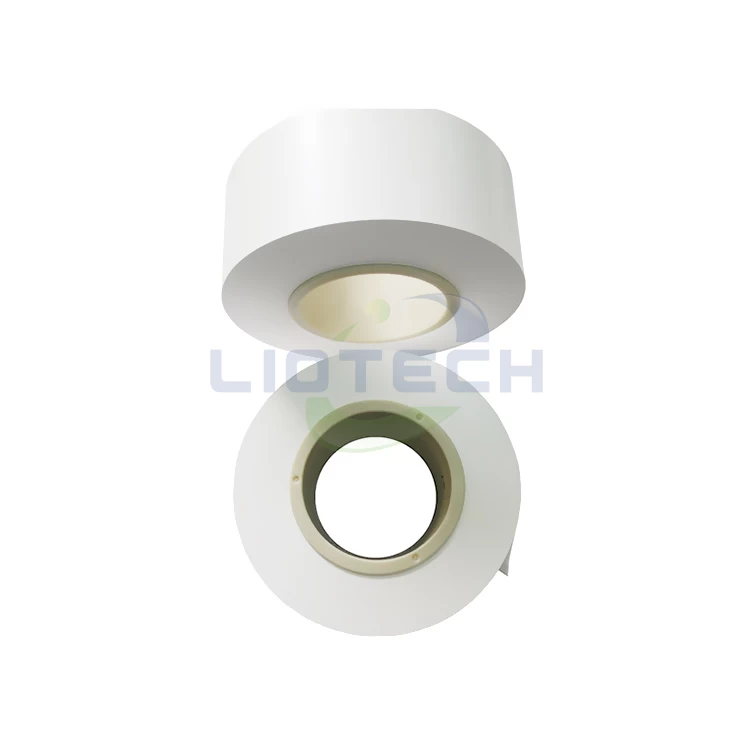

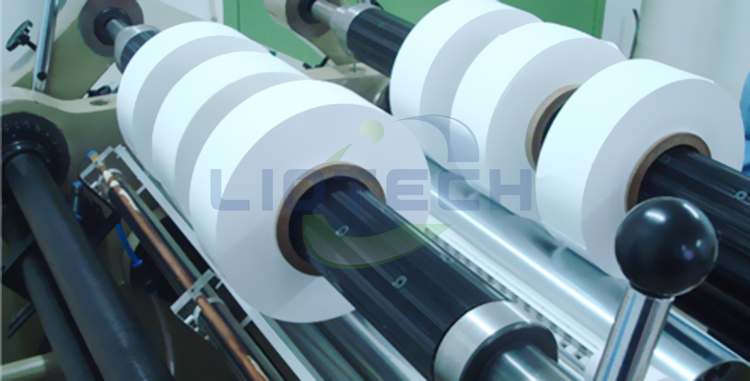

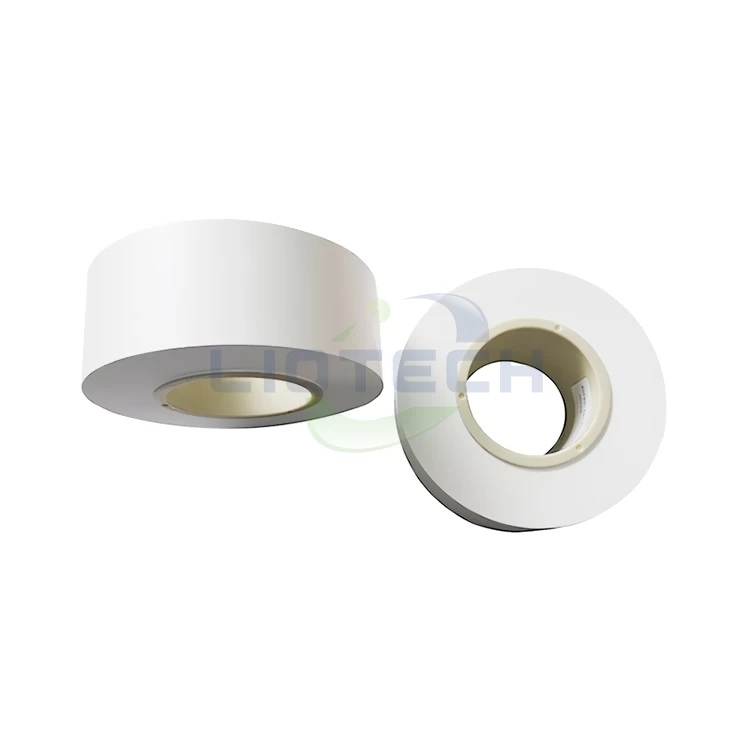

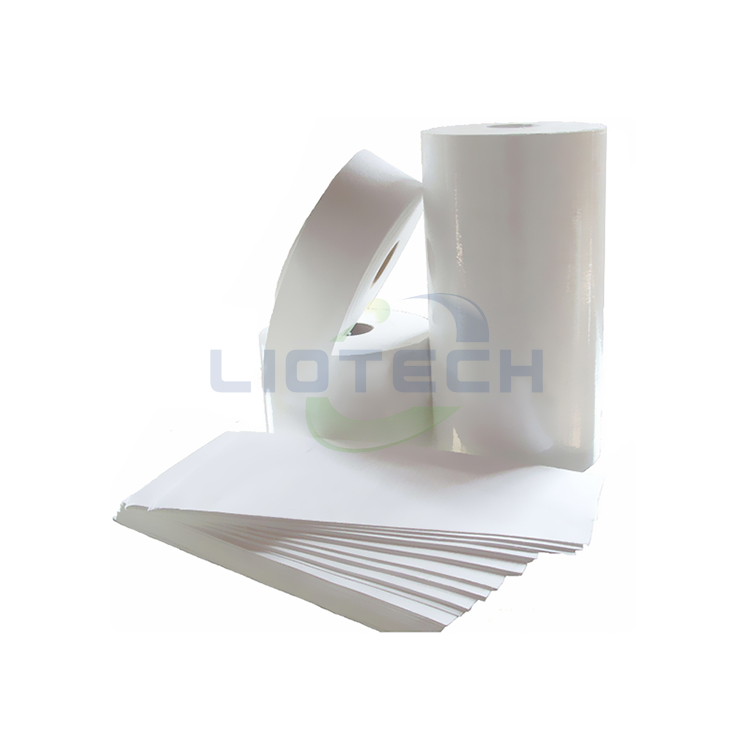

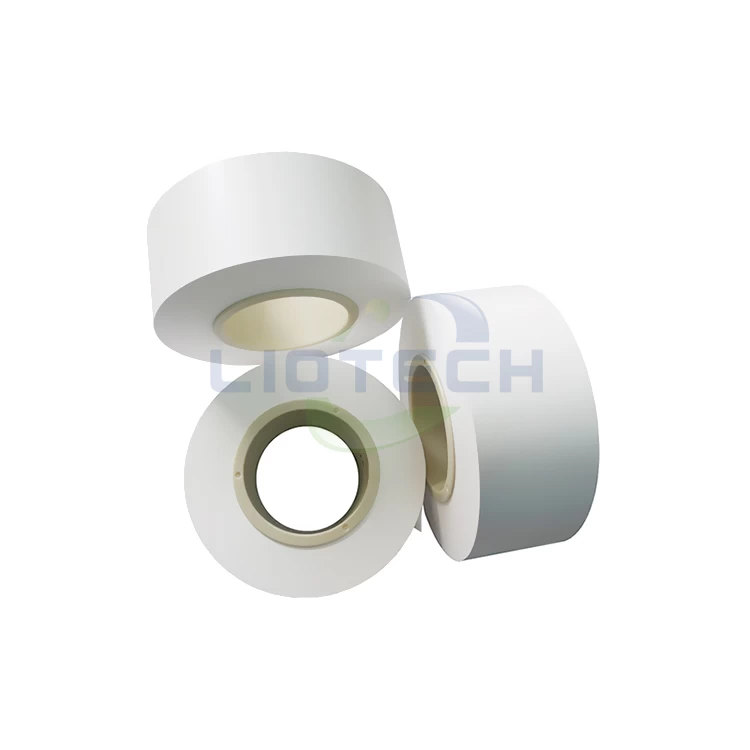

Product Images
Product Packing
