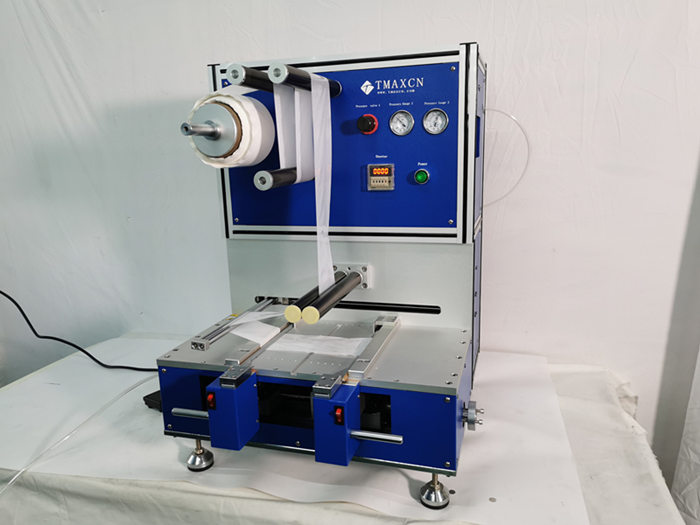

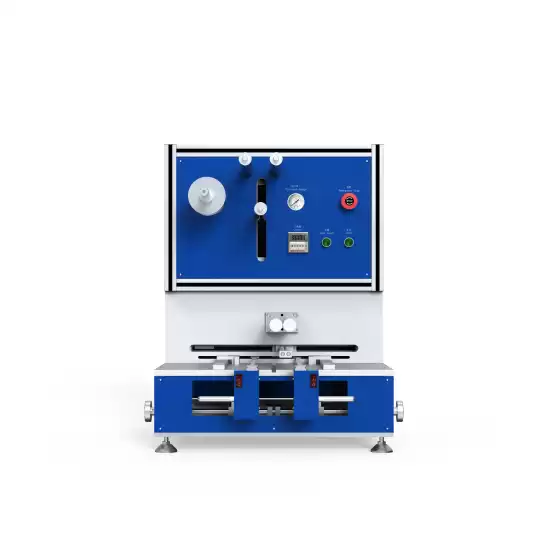

Lithium Ion Electrode Stacking Machine

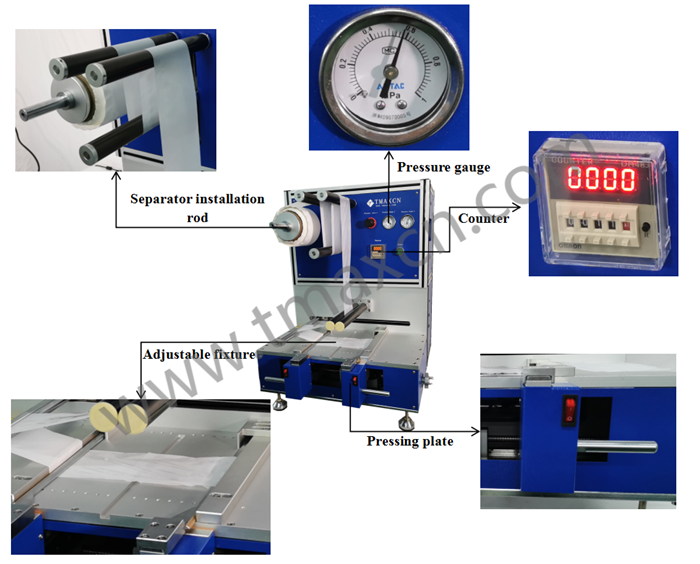

The device is suitable for lithium battery Z-type lamination process. The device is equipped with correction device, diaphragm release tension control device and auxiliary positioning device, PLC control panel. Only need to manually feeding the electrodes, through the control button to control the cylinder to complete the stack. Simple operation and high efficiency.
|
Model
|
Semi-auto stacking machine TMAX-TCH-DPA
|
|
Warranty
|
One year limited and list time support
|
|
Maximum Separator diameter
|
φ220mm
|
|
Applicable electrode size
|
L(0 ~ 210) mm, W(55~ 260) mm
|
|
Separator width
|
200mm
|
|
Correction accuracy
|
0.05mm
|
|
Power supply
|
AC220V / 50Hz
|
|
Compressed air source
|
0.5MPa ~ 0.7MPa
|
|
Dimension
|
58 *58 *69 cm
|
|
Net Weight
|
77 kg
|
|
Packing size
|
75*75*93cm
|
1 Standard exported package: Internal anticollision protection, external export wooden box packaging.
2 Shipping by express, by air, by sea according to customers' requirements to find the most suitable way.
3 Responsible for the damage during the shipping process, will change the damage part for you for free.
