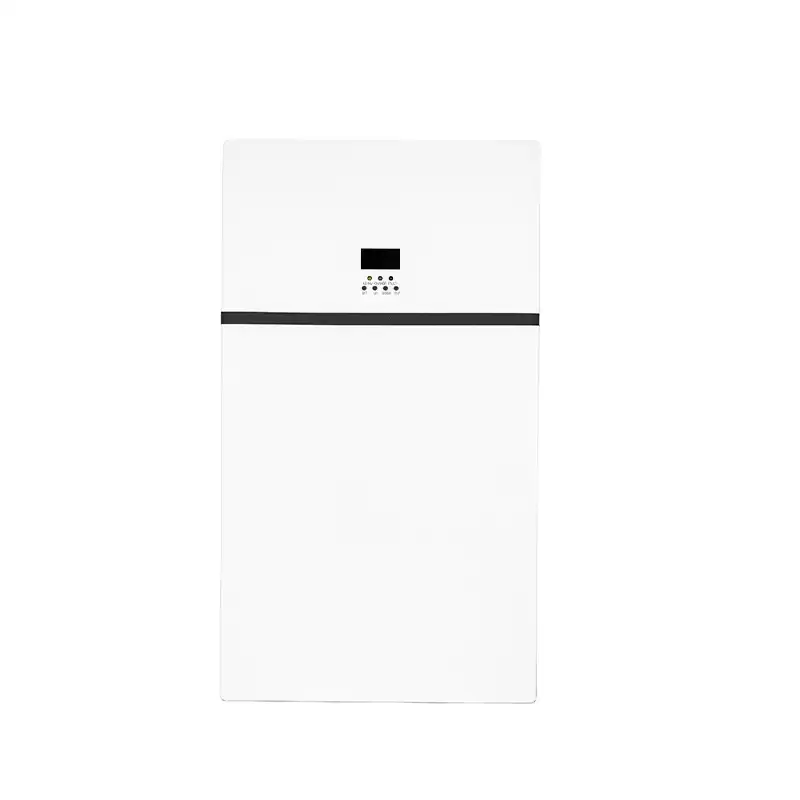

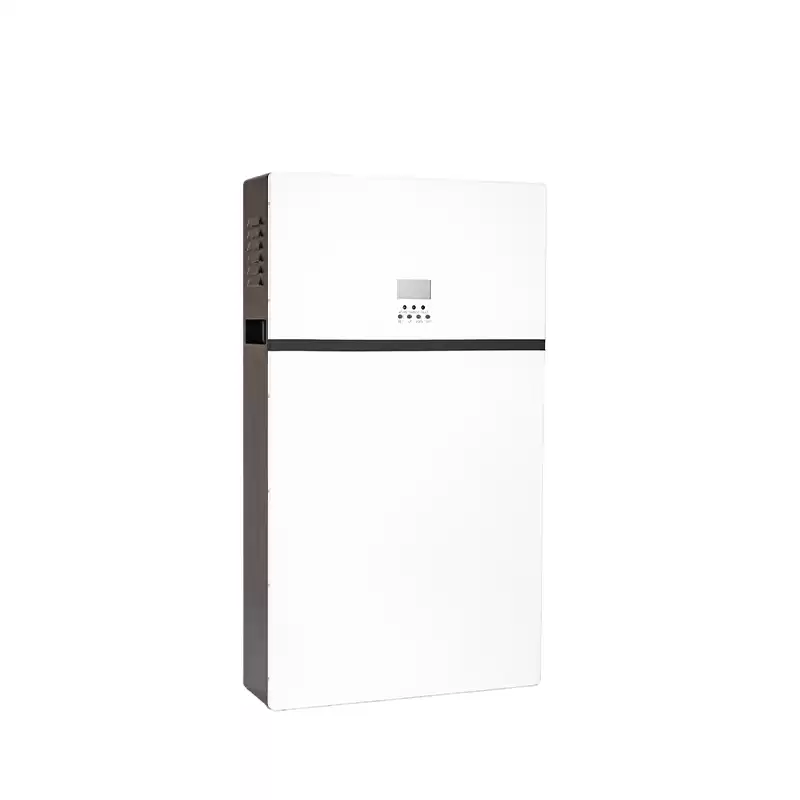

Lithium Ion Solar Battery 51.2V LiFePO410kwh 5kwh Powerwall Wall-Mounted Battery

The product is an smart storage battery with LiFeCoPO4 lithium-ion batteries for

communication station or solar energy storage.


Main Features:

*High energy density.

*Integrated design with inverter, convenient for user operation.


*Excellent performance in charging and discharging at large current.
*Long working life,reducing maintenance cost.
*Multiple protection functions. Charging high voltage protection, discharge low voltage protection, charging and discharging, over current protection, high temperature protection, short protection. reverse connection protection, ESD protection.
*Data transmission and parallel networking With RS485 and RS232 port.
*Accurate calculation of SOC and SOH.




  • CertificateCE FCC ROHS ISO9001 UN38.3
  • Warranty5 years

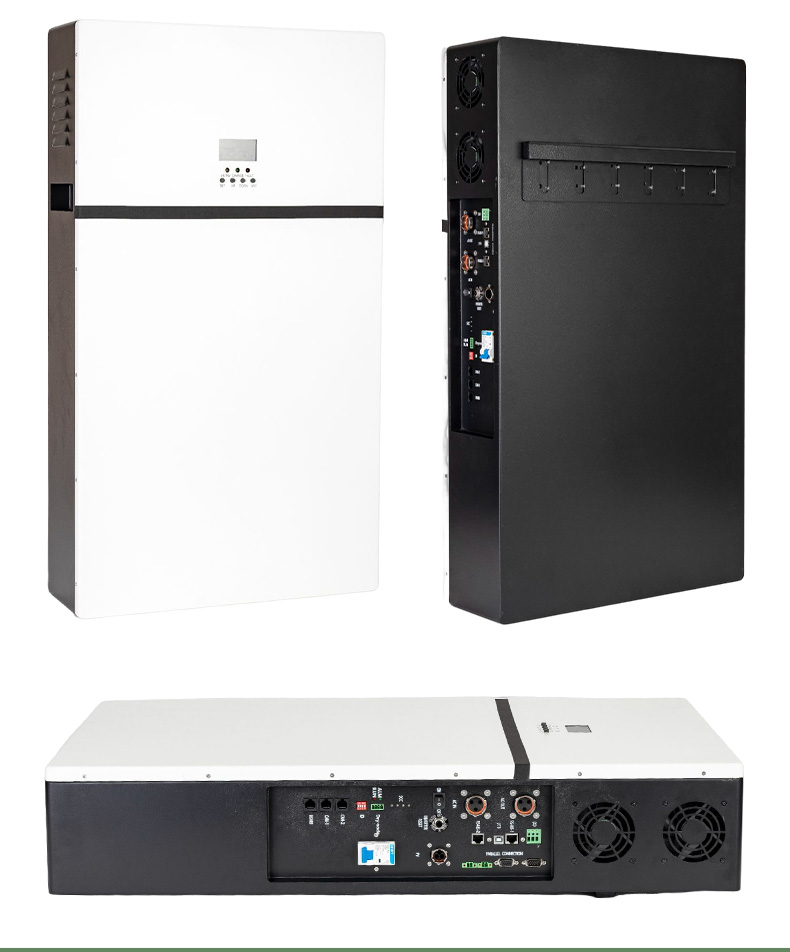

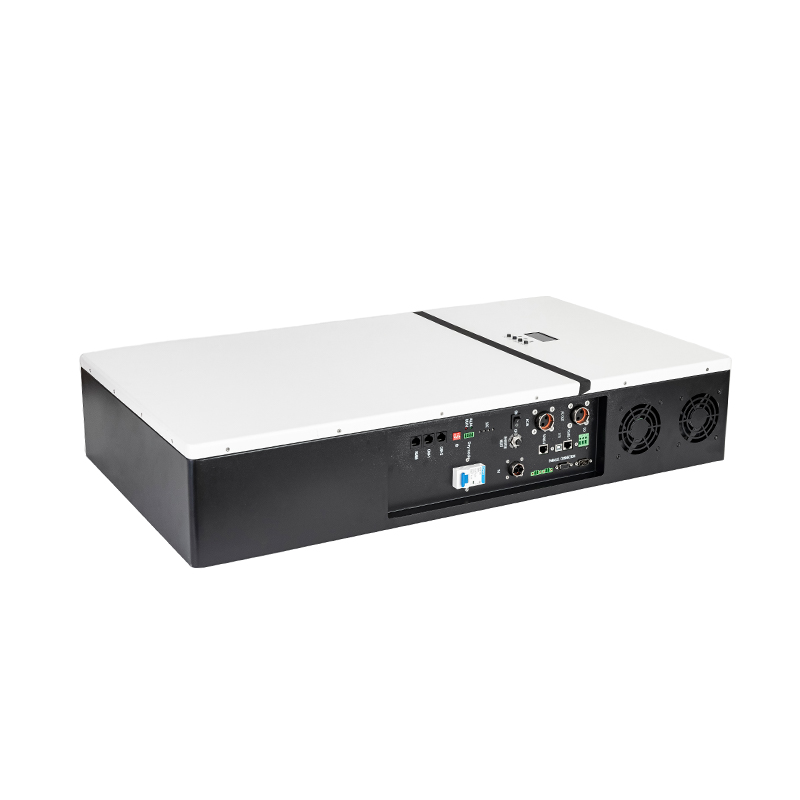

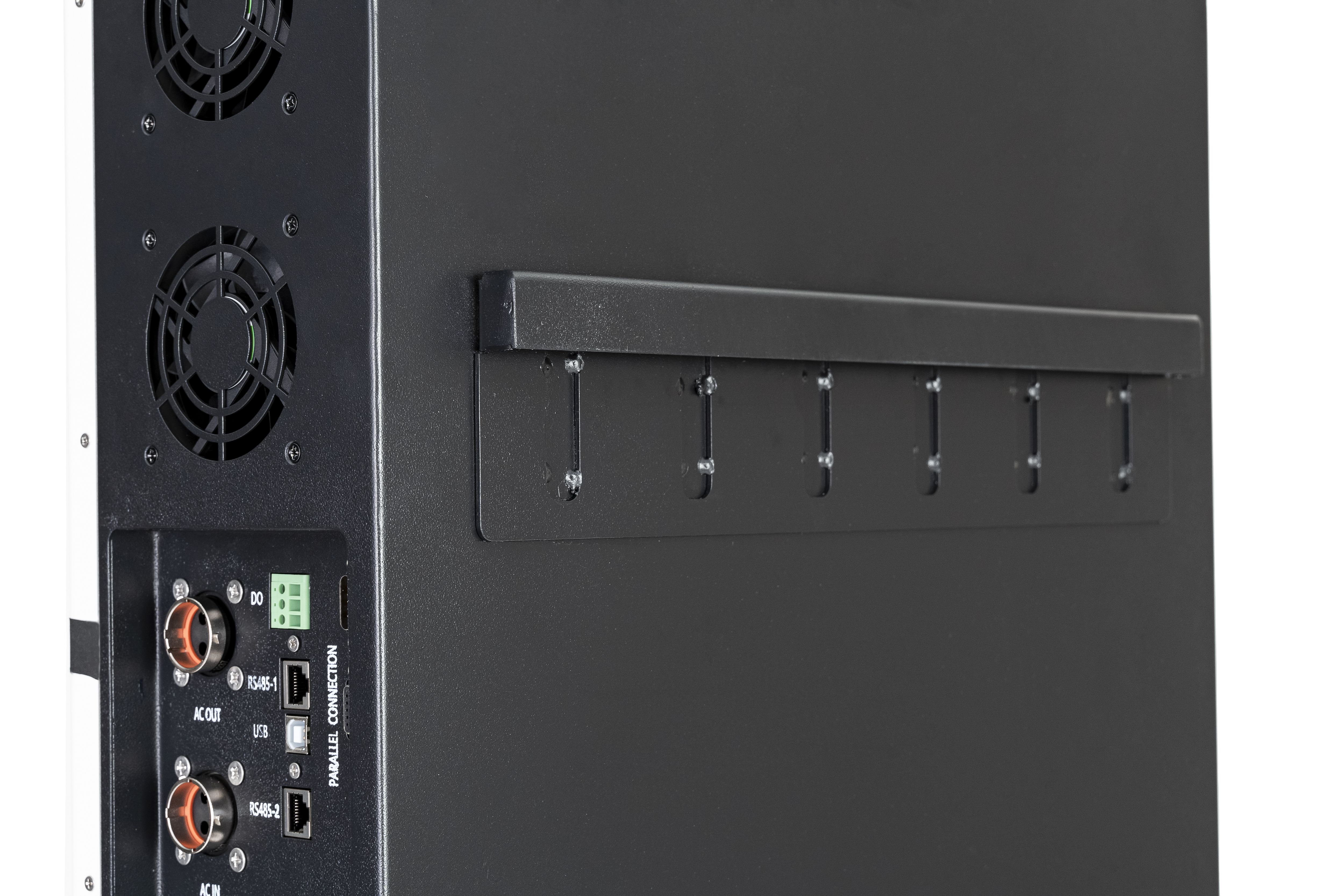

Details Images
Product Paramenters


Basic parameters
Type of electric core

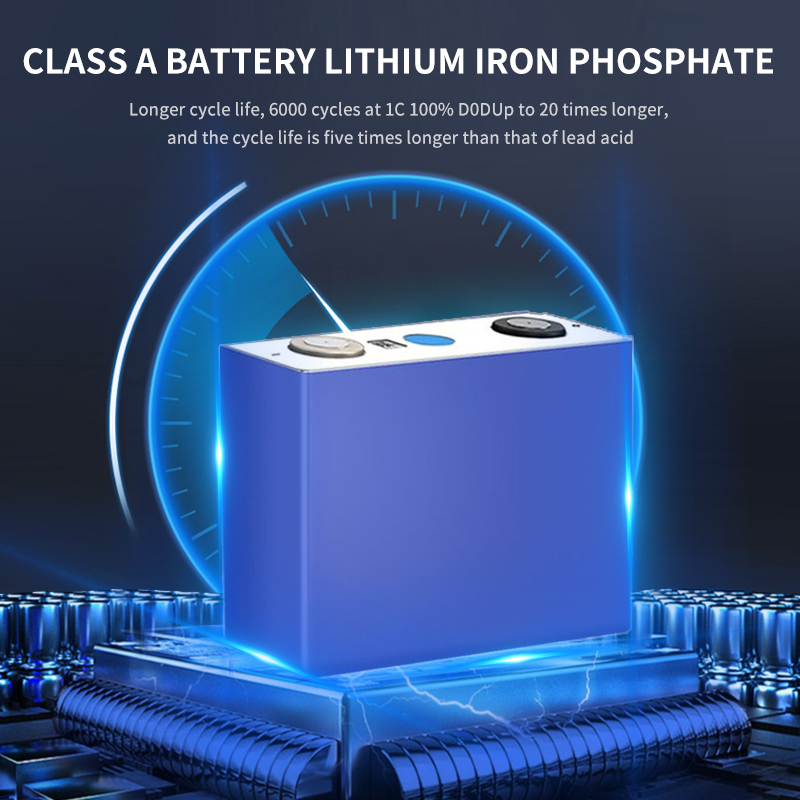

Yiwei LFP square electric core - 3.2V100Ah
Rated capacity
100Ah
200Ah
Rated total energy
5.12Wh
10.24kWh
Rated voltage
51.2V
Voltage range
43.2~58.4V

AC side parameters
Rated output power
5000W
Rated output voltage
 230Vac(200/208/220/240Vac can be set) ± 5%
Output frequency range
50Hz士0.3Hz/60Hz 0.3 Hz
Efficiency
input>95%, output>90%
PV power generation parameters
Maximum output power
5000W
MPPT voltage range
120-450V
Solar charging current
0-80A settable






system parameter
Weight
45kg
80kg
Dimensions(H*W*D)
850*480*160mm
1100*480*180mm
Protection grade
 IP54
Cooling mode
forced air cooling

Operating environment
Charging
0℃~55℃
Discharge
-20℃-60℃
Storage
 - 10℃-45℃
Operating humidity
5-95%, relative humidity
Installation type
wall mounted

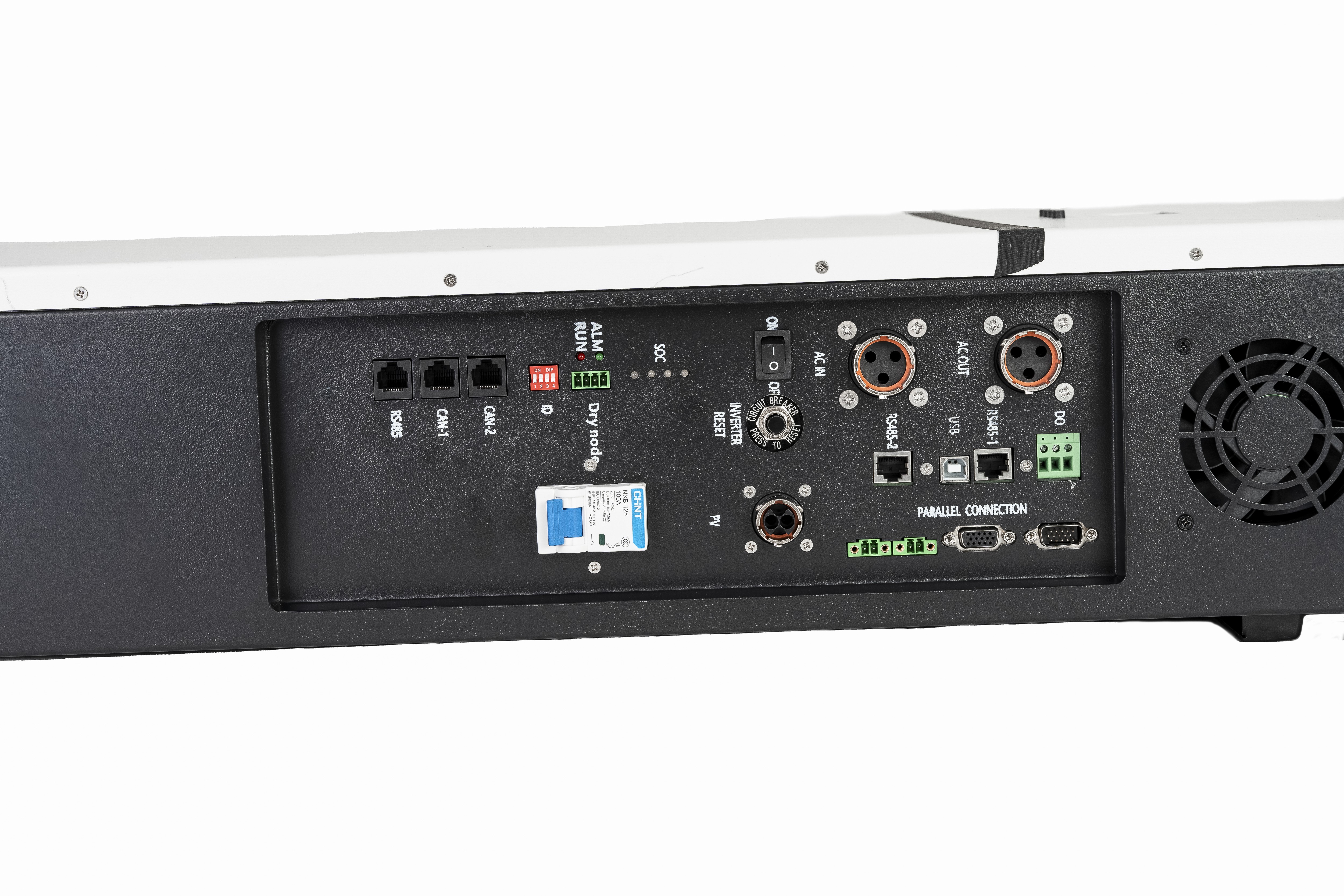

Communication mode
CAN,RS485,RS232
