Product Name

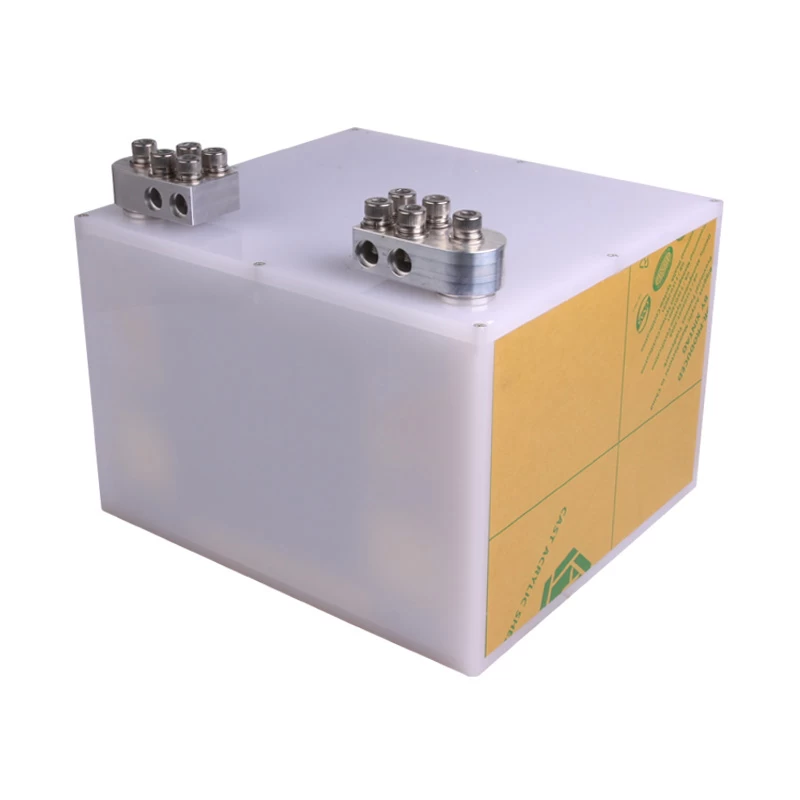

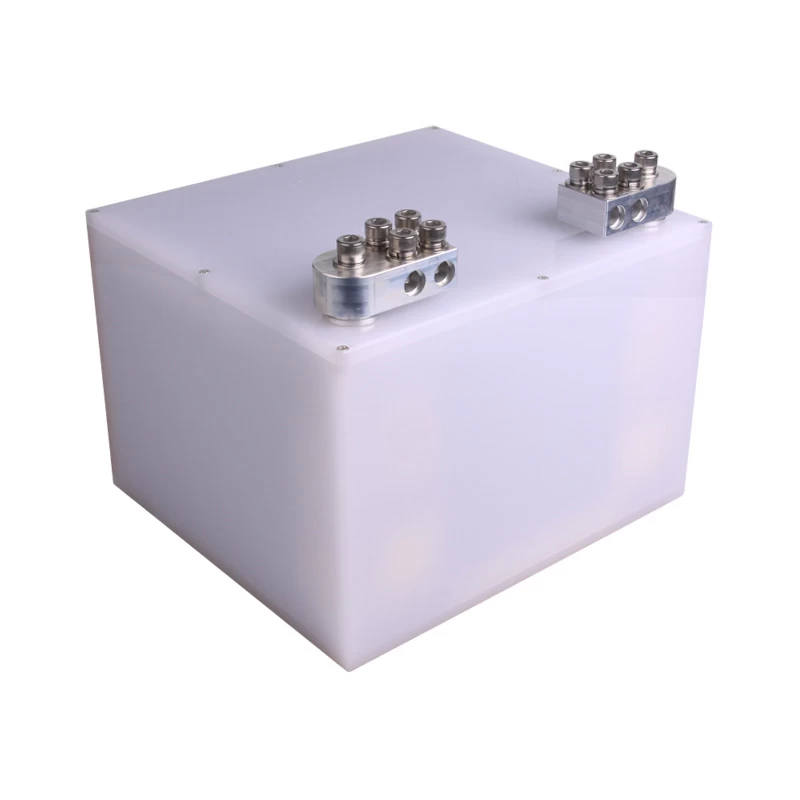

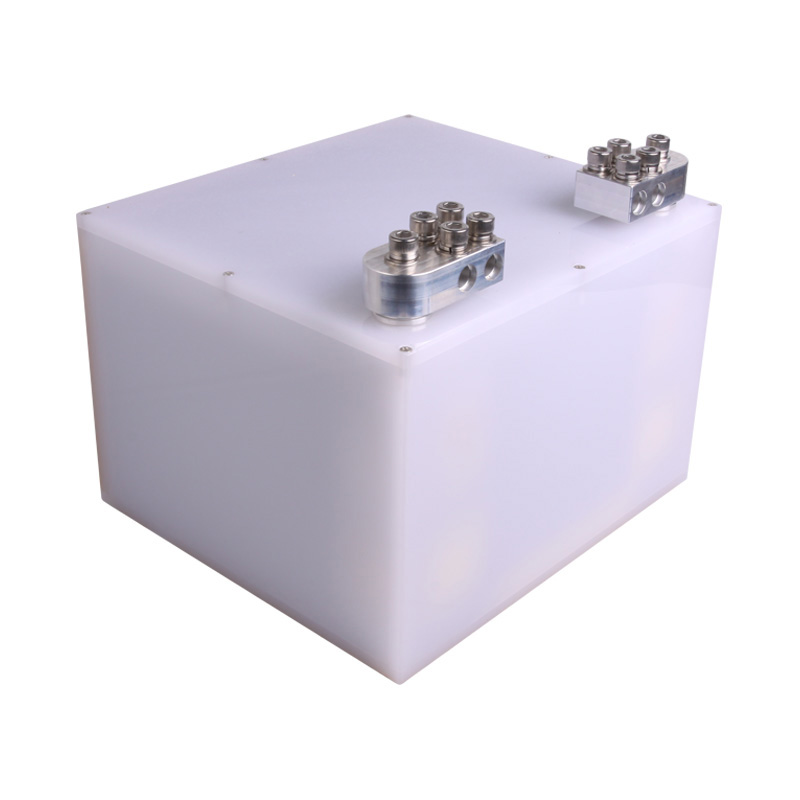

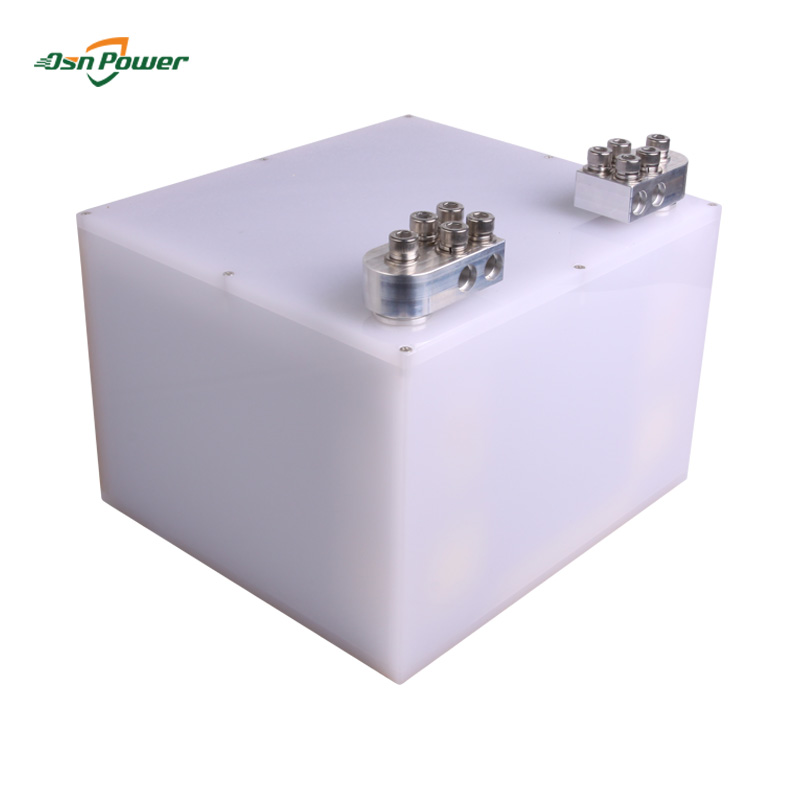

Lithium iron Phosphate Lifepo4 Car Audio Battery 12V 80Ah
Highlights
-
We designed a series Lifepo4 car audio batteries 12V, use the most high powerful cell A123 20Ah cells with 30C-60C discharge rate to make battery with very high output.
-
Can be flexible connected in parallel to get more power for different car audio systems .
-
Battery is built into balancing boards ,to prevent cell imbalance, and provide better performance, have a longer life.
-
Internal structure design can support super strong car audio up to 18000W
-
Light weight and small size,designed to be mounted in virtually any position
Specification for Lifepo4 Car Audio Battery 12v80Ah
|
MODEL
|
OSN-CA-1280T
|
|
PERFORMANCE
|
|
Rated Capacity (5hr)
|
80Ah
|
|
Nominal Voltage
|
12.8 V
|
|
Discharge Ending Voltage
|
8 V
|
|
Charging Limited Voltage
|
14.6 V
|
|
Max Discharging Current
|
2000 A
|
|
Parallel Connection
|
Optional (up to 16P).
|
|
Containing Cell
|
A123 20Ah
|
|
Design Life
|
More than 10 years
|
|
Cycle Life
|
6000 cycles @85% DOD (dependant on actual DOD, usage & temp.)
|
|
Discharge Rate
|
30C
|
|
MECHANICAL SPECIFICATIONS
|
|
Dimensions (W*D*H)
|
Can be customized
|
|
Weight
|
14.5Kg
|
|
OTHER
|
|
Operating Temperature
|
Charging: 0 to +45°C / Discharging: -20 to +60°C
|
|
Storage Temperature
|
-20 to +60°C
|
|
Humidity
|
5% to 95% Relative Humidity (Non-condensing)
|
|
Warranty
|
5 years
|
Other Features
Lithium battery VS Lead acid battery
-
Up to 70% lighter than lead-acid batteries of a comparative size and spec
-
Up to 10 times longer service life than its lead-acid equivalent
-
Environmentally friendly - no heavy or toxic materials
Applications
Related Products
With 10 years experience of making LiFePO4/NCM/LTO packs, we can customize any packs for you.
Please email us at service@osnpower.com to get solution and quotation.
