Specification of Fe2O3 nanoparticle:
|
Part No.
|
Particle
|
Purity
(%)
|
SSA
(m2/g)
|
Bulk density
(g/cm3)
|
Density
(g/cm3)
|
Crystal
|
Color
|
|
OP28B08C-30N
|
30nm
|
99.9
|
90
|
0.36
|
5.24
|
Spherical, near Spherical
|
red
|
OP28B08C-50N
|
50nm
|
99.9
|
60
|
0.38
|
5.24
|
Spherical, near Spherical
|
red
|
OP28B08C-100N
|
100nm
|
99.9
|
30
|
0.8
|
5.24
|
Spherical
|
red
|
OP28B08C-1U
|
1-2um
|
99.9
|
15
|
1.23
|
5.24
|
Spherical
|
red
|
Note: We can supply different size products of Fe2O3 nanoparticle according to client's requirements.
The iron oxide for battery materials is mainly produced by special synthesis technology and high-purity raw materials. It has the advantages of high purity, low impurity content, small particle size, uniformity, high temperature resistance (no discoloration at 600 °C), good dispersibility, etc. In lithium iron phosphate battery
Application of Fe2O3 nanoparticle:
1. Application in lithium iron phosphate battery:
As the main component of lithium iron phosphate battery, iron oxide has the advantages of non-toxicity, no pollution, wide range of raw materials, low price and long service life. It has excellent cycle performance, high temperature resistance and safety performance. Compared with lead-acid batteries, lithium-ion batteries using iron oxide materials have increased driving distance, increased power, and increased speed.
2. Application on nickel-cadmium battery:
The main function of iron oxide as the negative electrode material is to make the cadmium oxide powder have higher diffusibility, prevent agglomeration, and increase the capacity of the electrode plate, so that the nickel-cadmium battery has good high-current discharge characteristics and strong overcharge and discharge resistance. The advantages of simple maintenance.

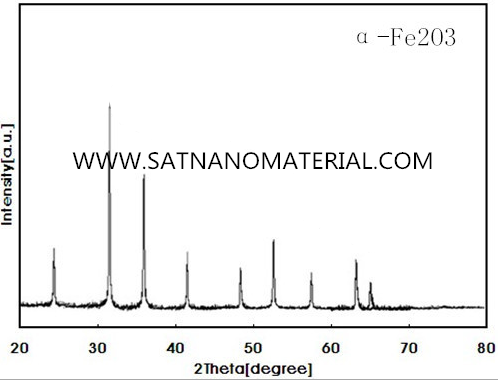

SEM & XRD of Fe2O3 nanoparticle:
Storage conditions:
Fe2O3 nanoparticle should be sealed and stored in a dry and cool environment. It should not be exposed to the air for a long time, to prevent agglomeration due to moisture, affecting the dispersion performance and use effect, and should avoid heavy pressure, do not contact with oxidant, and transport according to ordinary goods.
