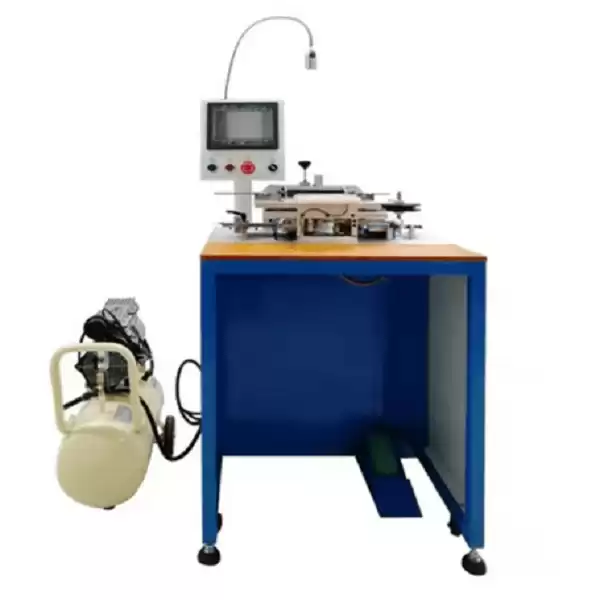

Lithium Polymer Battery Side Sticking Machine
Product Introduction:
1. The equipment is simple and easy to learn, easy to operate, ultra-low failure rate, equipped with vacuum pump, very energy-saving.
2. The machine solves the problem of wrapping adhesive tape on both sides and bottom of polymer built-in battery, has high consistency, improves efficiency and saves labor cost.
3. Adhesive tape for both sides and bottom of polymer built-in battery (including mobile phone electricity, mobile power supply, power battery, etc.).
Technical parameters:
|
Power Supply
|
220V 50Hz 30W
|
|
Air Pressure
|
0.4-0.8MPa
|
|
Applicable Battery Range
|
Polymer Cell
|
|
Gluing Length
|
30-140mm
|
|
Gluing Width
|
6-16mm
|
|
Cell Thickness
|
3-8mm
|
|
Capacity
|
1200-1500 times/h
|
|
Overall Dimension
|
600*700*1280mm
|
|
Weight
|
60KG
|
1 Standard exported package: Internal anticollision protection, external export wooden box packaging.
2 Shipping by express, by air, by sea according to customers' requirements to find the most suitable way.
3 Responsible for the damage during the shipping process, will change the damage part for you for free.
