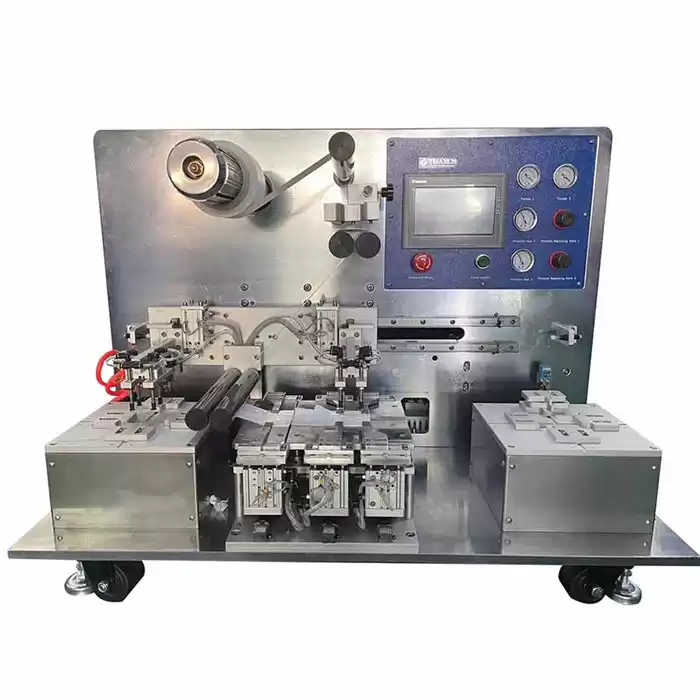

Lithium Pouch Cell Semi-Auto Stacking Machine
The device is suitable for lithium battery cathode/anode electrode and separator Z-type stacking process.
This equipment realizes manual loading, subsequent electrode position correction and stacking process is fully automatic. It has the characteristics of high stacking efficiency and high stacking accuracy. The device design can stack a maximum of 200 * 200mm cells, and different sizes can be achieved by adjusting the fixture, which is very suitable for the development and sample production of stacking lithium ion batteries. The equipment adopts a single cantilever structure design, automatic constant tension control of roll separator materials, and automatic correction control.
Main Feature:
1.The number of stacking layer can be controlled automatically according to preset settings;

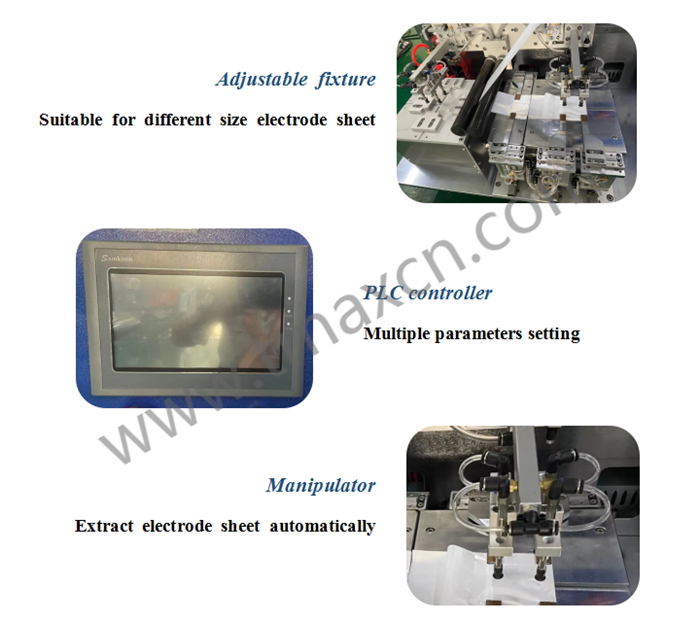

2.Compatible design, battery size change can be achieved by adjusting positioning fixture, large adjustment range.

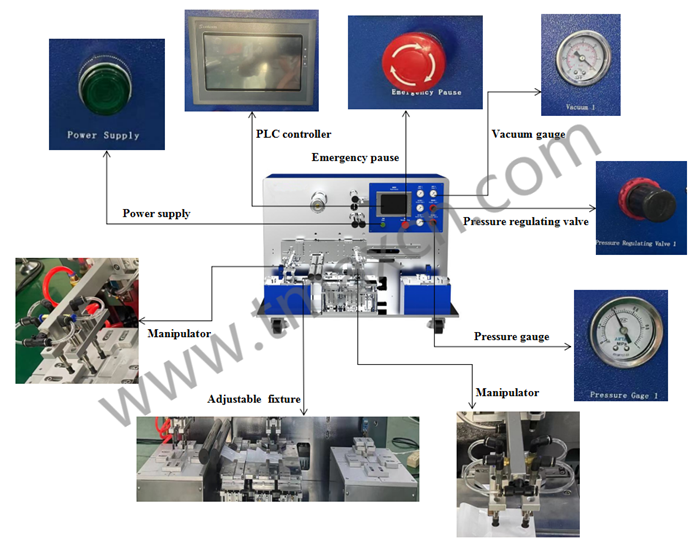

3.PLC control, HMI operation, easy to use and maintain;
4.Manual loading of electrode, automatic positioning, robotic hand automatic suction, automatic stacking.
5.Roller separator automatic servo constant tension control
6.Separator automatic photoelectric correction control
|
Model
|
Semi-auto stacking machine TMAX-BDP200-C
|
|
Stacking Type
|
Z Type
|
|
Operate method
|
Manual feed,robot hand take stacking material, automatic full separator
|
|
Maximum Separator diameter
|
φ250mm
|
|
Separator core diameter
|
3" roll core with air shaft clamping
|
|
Stacking accuracy
|
Uniformity ≤±0.3mm
|
|
Stacking Layer No.
|
Max 500 can be set
|
|
Stacking range
|
BatteryMin. L36mm *W36mm，Max. L200mm*W200mm
(not include tab)
|
|
Power supply
|
Single phaseAC220V±10%(110AVC customized, frequency 50HZ/60HZ)
|
|
Power
|
0.6KW
|
|
Compressed air source
|
0.5MPa ~ 0.7MPa
|
|
Outer size
|
L100*W78*H76 (cm)
|
|
Weight
|
About 400kg
|
|
Air source
|
0.5-0.8Mpa Compressed air
|
|
Remark
|
1. Suggest using temperature:25±3℃,humidity 30-90RH, No vibration and electromagnetic interference
2. Roller separator automatic servo constant tension control
3. Separator automatic photoelectric correction control
|
1 Standard exported package: Internal anticollision protection, external export wooden box packaging.
2 Shipping by express, by air, by sea according to customers' requirements to find the most suitable way.
3 Responsible for the damage during the shipping process, will change the damage part for you for free.
