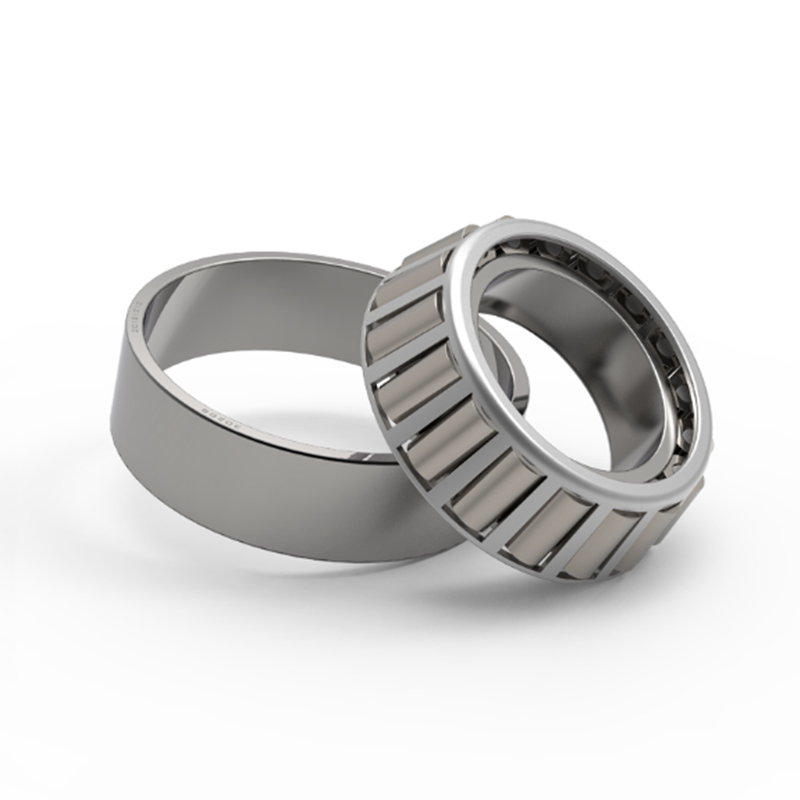

LM11749/LM11710 Single Row Inch Size Tapered Roller Bearings

Single row tapered roller bearings, inch sizes, are designed to accommodate combined radial and axial loads and provide low friction during operation. The inner ring, with rollers and cage, can be mounted separately from the outer ring. These separable and interchangeable components facilitate mounting, dismounting and maintenance. By mounting one single row tapered roller bearing against another and applying a preload, a rigid bearing application can be achieved.



Single Row Inch Size Tapered Roller Bearings



Single row inch tapered roller bearings are the basic type and the most widely used type of tapered roller bearings. It consists of an inner ring component and an outer ring. It is usually installed as one of an opposing pair. During equipment assembly, single-row bearings can be "set" to the desired clearance (end clearance) or preload to optimize performance. Single row inch tapered roller bearings are widely used in automobiles, rolling mills, mining, metallurgy, plastic machinery and other industries.



Inch Size Taper Roller Bearings Features :



  • High radial and axial load carrying capacity
  • Accommodate axial loads in one direction
  • Low friction and long service life
  • Separable and interchangeable components



Application :

It is widely use for

  • Automobiles
  • Agricultural machine
  • Rolling mills
  • Mining industry
  • Plastic machinery
  • Trailers and caravans



Display:

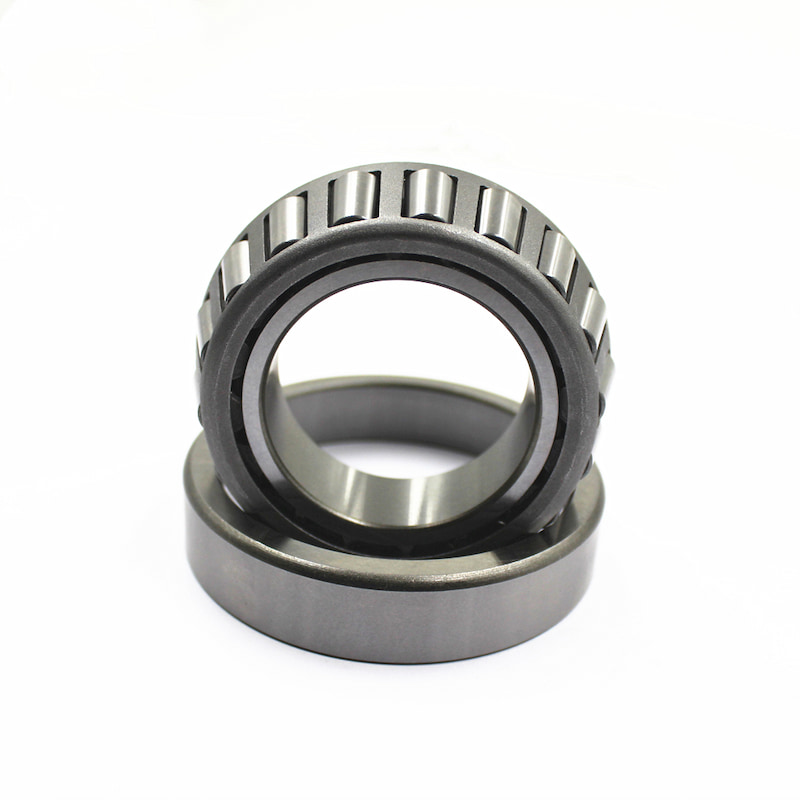

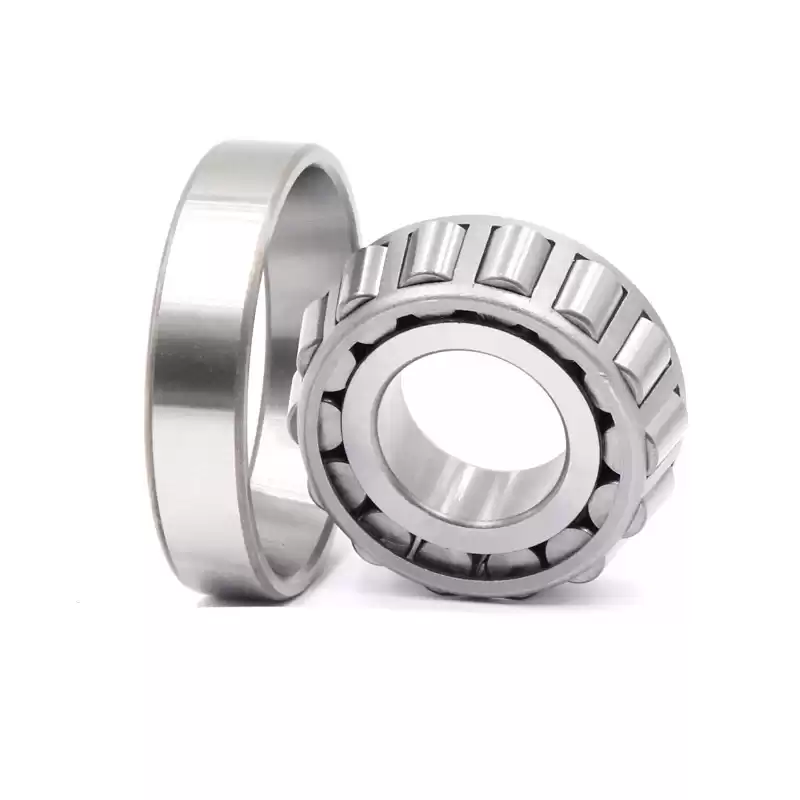

LM11749/LM11710 Taper Roller Bearing Inch Series
Imperial Tapered Roller Bearings

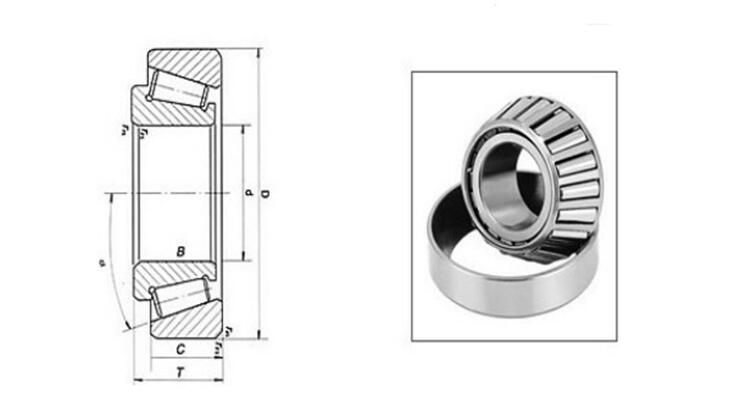

Single Row Inch Taper Roller Bearings Size Chart:

Single Row Inch Size Tapered Roller Bearings



Bearing
NO.

 I.D

0.D




Weight
kg

d

D

B

毫米
mm

毫米
mm

毫米
mm

LM11749/LM11710

17.462

39.878

13.843

0.08

LM102949/LM102910

45.2425

73.4314

19.558

0.32

LM11949/LM11910

19.05

45.237

15.494

0.12

LM12649/LM12610

21.43

50.005

17.526

0.16

LM12749/LM12710

21.986

45.237

15.494

0.12

LM236749/LM236710

184.15

234.95

34.0106

3.34

LM451349DW/LM451310/LM451310D

266.7

355.6

230.188

61.5

LM545849/LM545810

234.95

314.325

49.2252

9.79

LM654649/LM654610CD

285.75

380.898

139.7

40.655

LM67048/LM67010

31.75

59.13

15.875

0.18

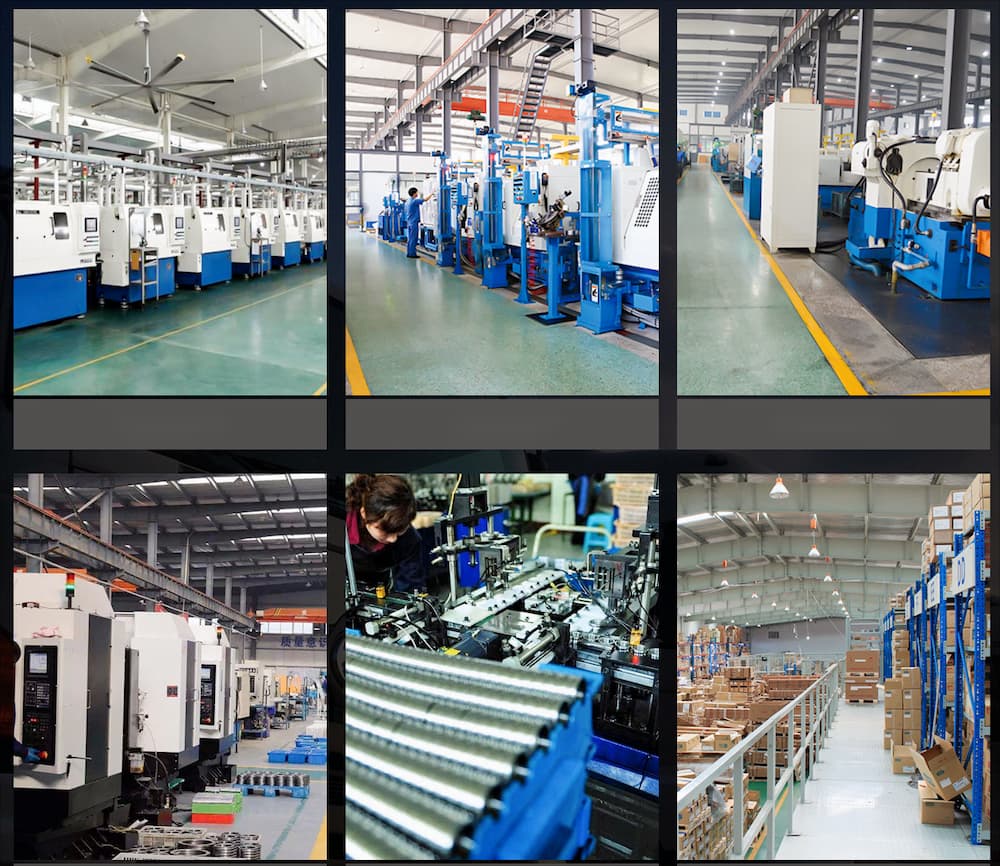

Advantage of WIS Bearing:



  • Rich experience

With over 15 years bearing industry experience ,we have perfect group pf technical engineers give you best support

  • Competitive price and small MOQ

Direct manufacturer of bearings can offer you lowest price with small MOQ

  • Customized Service

WIS bearings can provide OEM and ODM service as to your sample or drawings.

  • Strict quality control

We focus on quality during production and guarantee 100% quality inspection before delivery

  • Delivery strength

WIS bearings give you on time delivery

  • Free sample provided
