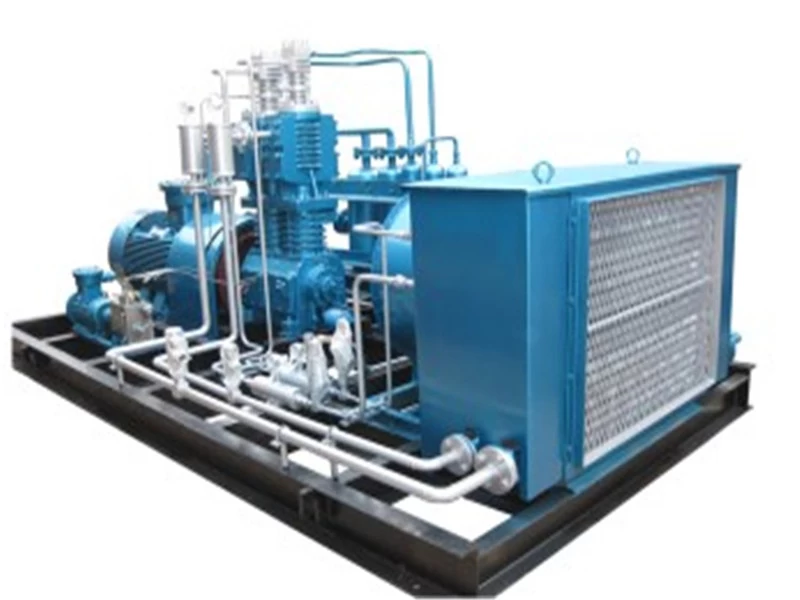

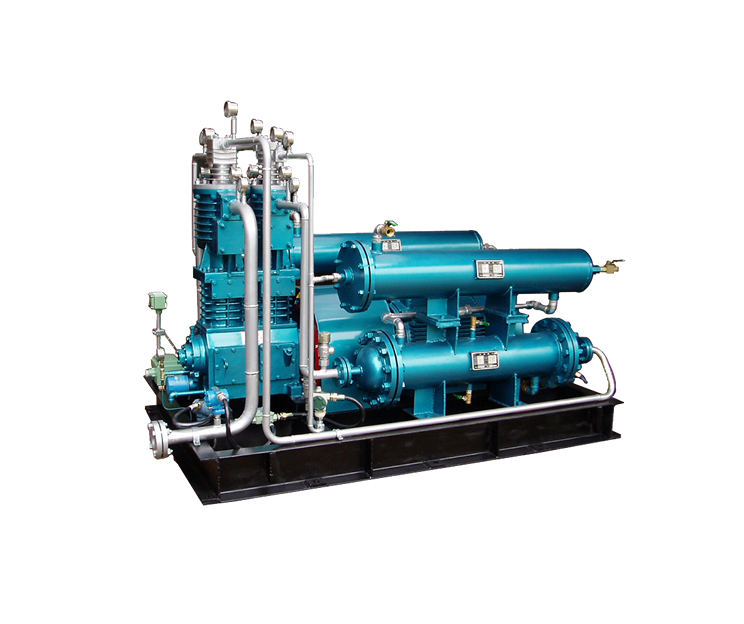

LNG-BOG recovery compressor
Product USES and features:

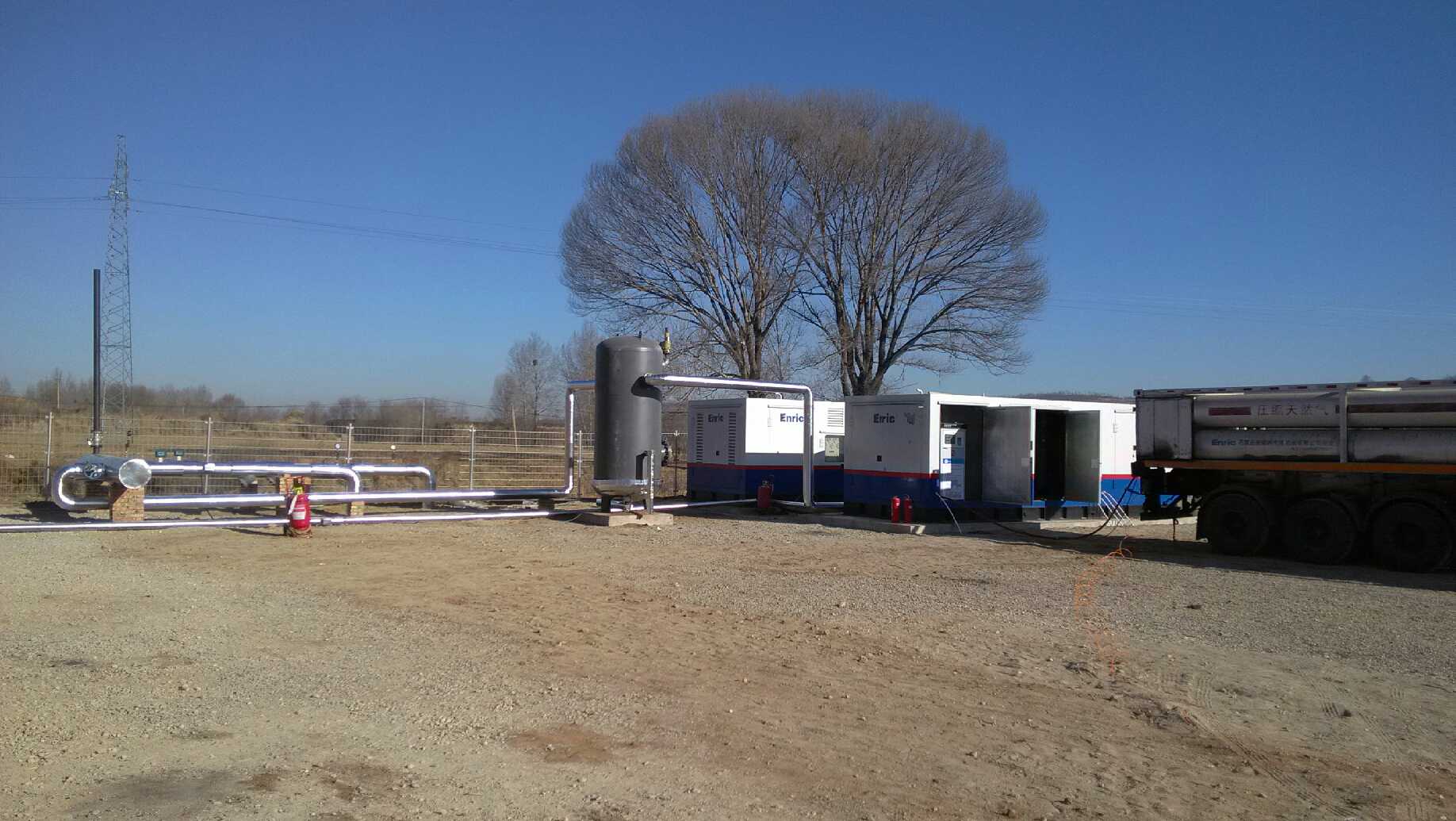

The BOG recovery compressor will recover and compress the natural gas in the tank car after unloading the LNG tanker and the vaporized gas in the LNG low-temperature storage tank into CNG for gas filling in the LNG tanker or charging into the gas pipe network. In order to achieve the dual purpose of energy conservation, emission reduction and recycling.
1.For the overall skid-mounted type, installation and maintenance is convenient.
2. The compressor runs smoothly with small vibration.
3. Low rotation speed, long service life of wearing parts and low operating noise.
4. The oil is supplied by the pressure lubrication system to ensure the reliable operation of the compressor.
5. the unit adopts advanced PLC control system, high degree of automation.
6.the use of international famous brand air valve, long service life, low noise.
7. flexible load regulation, wide range of air intake, wide range of adaptation.
8.easy to install in urban areas, saving investment.
Our company：
Bengbu longhua die casting machine co., ltd. has established a perfect new product development organization, which adopts CAD, Solidworks and other professional computer design software to assist the design system, providing advanced design means to improve the enterprise's research and development ability. R & d team is composed of a group of senior compressor design experts, in r & d, innovation and other aspects tend to the international level, has a large processing center, perfect product testing equipment, in strict accordance with iso9001:2000 international quality system control product quality.
Bengbu longhua die casting machine co., LTD. Product variety is complete, the design, production, manufacturing, marketing strength, product range can be divided into: CNG stations series compressor, oil and gas fields with a series of compressor, high pressure compressor, special gas compressor, chemical process series compressor, compressor power series. Product parameters: exhaust volume from 0.05-200m3/min, exhaust pressure from 0.1-50mpa, compressible air, nitrogen, liquefied petroleum gas, gas, natural gas, carbon dioxide, propane, hydrogen, helium, ethylene, ammonia and other different media. Widely used in natural gas filling stations, urban construction, gas fields, petroleum, national defense, coal, geology, chemical industry, metallurgy, machinery manufacturing, medicine, food, beverage and other fields.
Bengbu longhua die casting machine co., LTD. Constantly improves its service system while pursuing perfect product quality. To provide customers with high quality, fast pre-sale, sale, after-sale service is longhua compressor continuous pursuit of the goal. The company in line with the customer first, the quality first, the prestige first principle serves in the user, wholeheartedly cooperates sincerely with the domestic and foreign user, hand in hand altogether wins!
parameter：
Technical parameters and specifications: longhua BOG compressor parameters range: exhaust volume from 0.05 to 200m3/min, exhaust pressure from 0.1 to 25MPa.
The serial number
|
Models
|
Displacement
(Nm3/h)
|
Operating pressure
(Mpa)
|
Exhaust pressure
(Mpa)
|
Electric power
(kw)
|
Overall dimension
(mm)
|
|
1
|
ZW-0.16/ (0.2-0.5)-3.5
|
67-96
|
0.6-0.9
|
25
|
22
|
2500*1300*1800
|
|
2
|
ZW-0.22 /(3-4)-250
|
50
|
0.3-0.4
|
25
|
18.5
|
2000*1800*1900
|
|
3
|
ZW-0.4/ 2-250
|
60
|
0.2
|
25
|
18.5
|
2800*2200*1600
|
|
4
|
ZW-3.5 / (0.2-3)-3.5
|
450
|
0.02-0.3
|
0.35
|
22
|
2500*1300*1800
|
|
5
|
ZW-3.5/(0.2-5)-5
|
630
|
0.02-0.5
|
0.5
|
22
|
2520*1300*1800
|
|
6
|
ZW-0.25/(4-10 )-200
|
100
|
0.4-1
|
20
|
30
|
2200*1800*1900
|
|
7
|
DW-0.5/4-250
|
120
|
0.4
|
25
|
30
|
3200*2200*1600
|
|
8
|
DW-3.4/(0.5-4.5)-6.0
|
600
|
0.05-0.45
|
0.6
|
30
|
1500*1200*950
|
|
9
|
DW-4.5/(0.5-2)-3.5
|
500
|
0.05-0.2
|
0.35
|
30
|
1500*1200*950
|
|
10
|
DW-4.5/0.3-8
|
300
|
0.03
|
0.8
|
37
|
2000*1600*1200
|
|
11
|
ZW-0.45 /(5-10)-250
|
200
|
0.5-1.0
|
25
|
45
|
3100*2000*1475
|
|
12
|
DW-0.54/(1.5-5)-250
|
114
|
0.15-0.5
|
25
|
45
|
3200*2200*1475
|
|
13
|
VW-1.5/2-250
|
200
|
0.2
|
25
|
55
|
3500*2200*1550
|
|
14
|
VW-1.3/(0.3-4)-250
|
200
|
0.03-0.4
|
25
|
75
|
3500*2200*1550
|
|
15
|
DW-5/2-250
|
820
|
0.2
|
25
|
200
|
4500*3100*1600
|
Dear customers, please provide detailed technical data, we provide you with the correct compressor selection program
|
Compression medium
|
Required delivery
(Nm3/h)
|
Inlet pressure
(Mpa)
|
Outlet pressure
(Mpa)
|
Inlet temperature
(℃)
|
Outlet temperature
(℃)
|
Other
|
