LNG Gasification Station


  • Response Time8-24h
  • Guarantee Period12 months

Description:

LNG is transported to the gasification station by LNG transport trucks and stored in LNG storage tanks.The liquid is automatically boosted by a cryogenic pump and then transformed into natural gas by an evaporator at room temperature.By regulating the pressure metering device, the gas will carry a certain odor into the pipeline network.


Features:
1. Sufficient Gasifier, safety interlock for temperature
control and re-heater - supply air temperature is not lower than 5 °C ;
2. High degree of automation – unattended operation,
except for unloading;
3. Meet national standards and industry standards - 100% acceptance rate after completion.


Technical Parameters:

No. Name Number Type Application Key Equipment Station Capacity
1 LNG Fueling Station EPC0702001 LNG Station Solution
heavy truckscity bus,coach, Cryogenic submersible pumpLow temperature storage tankLNG DispenserDouble pump skidStation BOG recycling skid
30-120m³
2 L-CNG filling station EPC0702002 L-CNG Station Solution
heavy truckscity bus,coach,Private Fleet Station/Pubilc Retail Station serving sedans,pickups,taxi,trucks,light/medium duty vehiles L-CNG plunger pump skid,L-CNG high-pressure gasification skid,Cryogenic submersible pumpLow temperature storage tankLNG Dispenser,CNG dispenser
10-20mmscfd
3 LNG gasification station EPC0702003 LNG gasification station solution
heavy truckscity bus,coach,
LNG dump truck skidStorage tank pressurized skidMeasuring pressure regulating skidair type vaporizerwater bath type vaporizer
30-120m³
4 LNG receiving station EPC0702004 LNG receiving station Solution

Unloading arm, storage tank, low-pressure transfer pump, high-pressure transfer pump, vaporizer, BOG compressor, flare tower


Optional configurations:
* LNG trailer
* LNG storage tank
* air type vaporizer
* water bath type vaporizer
* PRU Skid

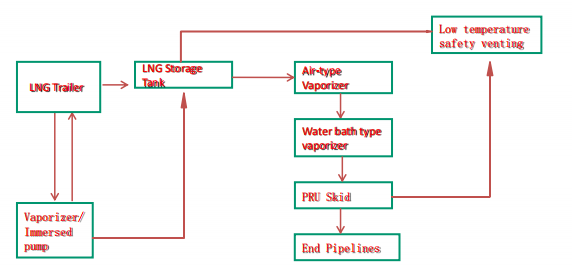

Operating process:




Applications:
Civilian use, industrial production supply, emergency supply
