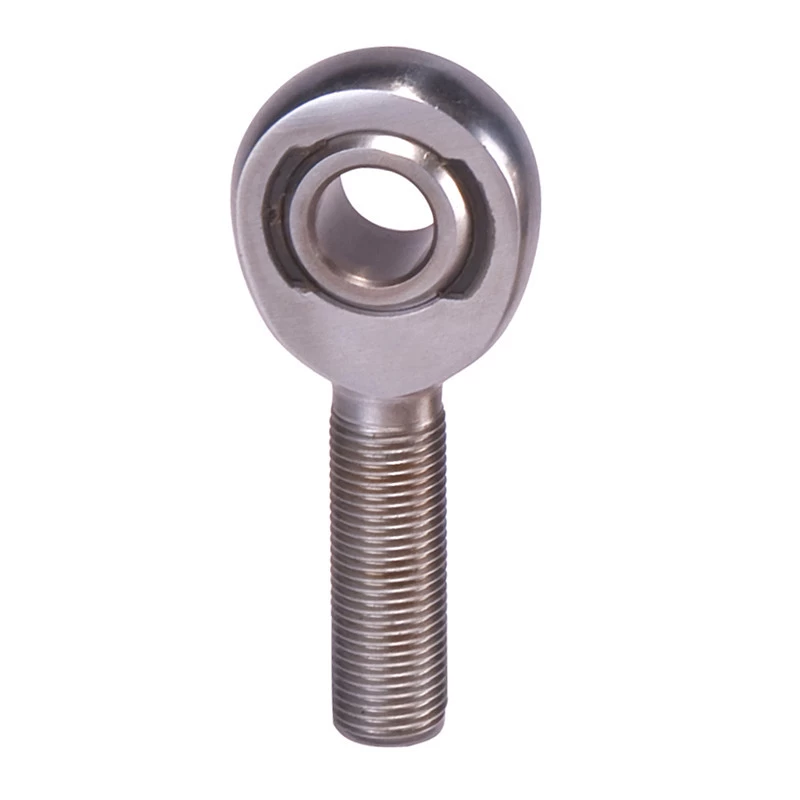

Loader Slot Rod Ends NEXM

Ball: AISI 52100 bearing Steel, heat treated, HRC56 min; Precision ground, polished hard chromium plated
Body: Carbon steel, Zinc plated

Race: Nylon polymer PTFE additive

Sliding contact surfaces: Steel/Nylon



Facebook Twitter Pinterest LinkedIn 分享

NEXM3 Plastic spherical rod ends

Bearing No. Dimensions(mm/inches)
Ball
dia
a°
mis.
angle
Load
ratings
(KN)
weight
≈kg
d+0.038
 -0 012

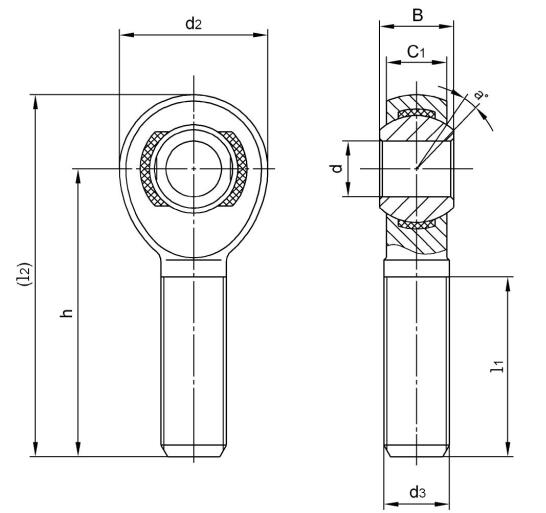

B C1 d2
d3
UNF-2A
h L1 (L2)
NEXM3 4.826 7.92 6.35 15.88 10-32 31.75 19.05 39.69 11.11 10 4.4 0.013
NEXM3 0.1900 0.312 0.250 0.625 10-32 1.250 0.750 1.562 0.437 10 4.4 0.013
NEXM4 6.35 9.53 7.14 19.05 1/4-28 39.67 25.4 49.2 12.7 13 8.2 0.018
NEXM4 0.2500 0.375 0.281 0.750 1/4-28 1.562 1.000 1.937 0.500 13 8.2 0.018
NEXM5 7.938 11.10 8.74 22.23 5/16-24 47.63 31.75 58.75 15.88 10 12.3 0.031
NEXM5 0.3125 0.437 0.344 0.875 5/16-24 1.875 1.250 2.312 0.625 10 12.3 0.031
NEXM6 9.525 12.7 10.31 25.4 3/8-24 49.22 31.75 61.92 18.26 9 17.4 0.049
NEXM6 0.3750 0.500 0.406 1.000 3/8-24 1.938 1.250 2.687 0.719 9 17.4 0.049
NEXM7 11.112 14.27 11.1 28.58 7/16-20 53.98 34.93 68.27 20.62 11 18.7 0.068
NEXM7 0.4375 0.562 0.437 1.125 7/16-20 2.125 1.375 2.678 0.812 11 18.7 0.068
NEXM8 12.7 15.88 12.7 33.32 1/2-20 61.92 38.1 78.58 23.8 9 29.6 0.108
NEXM8 0.5000 0.625 0.500 1.312 1/2-20 2.438 1.500 3.093 0.937 9 29.6 0.108
NEXM10 15.875 19.05 14.27 38.1 5/8-18 66.68 41.28 85.73 28.58 11 32.7 0.163
NEXM10 0.6250 0.750 0.562 1.500 5/8-18 2.625 1.625 3.375 1.125 11 32.7 0.163
NEXM12 19.05 22.23 17.45 44.45 3/4-16 73.02 44.45 95.25 33.33 10 51.2 0.258
NEXM12 0.7500 0.875 0.687 1.750 3/4-16 2.875 1.750 3.750 1.312 10 51.2 0.258


Can supply rod ends with different pitch or accuracy of thread.

For left-hand thread, suffix "L" is added to bearing numbers. e.g.:NEXML12 3/4-16L
