Loading Point Template GT-LB01-1A

Loading point template, a template, which consists of two shaped members fastened together by a pivot at one end.



Loading Point Template GT-LB01-1A


Product Introduction

Application:

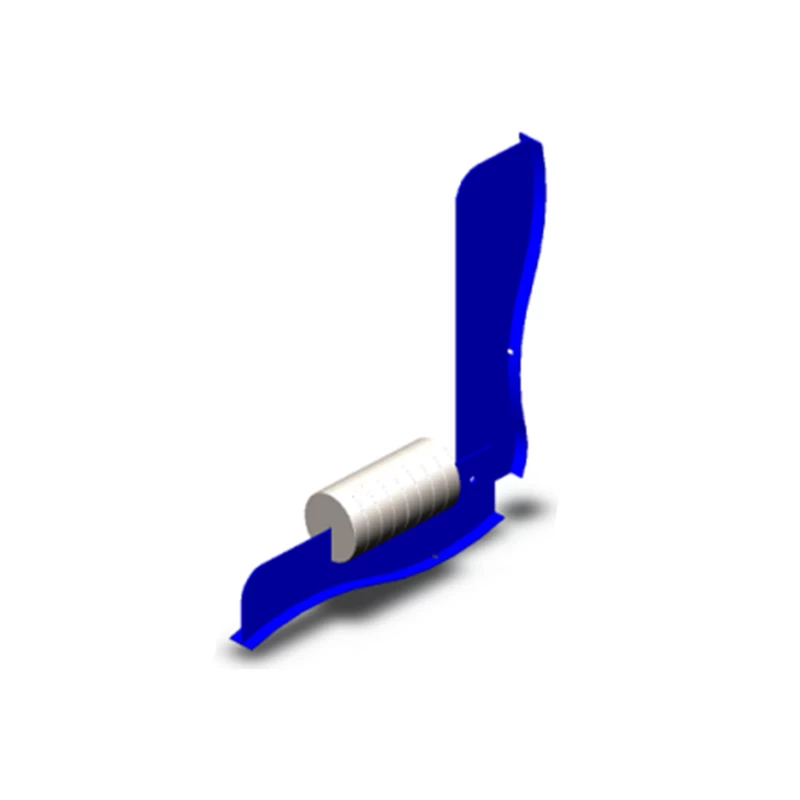

A template, which consists of two shaped members fastened together by a pivot at one end .The contours of the shaped surfaces are so devised as to sink into the upholstery. For this purpose the seat loading arm shall have a mass of 20 kg applied at the seat loading point.





Standards:

EN 1728 Section 5.1 ,  EN 1022 Section 4.6, BS5459-2-2000 Section A3.2 , EN581-2

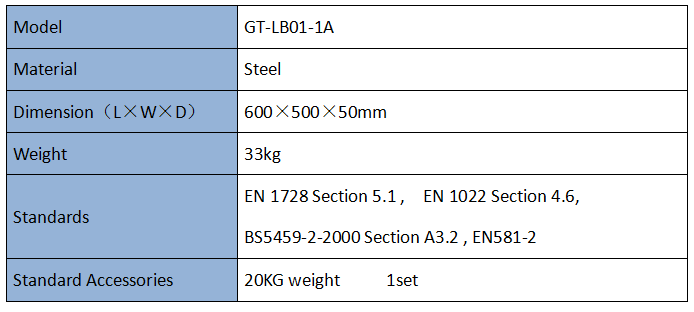

Key Specifications





Applications Industry

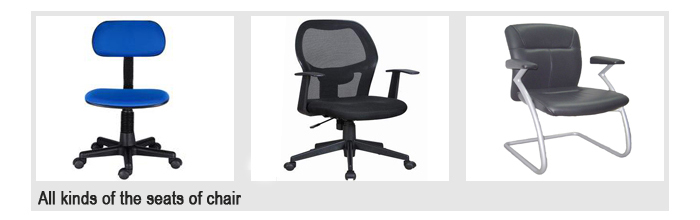

All kinds of seats with pedal of chair can be tested on the Loading Point Template
