Rotary Lobe Pumps for Soaps and Detergents for transfer purpose
As the leading
manufacturer of pumps in China, we have been on the road of Positive
displacement rotary lobe pumps for 17 years since 2001, and have overcome
one technical difficulty after another, obtain more than 30 patents. Bonve rotary

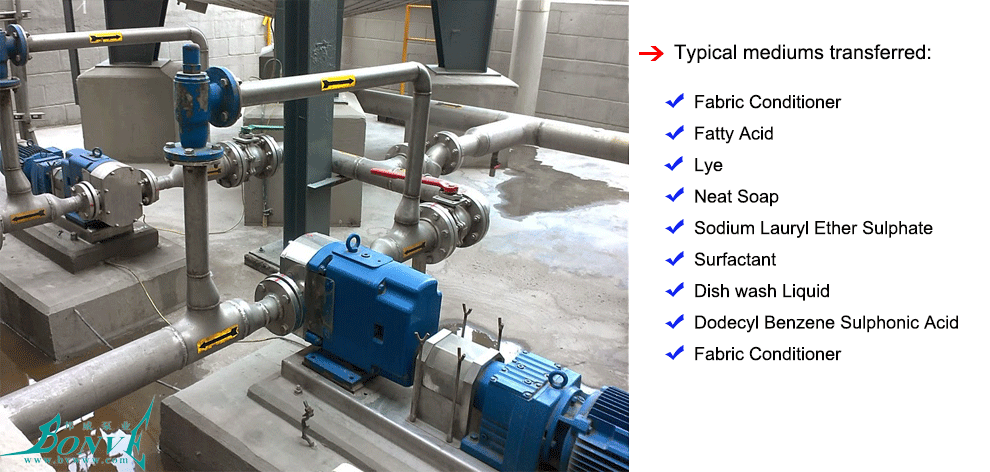

lobe pumps are to be found in numerous processes, where their reliable low
shear flow characteristics are ideally suited to the transfer of media such as
neat soap, Surfactant, Fabric
Conditioner. We select the pump according to your characteristics of medium and
condition of the technological requirements, bring you the best pump for your
critical process, satisfied by you and your customers.

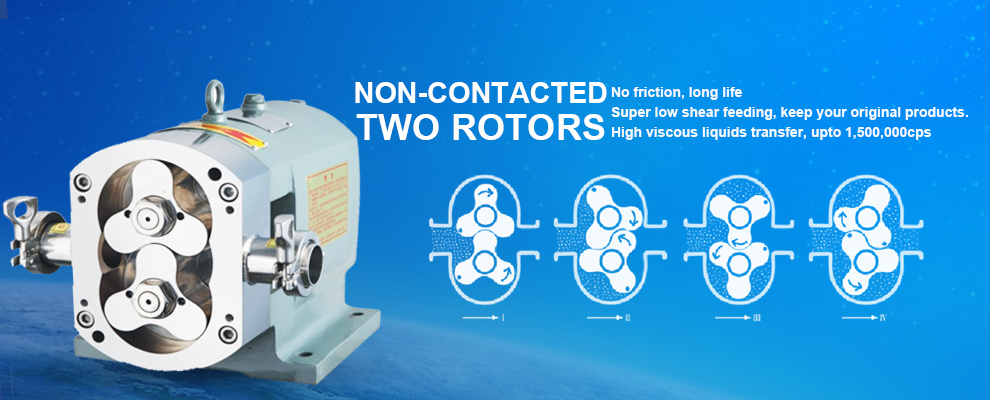

How Bonve pump works?
The even rotation of the rotor pair creates a vacuum on the
priming side of the pump, which can be defined by the direction of rotation of
the drive. This vacuum draws the liquid into the pump chamber. With further
rotation, the pumped medium is conveyed past the pump wall into the pressure
area. Up to six chamber charges are displaced with each drive rotation– depending on the rotor type. When the rotor is at a
standstill, the pump seals off almost completely.
What Bonve pumps advantage?
-
Gap is kept between the rotors and between the rotor and the pump body, no
friction, long life.
-
Simple assembling and disassembling, easy to maintenance and clean, strong
resistance to wearing.
-
High efficiency and energy-saving, low failure rate, reliable sealing and
low noise.
-
Capable to pump the viscous materials upto 1.5 million cps and pulp with
the solid volume of 60%.
-
Movable pumps can be used to pump canned medium, with intake vacuum of
0.08 Mpa.
Who used Bonve
pumps?
Bonve Pump main technical parameters
|
Model
|
Displace
-ment
(L/r)
|
Rotation
speed
(r/min)
|
Flow
rate
(M³/h)
|
Dis.
Pre.
(Mpa)
|
Electrical
power
(Kw)
|
Suc.
Pre.
(Mpa)
|
Dia. of inlet
and
outlet (mm)
|
|
25BV6 /12-2
|
0.15
|
20-600
|
2
|
0.1-1.2
|
1.1-2.2
|
-0.095
|
25
|
|
40BV6 /12-5
|
0.32
|
20-550
|
5
|
0.1-1.2
|
1.5-4
|
-0.095
|
40
|
|
50BV6 /12-10
|
0.65
|
20-550
|
10
|
0.1-1.2
|
2.2-7.5
|
-0.095
|
50
|
|
65BV6 /12-20
|
1.74
|
20-550
|
20
|
0.1-1.2
|
4-15
|
-0.095
|
65
|
|
80BV6 /12-30
|
2.48
|
20-550
|
30
|
0.1-1.2
|
5.5-22
|
-0.095
|
80
|
|
80BV6 /12-40
|
3.65
|
20-550
|
40
|
0.1-1.2
|
7.5-30
|
-0.095
|
100
|
|
125BV6 /12-50
|
4.60
|
20-550
|
50
|
0.1-1.2
|
11-45
|
-0.095
|
125
|
|
125BV6 /12-70
|
6.10
|
20-550
|
70
|
0.1-1.2
|
15-55
|
-0.095
|
125
|
|
125BV6 /12-80
|
7.63
|
20-550
|
80
|
0.1-1.2
|
18.5-75
|
-0.095
|
125
|
|
150BV6 /12-120
|
11.56
|
20-420
|
120
|
0.1-1.2
|
22-90
|
-0.095
|
150
|
|
150BV6 /12-150
|
14.22
|
20-420
|
150
|
0.1-1.2
|
37-110
|
-0.095
|
150
|
|
200BV6 /12-200
|
18.10
|
20-420
|
200
|
0.1-1.2
|
45-132
|
-0.095
|
200
|
|
250BV6 /12-250
|
22.92
|
20-420
|
250
|
0.1-1.2
|
55-160
|
-0.095
|
250
|
|
300BV6 /12-300
|
32.00
|
20-420
|
300
|
0.1-1.2
|
75-200
|
-0.095
|
300
|
How to choose Bonve
pumps?
|
Selection Guideline
|
|
Liquid
name:___________
|
|
Viscosity:_______cp Density:_______ Temperature:_____℃ PH
value:________
|
|
Solid content:_______ Max. size of particle:_______
|
|
Capacity: Max. required__________ L/H Working required__________ L/H
|
|
Discharge pressure: Max. required__________Mpa Working required__________ Mpa
|
|
Connection type required: Thread [ ] Clamp [ ]
|
|
Installation type: Fixed [ ] Movable [ ]
|
|
Voltage:____ V Frequency: _____Hz
|
|
Liquid contact material: SS304 [ ] 316 [ ] 316L [ ]
|
|
Special
request_____________________________________
|
|
Order qty.
|
We
are so pleased with interest into Our Bonve Rotary Lobe Pumps. Hope we
can work with you and solve your pumping problem during production. Contact Mr.
Hank Li with his mail bvsales1@bonvepumps.com for a pump solution.
