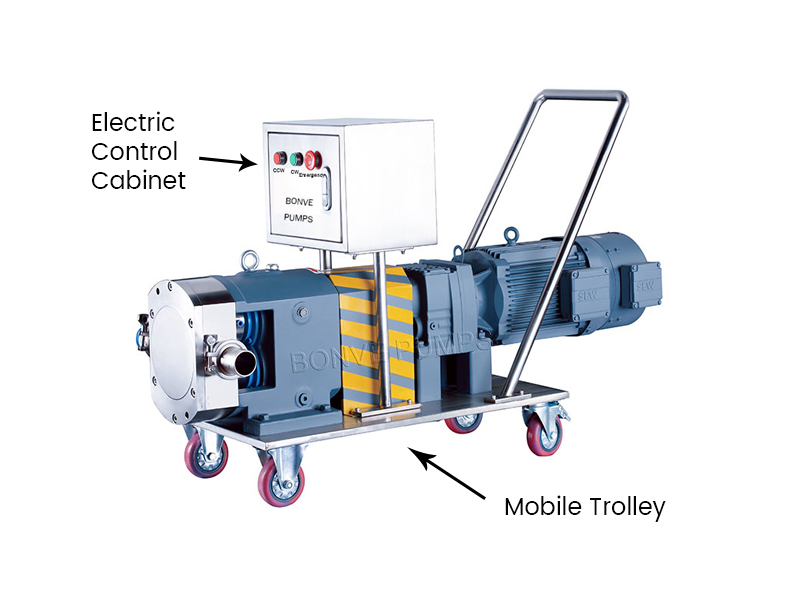

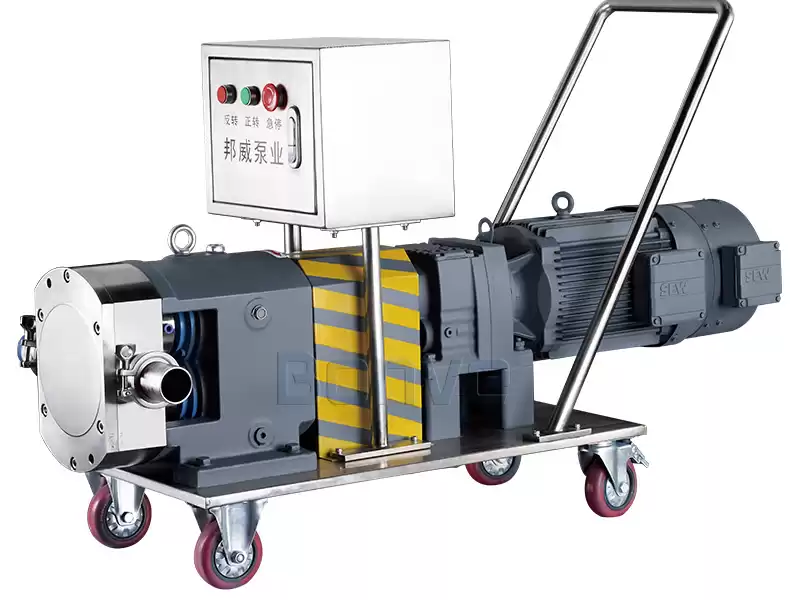

PUMP INTRODUCTION
Bonve movable
type lobe pump is
equipped with a mobile trolley and an electric control cabinet, which is mainly
used in occasions where the location of the site is uncertain. The electric
control cabinet can also be equipped with a frequency converter to adjust the
pump speed, so as to realize the flow control.
PUMP MAIN FEATURES
-
The all main
parts are made by CNC, which have high precision;
-
Simple
structure, easy to clean and maintaince;
-
Long service
life, reducing use cost;
-
Energy saving,
low noise;
-
Various of drive
method can meet customers’ requirement;
-
The
transportable medium viscosity is upto 1.5 million cp, and the slurry with a
solid content upto 70%;
-
It can transport
three-phase mixture materials such as vapor, liquld and solid.
WORKING PRINCIPLE
The lobe pump with mobile trolley adopts two lobe rotors,
which rotate synchronously driven by a pair of synchronous gear in the gearbox.
The rotors are driven by the main shaft and sub-shaft to rotate in a
synchronous reverse direction, which changes the pump capacity, builds up high
vacuum and discharge pressure, thus an efficient pumping is formed.
Bi-wing rotors diagram
Tri-wing rotors diagram
PUMP STRUCTURE
TECHNICAL PARAMETERS
|
Model
|
Displace
-ment
|
RPM
|
Flow
|
Dis. Pre.
|
Power
|
Vacuum
|
Port size
|
Max
viscosity
|
|
(L/r)
|
(r/min)
|
(m³/h)
|
(Mpa)
|
(kW)
|
(Mpa)
|
(mm)
|
(cp)
|
|
25BV12-05
|
0.06
|
10-1000
|
0-0.5
|
0-1.2
|
0.37-1.1
|
-0.080
|
25
|
1,500,000
|
40BV12-2
|
0.15
|
10-1000
|
0-2
|
0-1.2
|
0.75-2.2
|
-0.080
|
40
|
1,500,000
|
50BV12-5
|
0.32
|
10-800
|
0-5
|
0-1.2
|
1.5-4
|
-0.085
|
50
|
1,500,000
|
65BV12-10
|
0.65
|
10-600
|
0-10
|
0-1.2
|
2.2-7.5
|
-0.085
|
65
|
1,500,000
|
80BV12-20
|
1.74
|
10-500
|
0-20
|
0-1.2
|
4-15
|
-0.095
|
80
|
1,500,000
|
90BV12-30
|
2.60
|
10-500
|
0-30
|
0-1.2
|
5.5-22
|
-0.095
|
100
|
1,500,000
|
100BV12-40
|
3.65
|
10-500
|
0-40
|
0-1.2
|
7.5-30
|
-0.095
|
100
|
1,500,000
|
125BV12-50
|
4.60
|
10-500
|
0-50
|
0-1.2
|
7.5-37
|
-0.095
|
125
|
1,500,000
|
140BV12-70
|
6.10
|
10-500
|
0-70
|
0-1.2
|
11-45
|
-0.095
|
150
|
1,500,000
|
150BV12-80
|
7.63
|
10-500
|
0-80
|
0-1.2
|
11-55
|
-0.095
|
150
|
1,500,000
|
200BV12-120
|
11.56
|
10-400
|
0-120
|
0-1.2
|
15-75
|
-0.095
|
200
|
1,500,000
|
250BV12-150
|
14.22
|
10-400
|
0-150
|
0-1.2
|
18.5-90
|
-0.095
|
250
|
1,500,000
|
300BV12-200
|
20.80
|
10-300
|
0-200
|
0-1.2
|
22-110
|
-0.095
|
300
|
1,500,000
|
350BV12-300
|
32.60
|
10-250
|
0-300
|
0-1.2
|
45-160
|
-0.095
|
350
|
1,500,000
|
400BV12-400
|
50.40
|
10-250
|
0-400
|
0-1.2
|
55-200
|
-0.095
|
400
|
1,500,000
|
Note:
1. Tested medium: water. Your liquid's density, viscosity and temperature are necessary to supply when choose the pump.
2. Speed, flow rate, electrical power and pressure will be varified according to different liquid properties.
3. Port size can be changed as needed.
APPLICATIONS
-
Beverage
Industry: Beer,carbonated soft drinks, coffee liquor, fruit juice concentrates,
milk drinks, sugar solutions, wine, yeast slurries;
-
Confectionery
Industry: Biscuit cream, caramel, chocolate, cocoa butter, cocoa mass,
condensed milk, fat, fondant, glucose, high-boiled sugar syrup, jellies;
-
Dairy Industry:
Butter, cheese, cream, egg, ice cream, milk, quarg, whey, yoghurt;
-
Pharmaceutical
Industry: Blood, cell cultures, enzymes, ointments, protein solutions, syrups;
-
Prepared Foods
Industry: Additives, baby food, edible oils, fruit puree, meat chunks, jam,
petfood, sauces, soups, toppings;
-
Soap&Detergents
Industry: Dishwash liquid,
dodecylbenzene sulphonic acid, fabric conditioner, fatty acid, lye, neat
soap, sodium lauryl ether sulphate, surfactants
-
Sugar Industry: Glucose, high/low green syrup, liquid sugar, magma, massecuite,
molasses, sugar syrup, thick juice, treacle.
OUR STRENGTHS
Expert in manufacturing of rotary lobe pumps, it is worth to get your
truth.
Abundant parts in stock guarantees the delivery
time.
High precision processing machines to make
pumps, to make sure the supplied pumps are top-performance.
Strict inspection to guarantee the supplied are
high quality.
Certificate by
authority organization:
ISO9001:2015
approved
CE certified
