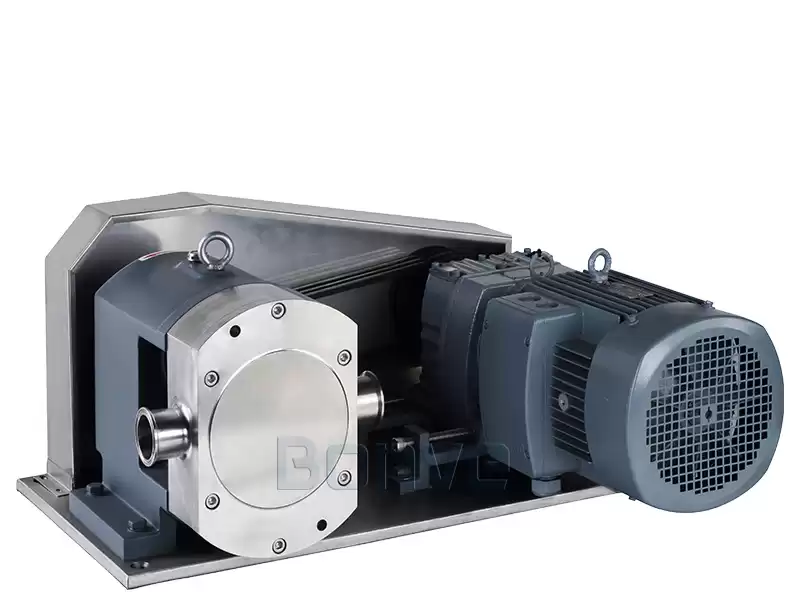

Lobe pumps with pulley driven

Thanks to the compact design, our pump can save space.

Description

PUMP INTRODUCTION

Pumps For High Viscosity Liquids

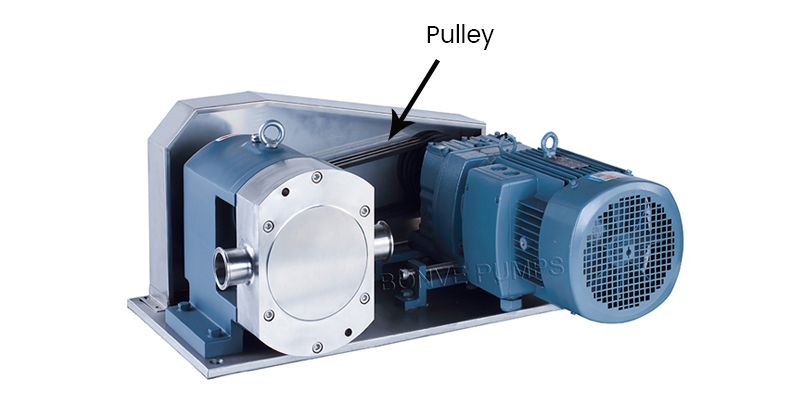

The pulley drive rotor pump is driving by a pulley connected. The pumps are mainly used in occasions where installation space is limited on site.

PUMP FEATURES

We pursue excellence, more than ten years of dedicated research and development, only to allow customers to obtain long service life, high precision, strong versatility, customized lobe pump.Below are the positive displacement lobe pumps main features.

Long service life: gap is kept between the rotor and the rotor, the rotor and the pump body; no friction; simple assembly and disassembly, easy maintenance and cleaning, and few wearing parts; energy saving, low failure rate, reliable sealing and low noise.

High Viscosity Fluid Pump

High precision: all main parts including the pump chamber, rotors, gear box, shafts, bearings are processed by CNC.

Strong versatility: we offer the targeted seal type and rotor type as per the specific product to be transferred. The rotors and seal types are interchangeable.

Customization: according to the customers installation condition, pump port direction can be horizontal and vertical. And the connection types can be screw and clamp type, etc.

TECHNICAL PARAMETERS

Model	Displace -ment	RPM	Flow	Dis. Pre.	Power	Vacuum	Port size	Max viscosity
	(L/r)	(r/min)	(m³/h)	(Mpa)	(kW)	(Mpa)	(mm)	(cp)
25BV12-05	0.06	10-1000	0-0.5	0-1.2	0.37-1.1	-0.080	25	1,500,000
40BV12-2	0.15	10-1000	0-2	0-1.2	0.75-2.2	-0.080	40	1,500,000
50BV12-5	0.32	10-800	0-5	0-1.2	1.5-4	-0.085	50	1,500,000
65BV12-10	0.65	10-600	0-10	0-1.2	2.2-7.5	-0.085	65	1,500,000
80BV12-20	1.74	10-500	0-20	0-1.2	4-15	-0.095	80	1,500,000
90BV12-30	2.60	10-500	0-30	0-1.2	5.5-22	-0.095	100	1,500,000
100BV12-40	3.65	10-500	0-40	0-1.2	7.5-30	-0.095	100	1,500,000
125BV12-50	4.60	10-500	0-50	0-1.2	7.5-37	-0.095	125	1,500,000
140BV12-70	6.10	10-500	0-70	0-1.2	11-45	-0.095	150	1,500,000
150BV12-80	7.63	10-500	0-80	0-1.2	11-55	-0.095	150	1,500,000
200BV12-120	11.56	10-400	0-120	0-1.2	15-75	-0.095	200	1,500,000
250BV12-150	14.22	10-400	0-150	0-1.2	18.5-90	-0.095	250	1,500,000
300BV12-200	20.80	10-300	0-200	0-1.2	22-110	-0.095	300	1,500,000
350BV12-300	32.60	10-250	0-300	0-1.2	45-160	-0.095	350	1,500,000
400BV12-400	50.40	10-250	0-400	0-1.2	55-200	-0.095	400	1,500,000

Note:
1. Tested medium: water. Your liquid's density, viscosity and temperature are necessary to supply when choose the pump.
2. Speed, flow rate, electrical power and pressure will be varified according to different liquid properties.
3. Port size can be changed as needed.

APPLICATIONS

Beverages: Beer,carbonated soft drinks, coffee liquor, fruit juice concentrates, milk drinks, sugar solutions, wine, yeast slurries;
Confectioneries: Biscuit cream, caramel, chocolate, cocoa butter, cocoa mass, condensed milk, fat, fondant, glucose, high-boiled sugar syrup, jellies;
Dairies: Butter, cheese, cream, egg, ice cream, milk, quarg, whey, yoghurt;
Pharmaceutica: Blood, cell cultures, enzymes, ointments, protein solutions, syrups;
Prepared Foods: Additives, baby food, edible oils, fruit puree, meat chunks, jam, petfood, sauces, soups, toppings;
Consumer products: Soap&Detergents, AES, LAS, AOS, K12, glycerin, fatty alcohol, bath shampoo, skin cream, shampoo, detergent, tppthpaste, liquid soap, washing power slurry, etc.
Sugar: Glucose, high/low green syrup, liquid sugar, magma, massecuite, molasses, sugar syrup, thick juice, treacle.
