Product Name
698-2700MHz High Gain 10dBi Log PeriodicAntennas
Product Features
◆ 698-2700MHz Log Periodic Antennas with Wide Frequency Band
◆ 2G/3G/4G/LTE Coverage
◆ Low VSWR
◆ High Gain with 10dBi
◆ Widely used for In-building Solutions
Log Periodic Antenna Operates From 698 MHz to 2700 MHz With a Nominal 10 dBi Gain N Female Input Connector
Antenna from Maniron is featured in our extensive in-stock radio frequency directional antenna selection.It has a frequency range of and 10 dBi gain.
Technical &Mechanical Specifications
|
Model No.
|
MN-AT-727-N
|
|
Freq(MHz)
|
698~960/1710~2700
|
|
Gain-dBi
|
8/10
|
|
Vertical Beamwidth- - °
|
60/55
|
|
Horizontal Beamwidth- - °
|
90/70
|
|
F/B Ratio -dB
|
≥18
|
|
VSWR
|
≤1.5
|
|
Nominal Impedance- Ω
|
50
|
|
Polarization
|
Vertical
|
|
Maximum Power-W
|
100
|
Connector
|
N female
|

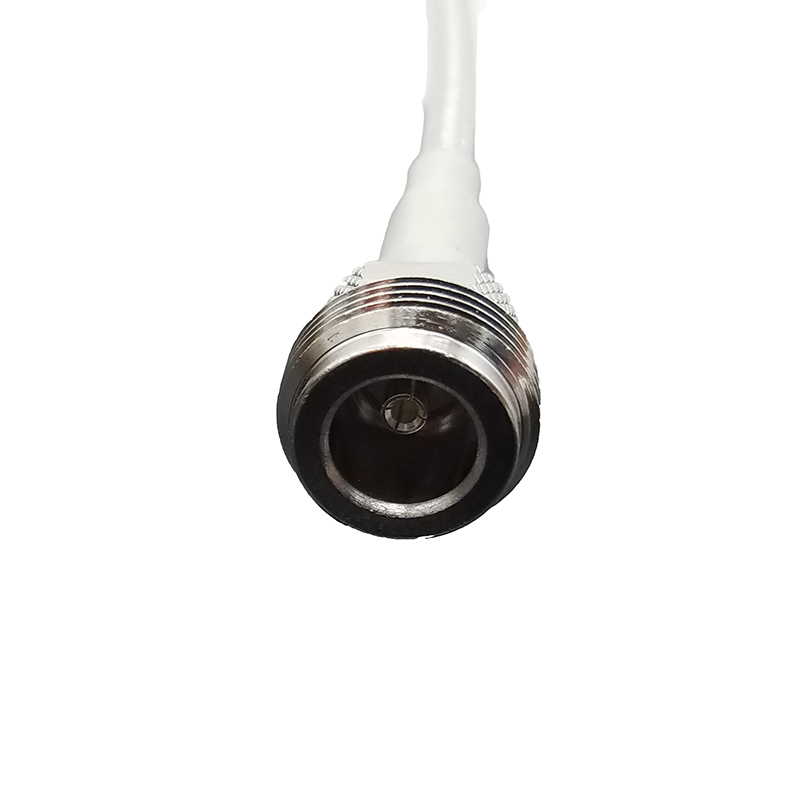

Products Pictures
