Introduction:

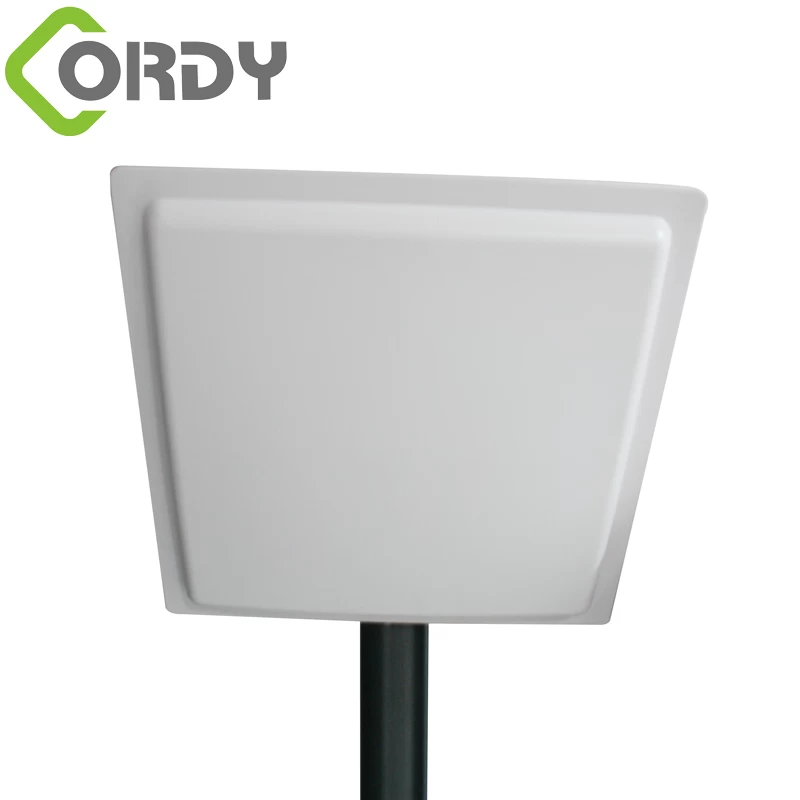

The UHF RFID Middle Range Reader is a high
performance UHF integrated reader .Based on proprietary efficient digital
signal processing algorithm, it supports fast tag read/write operation with
high identification rate. It can be widely applied in many RFID application
systems such as logistics, access control( Door Control, Car control
.etc.) , and anti-counterfeit and industrial production process, control
system.
|
Type:
|
UHF Passive Middle Range Integrated reader
|
|
Dimensions:
|
235x235x57mm
|
|
Net Weight:
|
2,500g
|
|
Operating Temp:
|
-10 ~ +60 degree
|
|
Storage Temp:
|
-25 ~ +80 degree
|
|
Interface:
|
RS232, RS485, Wiegand26
|
|
Indicator:
|
Buzzer
|
|
Power Supply:
|
+DC 9V (equipped with power adaptor)
|
|
Frequency Range:
|
902-928mhz
|
|
Protocols:
|
ISO18000-6B, ISO18000-6C
|
|
Work Mode:
|
FHSS hopping and fixed frequency
|
|
RF Power:
|
0~30dBm, adjustable set by software
|
|
Antenna:
|
Built-in 8dbi circularly polarized antenna
|
|
Read Range:
|
5M, tag and environment dependent
|
|
Vehicle Moving Speed:
|
80Km/h
|
|
Software:
|
Provide SDK,DLL and Demonstration Software,
|
|
sample code to facilitate further development.
|
