WinCE6.0 OS Model: U9150A
Android4.3 OS Model: U9151A
Size: 192x73.8x29/85mm(Host)
90x65x25mm(Handle)
598g(WITH Handle)
|
ITEM
|
TYP
|
REMARK
|
|
RFID Antenna
|
External
|
Circular Polarization Antenna
|
|
RFID Reading Distance
|
> 6m
|
Effective distance depends on protocol,
antenna, tag and working environment
|
|
Operating System (OS)
|
Microsoft Windows CE 6.0 \ Android 4.3
|
English \ Chinese
|
|
CPU
|
SAMSUNG Cortex-A8
|
1GHz
|
|
Memory
|
ROM 512MB
RAM 4GB
|
Expandable by SD card with maximum capacity
to 32GB
|
|
Display Resolution
|
3.5in. TFT-LCD VGA(480x640)
Color LCD Screen \ 3.5in.
QVGA(240x320)(WinCE OS)
|
Industrial-strength capacitive touch
screen, support multi-touch
|
|
Dimensions
L x W x T
|
192 x 73.8 x 29/85 mm
90 x 65 x 25 mm
|
Body
Handle
|
|
Weight
|
538 g
598 g
|
Including battery
Including battery & handle
|
|
Keyboard
|
mixed Alphabetic and Numeric Key,
Arrow key, Scan key, Function key, Side Key
|
Support handwriting input
|
|
1D Laser Scanner
|
Support
|
Optional
|
|
2D COMS Scanner
|
Support
|
Backward 1D
Optional
|
|
WLAN / Wi-Fi
|
Support
|
Standard equipped
|
|
GSM / GPRS
|
Support
|
Optional
|
|
3G
|
Support
|
Optional
WCDMA
|
|
Bluetooth
|
Bluetooth 2.1 with EDR
|
Standard equipped
|
|
GPS
|
Support
|
Optional
Android version do not support GPS
|
|
Camera
|
Support
|
Optional
|
|
Phone Capability
|
Built-in speaker, MIC, receiver
|
Optional Stereo headphone
(jack: 3.5mm)
|
|
Main Battery
|
3.8V 4500mAh
|
Li-ion Battery
|
|
Spare Battery
|
290 mAh
|
RTC battery
Built-in
|
|
Standard
Communication
|
USB, RS232
|
|
|
Environmental sealing
|
IP64
|
electronic enclosure, keypad
except display
|
|
Storage temperature
|
-30° C ~ 60° C
|
|
|
Charging temperature
|
0° C ~ 40° C
|
|
|
Operating temperature
|
-20° C ~ 50° C
|
|
|
Humidity
|
5% ~ 95%
|
Non-condensing
|
GENERAL DESCRIPTION

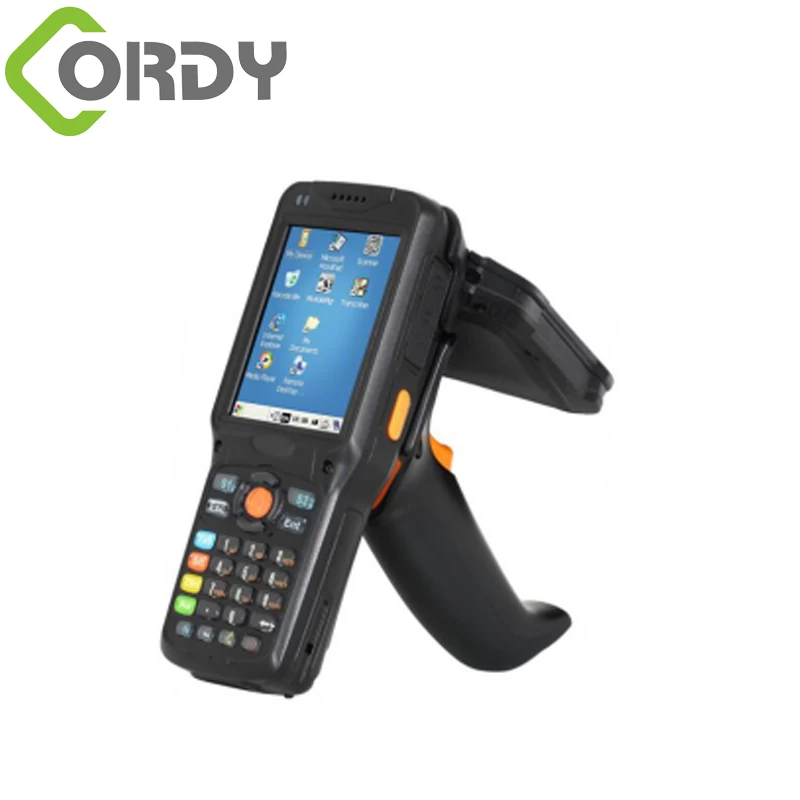

UHF High Performance Handheld Reader RRU9150A
\ RRU9151A series are designed upon fully self-intellectual property. Based on
proprietary efficient digital signal processing algorithm, RoyalRay UHF
Handheld Readers support fast tag read/write operation with high identification
rate. They can be widely applied in many RFID application systems such as
Logistics, Personnel Identification, Access Control, Anti-counterfeit, Quality
Supervision Industrial Production Process Control System and Assets Management,
etc.
840~960MHz frequency band (frequency
customization optional);
Based on R2000 design, excellent multi-tag anti-collision operation,
fully support ISO18000-6C(EPC C1G2) , ISO18000-6B protocol tag;
RFID circular polarization antenna;
Provide 1D*, 2D Barcode* for choice;
Comfortable, convenience and professional scanning handle*, doubling up work
efficiency;
Provide GPRS / GSM*, 3G(WCDMA)*, Bluetooth, Wi-Fi for choice;
Provide Camera* for choice for choice;
Provide USB, RS232 communication port;
Provide Android4.3 & WinCE6.0 operating system for choice;
Provide SDK and demo software to facilitate further development.
