GEM I GM Series batteries are designed at a larger size and higher capacity than GS Series and carrying more energy power to support more-power-requiring applications. The batteries are using GEM selected models of Pb-Ca-Sn alloyed plates for assembly and adopt AGM technology, complied with IEC60896-21/22.
GEM I GM Series batteries are perfect for commercial power reserve and storage systems. The high-energy-containing could greatly support to high-performance UPS systems, Data Center, Solar Power systems and Telecom Power applications, especially the 12V batteries with High-Rate (HR**) marked models are doing great for critical medical and UPS application, assuring electric power reserve and stable supply. Benefited from the completely sealing structure and high-efficiency of the internal gas recombination, the GEM I GM Series batteries are also doing good at Motive Power section, working as the main motive-power source to applications:
● 2-Wheels Electric Bikes
● 3-Wheels Electric Tricycle
● 4-Wheels Electric Car (low speed)
● Golf Cart
● Electric Buggy (tourist and sightseeing buggy, security patrol buggy)
● Electric Wheelchair
● Floor-Cleaning Machine, Electric Floor-Sweeper
● Electric Scooter
|
GEM I GM
Series
|
Voltage
(V)
|
Capacity
(AH/10HR)
|
Dimension (in)
|
Weight
±5%
(lbs)
|
Dimension (mm)
|
Weight
±5%
(kgs)
|
Terminal
|
|
L (in)
|
W (in)
|
H (in)
|
TH (in)
|
L (mm)
|
W (mm)
|
H (mm)
|
TH (mm)
|
|
±0.04
|
±0.04
|
±0.08
|
±0.08
|
±1
|
±1
|
±2
|
±2
|
|
GM 12-30
|
12
|
31
|
7.64
|
5.24
|
6.66
|
6.70
|
22.05
|
194
|
133
|
169
|
170
|
10.00
|
M6*12
|
|
GM 12-36 HR**
|
12
|
36
|
7.64
|
5.24
|
6.66
|
6.70
|
25.35
|
194
|
133
|
169
|
170
|
11.50
|
M6*12
|
|

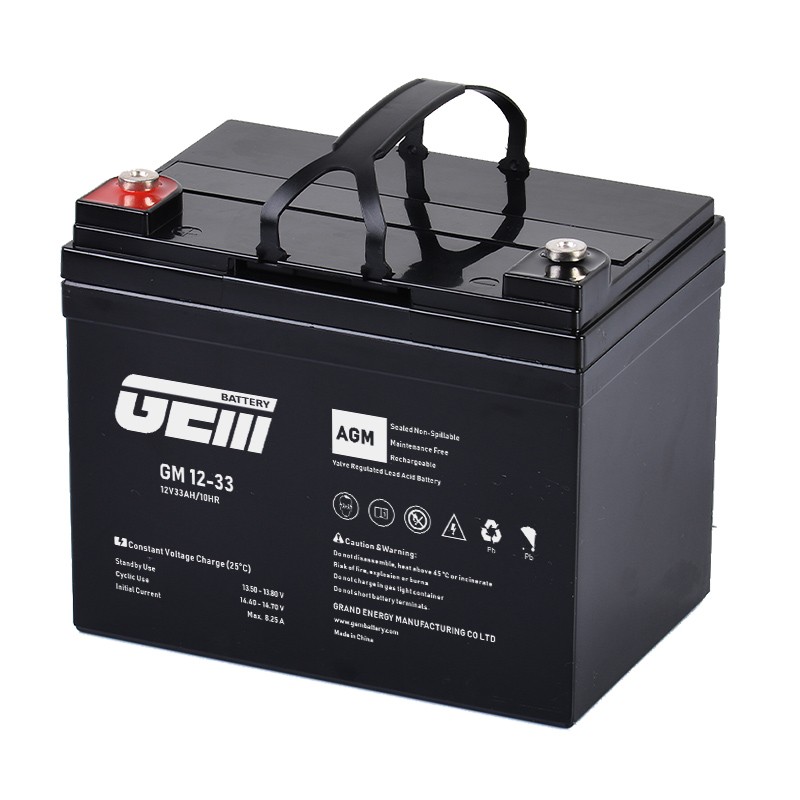

GM 12-33
|
12
|
33
|
7.72
|
5.24
|
6.34
|
6.70
|
23.81
|
196
|
133
|
161
|
170
|
10.80
|
M6*12
|
|
GM 12-38
|
12
|
38
|
7.72
|
6.50
|
6.62
|
6.62
|
28.22
|
196
|
165
|
168
|
168
|
12.80
|
M6*16
|
|
GM 12-40
|
12
|
40
|
7.72
|
6.50
|
6.62
|
6.62
|
29.10
|
196
|
165
|
168
|
168
|
13.20
|
M6*16
|
|
GM 12-42
|
12
|
42
|
7.72
|
6.50
|
6.62
|
6.62
|
30.42
|
196
|
165
|
168
|
168
|
13.80
|
M6*16
|
|
GM 12-45
|
12
|
45
|
7.72
|
6.50
|
6.62
|
6.62
|
31.08
|
196
|
165
|
168
|
168
|
14.10
|
M6*16
|
|
GM 12-48 HR**
|
12
|
48
|
7.72
|
6.50
|
6.62
|
6.62
|
32.19
|
196
|
165
|
168
|
168
|
14.60
|
M6*16
|
|
GM 12-50
|
12
|
50
|
9.06
|
5.40
|
8.27
|
8.47
|
34.17
|
230
|
137
|
210
|
215
|
15.50
|
M6*16
|
|
GM 12-55
|
12
|
55
|
9.06
|
5.40
|
8.27
|
8.47
|
36.38
|
230
|
137
|
210
|
215
|
16.50
|
M6*16
|
|
GM 12-55 HR**
|
12
|
55
|
9.06
|
5.40
|
8.27
|
8.47
|
38.58
|
230
|
137
|
210
|
215
|
17.50
|
M6*16
|
|
GM 12-60
|
12
|
60
|
13.79
|
6.62
|
7.05
|
7.05
|
41.89
|
350
|
168
|
179
|
179
|
19.00
|
M6*16
|
|
GM 12-65
|
12
|
65
|
13.79
|
6.62
|
7.05
|
7.05
|
46.30
|
350
|
168
|
179
|
179
|
21.00
|
M6*16
|
|
GM 12-65 HR**
|
12
|
65
|
13.79
|
6.62
|
7.05
|
7.05
|
51.81
|
350
|
168
|
179
|
179
|
23.50
|
M6*16
|
|
GM 12-65C
|
12
|
65
|
13.04
|
6.86
|
6.50
|
6.62
|
45.19
|
331
|
174
|
165
|
168
|
20.50
|
M6*16
|
|
GM 12-60B
|
12
|
60
|
10.24
|
6.62
|
8.39
|
8.51
|
40.79
|
260
|
168
|
213
|
216
|
18.50
|
M6*16
|
|
GM 12-65B
|
12
|
65
|
10.24
|
6.62
|
8.39
|
8.51
|
44.09
|
260
|
168
|
213
|
216
|
20.00
|
M6*16
|
|
GM 12-75
|
12
|
75
|
10.24
|
6.62
|
8.39
|
8.51
|
47.40
|
260
|
168
|
213
|
216
|
21.50
|
M6*16
|
|
GM 12-80
|
12
|
80
|
10.24
|
6.62
|
8.39
|
8.51
|
49.60
|
260
|
168
|
213
|
216
|
22.50
|
M6*16
|
|
GM 12-80 HR**
|
12
|
80
|
10.24
|
6.62
|
8.39
|
8.51
|
51.81
|
260
|
168
|
213
|
216
|
23.50
|
M6*16
|
|
GM 12-90
|
12
|
90
|
12.02
|
6.58
|
8.27
|
8.39
|
60.63
|
305
|
167
|
210
|
213
|
27.50
|
M6*16
|
|
GM 12-100 HR**
|
12
|
100
|
12.02
|
6.58
|
8.27
|
8.39
|
63.93
|
305
|
167
|
210
|
213
|
29.00
|
M6*16
|
|
GM 12-100B
|
12
|
100
|
13.00
|
6.82
|
8.55
|
8.67
|
63.93
|
330
|
173
|
217
|
220
|
29.00
|
M8*16
|
|

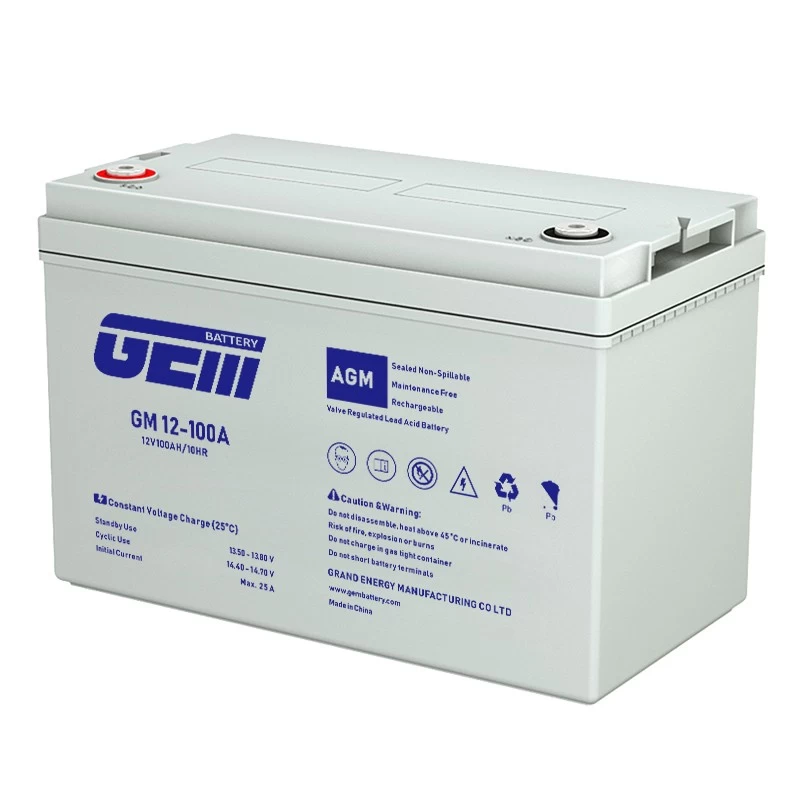

GM 12-100A
|
12
|
100
|
13.00
|
6.82
|
8.55
|
8.67
|
67.90
|
330
|
173
|
217
|
220
|
30.80
|
M8*16
|
|
GM 12-105 HR**
|
12
|
105
|
13.00
|
6.82
|
8.55
|
8.67
|
71.65
|
330
|
173
|
217
|
220
|
32.50
|
M8*16
|
|
GM 12-120
|
12
|
120
|
16.00
|
6.82
|
8.20
|
9.30
|
79.37
|
406
|
173
|
208
|
236
|
36.00
|
M8*16
|
|
GM 12-150
|
12
|
145
|
19.15
|
6.74
|
9.50
|
9.57
|
100.31
|
486
|
171
|
241
|
243
|
45.50
|
M8*16
|
|

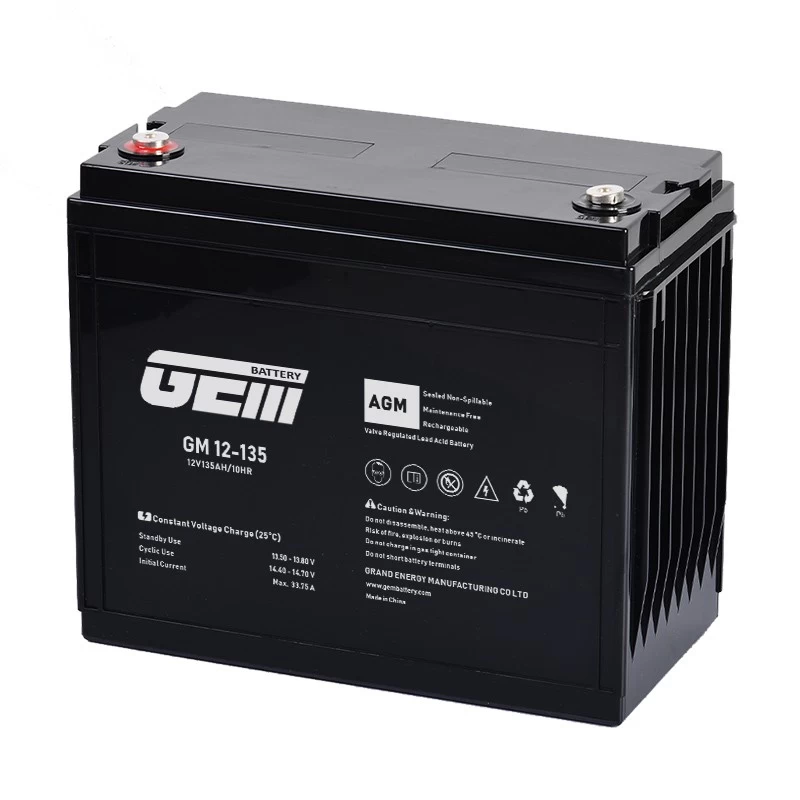

GM 12-135
|
12
|
135
|
13.44
|
6.78
|
11.15
|
11.27
|
92.59
|
341
|
172
|
283
|
286
|
42.00
|
M8*16
|
|
GM 12-150 HR**
|
12
|
150
|
13.44
|
6.78
|
11.15
|
11.27
|
98.10
|
341
|
172
|
283
|
286
|
44.50
|
M8*16
|
|
GM 12-200B
|
12
|
200
|
20.61
|
9.46
|
8.63
|
8.79
|
132.28
|
523
|
240
|
219
|
223
|
60.00
|
M8*16
|
|

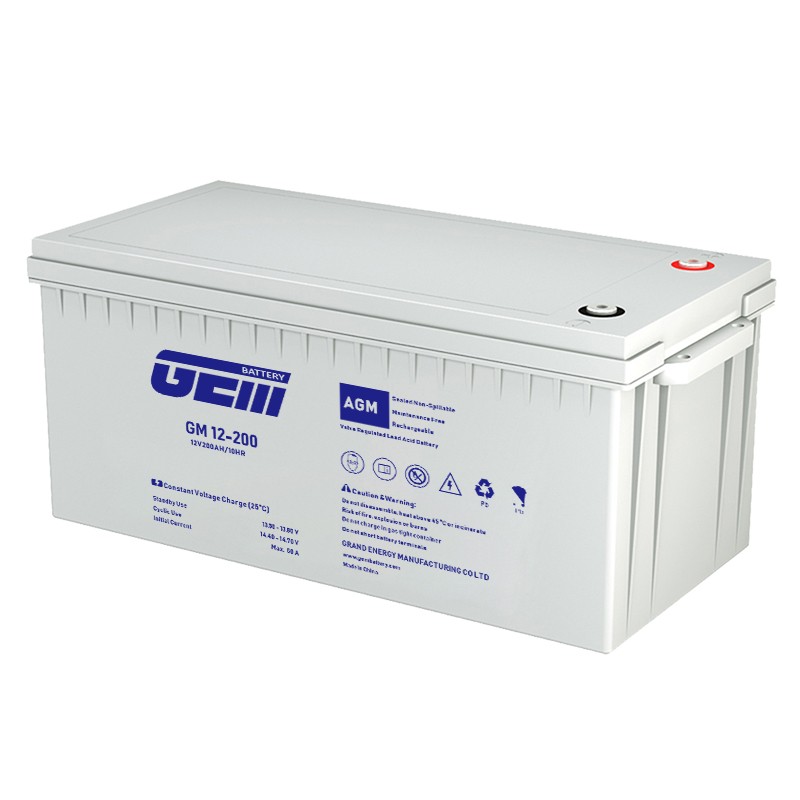

GM 12-200
|
12
|
200
|
20.61
|
9.46
|
8.63
|
8.79
|
136.69
|
523
|
240
|
219
|
223
|
62.00
|
M8*16
|
|
GM 12-200A
|
12
|
200
|
20.61
|
9.46
|
8.63
|
8.79
|
143.30
|
523
|
240
|
219
|
223
|
65.00
|
M8*16
|
|
GM 12-230A
|
12
|
230
|
20.53
|
10.60
|
8.04
|
8.23
|
147.71
|
521
|
269
|
204
|
209
|
67.00
|
M8*16
|
|
GM 12-230B
|
12
|
230
|
20.53
|
10.60
|
8.67
|
8.83
|
141.09
|
521
|
269
|
220
|
224
|
64.00
|
M8*16
|
|
GM 12-250
|
12
|
250
|
20.53
|
10.60
|
8.67
|
8.83
|
152.12
|
521
|
269
|
220
|
224
|
69.00
|
M8*16
|
|
GM 12-250A
|
12
|
250
|
20.53
|
10.60
|
8.67
|
8.83
|
159.83
|
521
|
269
|
220
|
224
|
72.50
|
M8*16
|
To download the data sheet of specific model, please Contact us
