Long life span 100 million shots 808nm diode laser hair removal machine

OD-D20 808nm Laser hair removal machine transmits 1200w powerful laser light into hair follicle, fast and permanently remove hair. Offering 2 years warranty for the handpiece, with 72 hours non-stop working time.


  • FunctionPainless and permanent hair removal on whole body
  • Laser Type808nm diode laser
  • Wavelength808nm
  • Power100J
  • Frequency1-10Hz
  • Voltage220VAC /50 - 60 Hz(110VAC optional)
  • Screen8 inch touched screen
  • Cooling SystemTEC+Red copper Radiator+Fan+Water cycle cooling
  • Spots Diameter12mm*12mm
  • Pulse Width10ms
  • Dimension120*54*69cm
  • CertificateMedical CE & ISO13485
  • Light Source Type808nm diode laser
  • Energy1200w

Powerful 1200w Painless 808nm Diode Laser Hair Removal Machine with CE


Strong 1200w diode laser, fast and permanent hair removal

Germany imported bars are equipped in 808nm diode laser hair removal machine handle. It sends out 1200w powerful laser energy on skin to remove the hair fast and permanently.


808nm diode laser machine


Working Parameters

Laser type 808nm Diode Laser Hair Removal Machine
Wavelength 808nm+/- 10nm
Cooling Method of Optical Laser Advanced Conduction Cooling Mode
Pulse Width 10ms
Repetition Rate 1Hz~10 Hz
Energy Fluence 100J/cm2
Beam Type Collimated
Skin Cooling TEC +Sapphire (2°C- 5°C) proper cooling
Spot size 12mm*12mm
Laser Cooling Liquid Distilled Water
Handlepiece Flow Rate 2-3 L/min
Handpiece Life Time 2 years warranty, 100Million shots
Environment Temperature 5~28°C
Environment Moisture < 80%
Package Diemention 120*54*69 cm
Input VAC 220VAC /50 - 60 Hz(110VAC optional)


808nm diode laser hair removal machine


808nm Diode Laser Hair Removal Machine Advantages

. High quality handpiece:

1. Adopting 1200w Germany imported laser Bars

2. Long lift span with 100 million shots, 2 years warranty

3. No burning handpiecing - As its waterproof design and advanced conduction cooling system

4. Over 72 hours non-stop working time

5. With TEC and sapphire cooling technology, giving comfortable hair removal


. Taiwan famous brand power supply

This is the best power supply in the market, ensure stable and enough energy for the machine

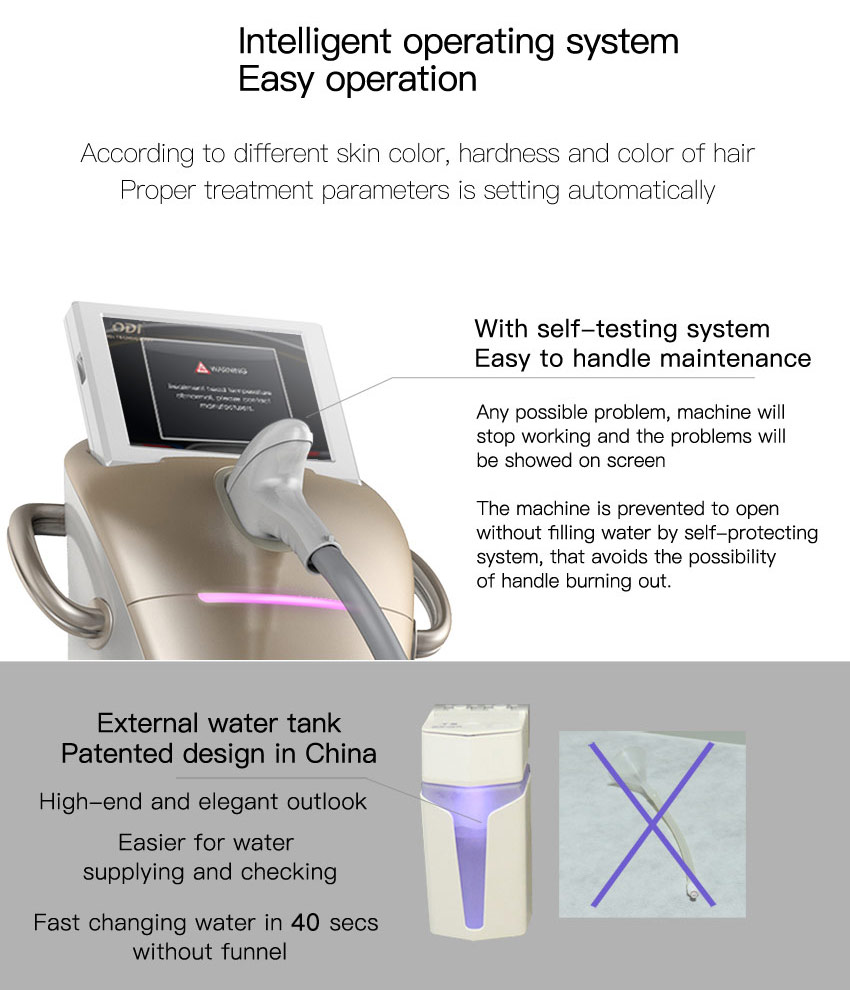

. Self-detection brings easier maintenance

Self-testing system is used in ODI 1200W 808nm diode laser machine. It helps to avert breakdown caused by the wrong operation which would reduce the rate of maintenance. Meanwhile it shows the problems on screen, which is easy for maintenance.


. High quality spare parts in professional diode laser hair removal machine

1.Unique designed external water tank in China

Fast changing water within 40 secs without funnel, easier for water checking and supplying

2. Qualified and fast connection

With USA CPC imported handle connection, greatly prevent water spilled. Rotating design gives fast connecting and disconnecting.

3. 4 in 1 cooling system

TEC semiconductor cooling system + water recycling system with Taiwan imported water pump + fan cooling with Japan imported customized axial fan + red copper radiator cooling

4. Medical used wheel

Noiseless design, 360 degree rotating and lockable design wheel. Easy moving, easy stopping.

808nm diode laser machine

Powerful 1200w painless 808nm diode laser hair removal machine manufacturers with CE


Working Principle


Powerful 1200w painless 808nm diode laser hair removal machine manufacturers with CE

Treatment of 808nm diode laser hair removal machine
  • Painless and permanent hair removal
  • Remove hair on skin color
  • Remove hair on whole body, including arm, leg, armpit, face, back and bikini area etc.
