Long Lifespan Front Terminal Battery 12v 200ah

High Reliability and Quality lead acid battery with Longer Service Life , it is the best choice of solar system

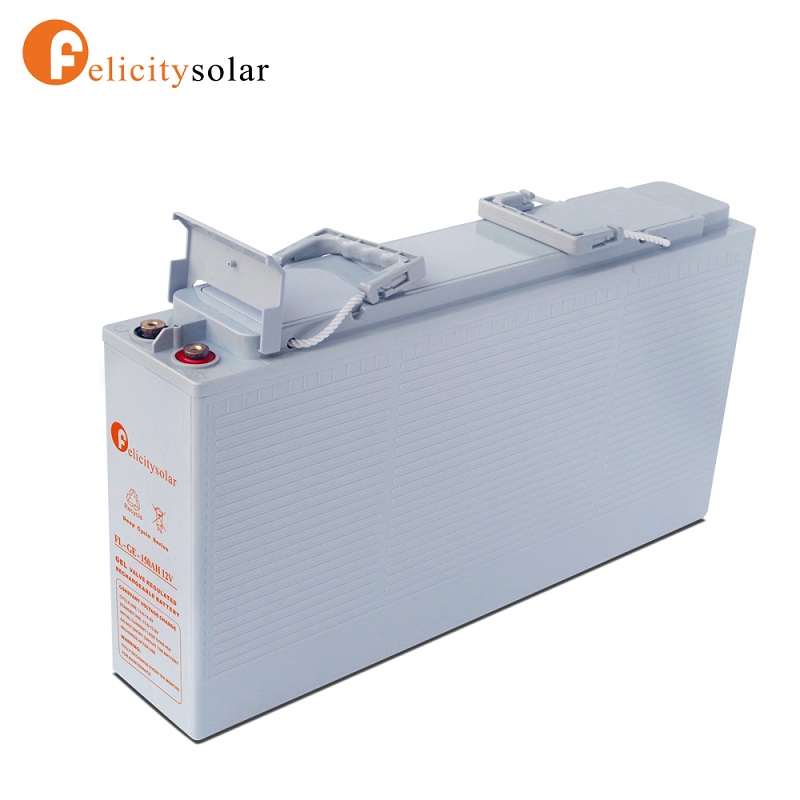

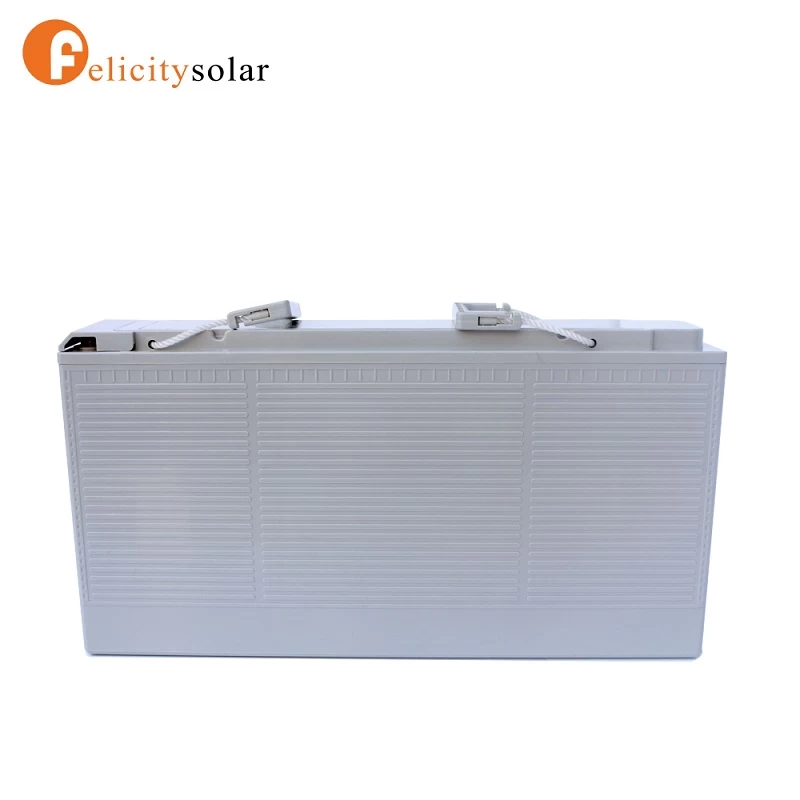

12V 200AH Front Terminal Battery

Product Advantages:

Maintenance-Free ,Absorbent Glass Mat Technology
Low Self Discharge
Long Designed service Life
Excellent Discharge Performance
Environment Friendliness
Wide suitability of ambient temperature range


Data Sheet

Model

FL-GE-100AH

FL-GE-150AH

FL-GE-200AH

Cells Per Unit

6

Voltage Per Unit

12

Capacity

100Ah @10hr-rate to 1.80V per

cell @ 25℃

150Ah @10hr-rate to 1.80V per

cell @ 25℃

200Ah @10hr-rate to 1.80V per

cell @ 25℃

Weight

31.0KG

43.5KG

61.0KG

Max.

Discharge Current

1000A(5 sec)

1500A(5 sec)

1000A(5 sec)

Internal Resistance

Approx. 5.5mΩ

Approx. 5.0 mΩ

Approx. 4.5 mΩ

Recommended Maximum Charging Current Limit



30A



45A

 60A

Operating Temperature Range

Discharge: -20℃~60℃   Charge:0℃~50℃    Storage:-20℃~60℃

Normal Operating Temperature Range

25℃ ± 5 ℃

Float charging Voltage

13.6 to 13.8V DC/unit Average at 25℃

Equalization and Cycle Service

14.4to 14.6V DC/unit Average at 25℃

Self Discharge

Front triminal batteries can be stored for more than 6 months at 25℃. Self-discharge ratio less than 3% per month at 25℃. Please charge batteries before using.

Size

410*109*293MM

550*110*290MM

550*125*317MM

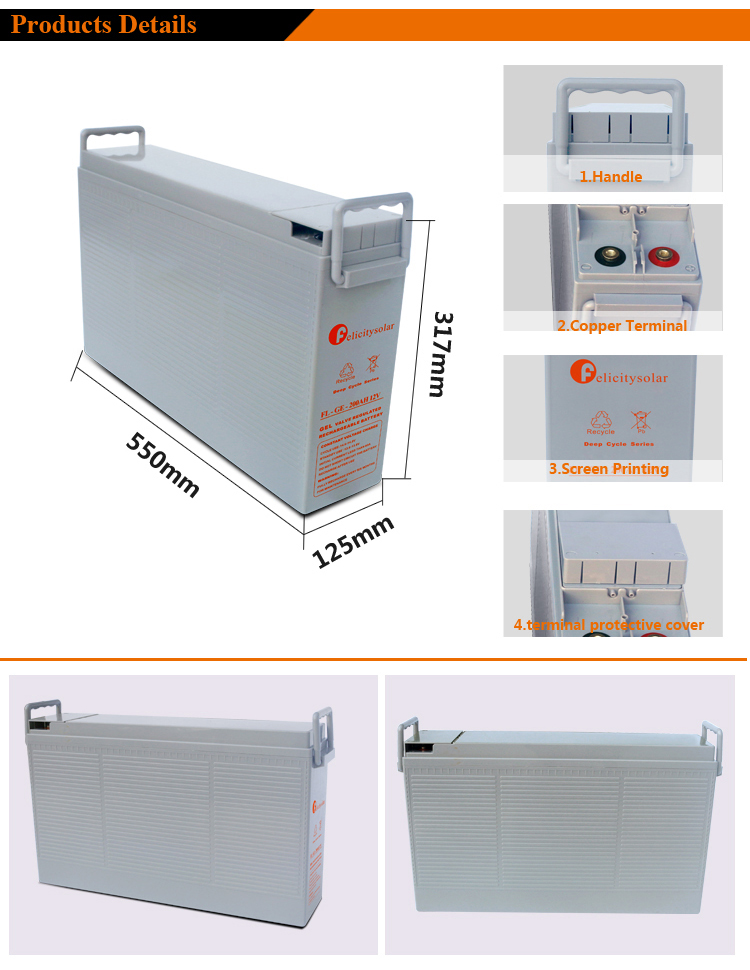

Product Details
